The stop button can be used to stop the test. Please note that it takes time to discharge and
stop the test
WARNING!
After measurement stop, it takes time to discharge the test object!
Wait until the device mode changes to safe mode before any other
action!
10.3.1 Winding Resistance Interval Settings

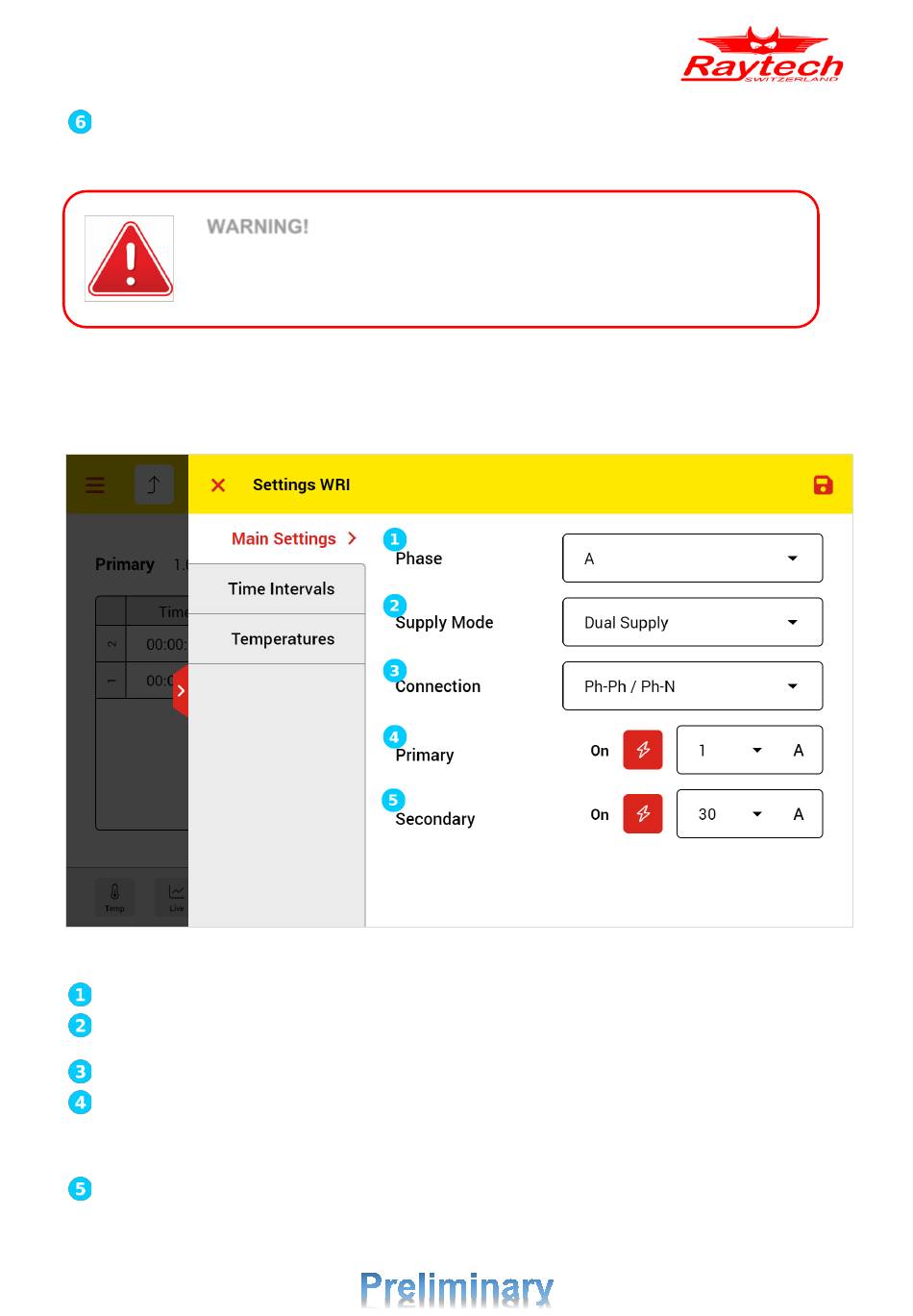

Figure 63 shows the winding resistance interval main settings.
To select which phase to test
To measure both Primary and Secondary simultaneously with two power supply or to select
which side to measure with one power supply
To select test phase to phase or phase to neutral measurement when possible
To select the current that injects into the primary winding side and also to turn On or turn Off
the power supply for the primary side. It is also possible to select "Charge" mode. In charge
mode, the power supply injects current to the primary side to increase the transformer
charging speed. But no resistance will be measured
To select the current that injects into the secondary winding side and also to turn On or turn
Off the power supply for the secondary side
90297-0.24 Instruction Manual mini-ATOS
Figure 63: Winding resistance interval main settings
Preliminary
Page 80 of 125
