Figure 64 shows the time intervals settings.
To set the time duration between each two measurement points
To set the number of measuring points
Total measurement duration which is calculated by timing measuring interval and measuring
points
To set the interval time from Start Time instead of from the 1st measurement point.
e.g. If the Interval Time is set to 10 seconds and the first measurement is taken at 27 seconds,
the system stores results at 27, 37, 47...seconds if fix interval time is not selected. if fix interval
time is selected, the results will be taken and stored at 27, 30, 40, 50...seconds
The temperature settings of the winding resistance interval are the same as winding resistance
settings. Please see chapter 10.2.2, Temperature settings part, to see the explanation.
90297-0.24 Instruction Manual mini-ATOS

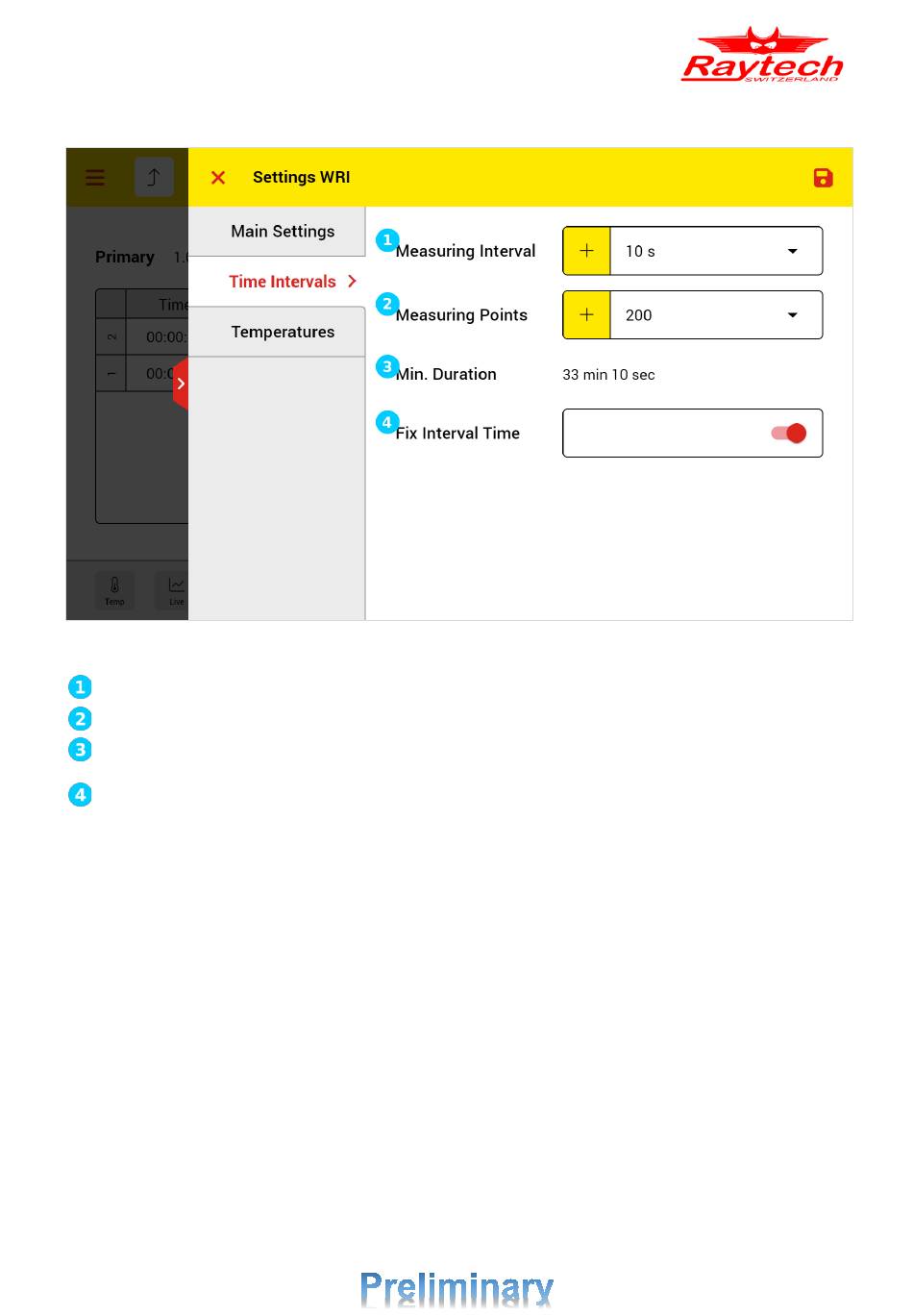

Figure 64: Winding resistance interval, time intervals settings
