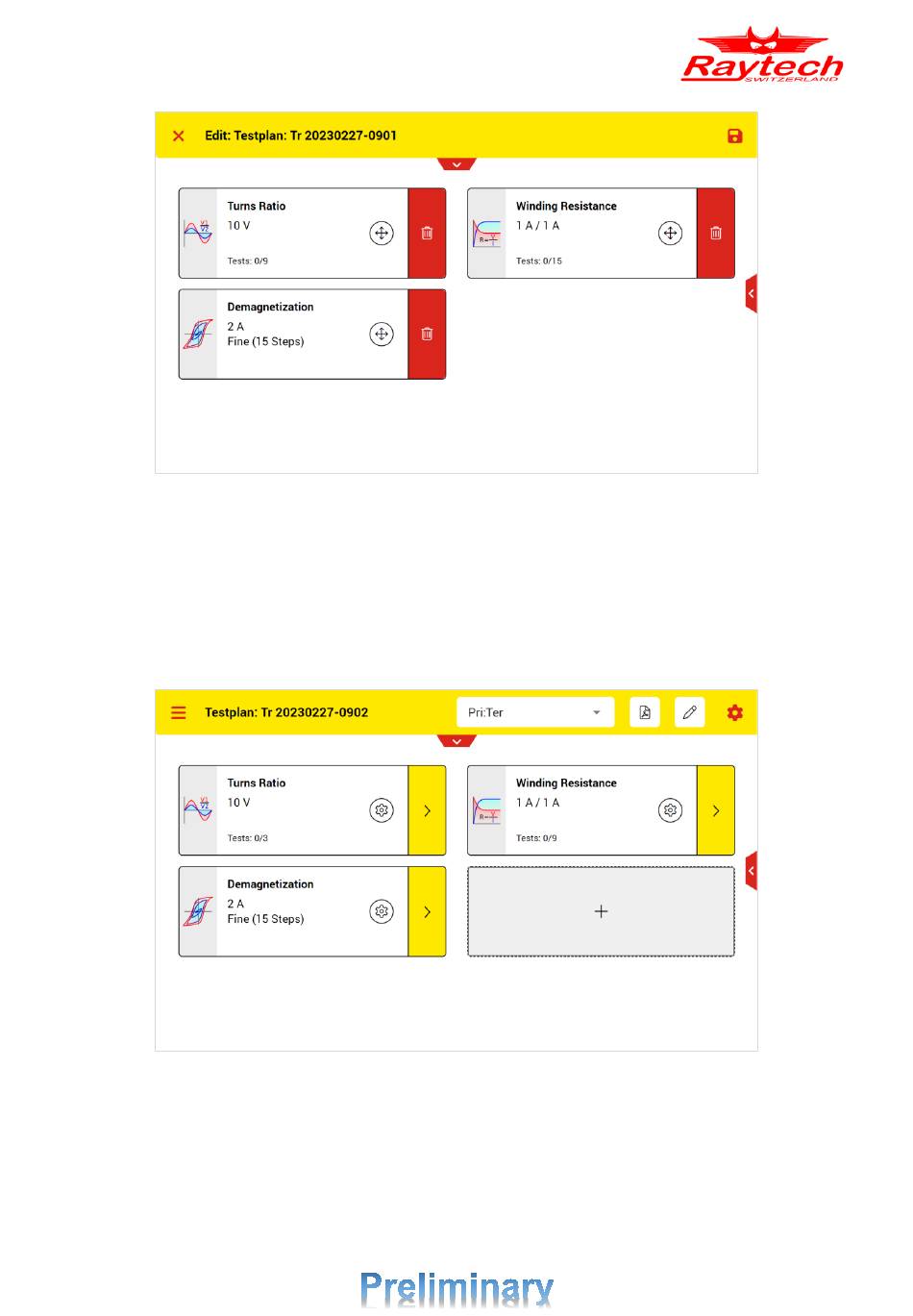

Figure 37: Test Plan edit mode
For the transformers with tertiary winding, for each pair of windings (Pri: Sec & Pri: Ter), there is a
separate test plan. To see the test plan for each one, the desired pair of windings must be selected
from the drop-down list located above (Figure 38). This drop-down list is only visible when there is
a tertiary winding.
Note that when you select another pair of winding, the measurement setup must be changed
according to chapter 5.1.
Figure 38: Test plan for Pri: Ter pair, which is selected from the drop-down list located above.
