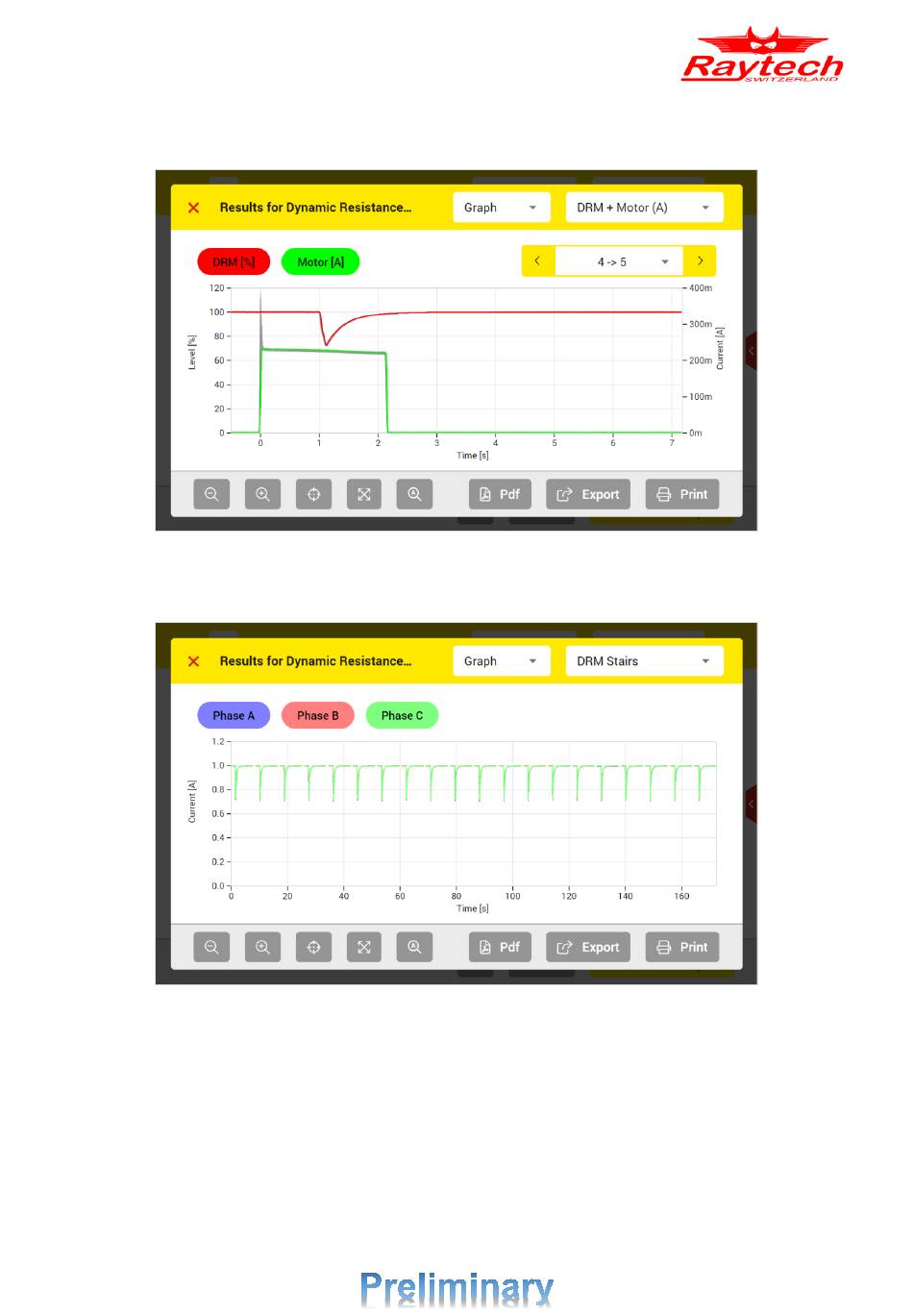

Figure 91 shows the DRM and motor current graph views which shows them together. The time
zero is set to the start of motor current.
Figure 91: DRM and motor current graph result view
You can also see the stairs view as Figure 92.
Figure 92: DRM stair graph view
