Automatic adaptive graph view
Print results by using the thermal printer
Detailed results in table view or graphs
The button to run the test
Test mode to select which phase to perform the demagnetization
The warning symbol shows that it is not safe to touch the cables and test clamps
The actual point (the actual flux and the actual current) of the demagnetization curve marked
in green
The first point (initial remanence flux) of the demagnetization curve marked in red
The actual demagnetization current during the measurement
The actual flux during the measurement
The stop button can be used to stop the test. Please note that it takes time to discharge and
stop the test
WARNING!
After measurement stop, it takes time to discharge the test object!
Wait until the device mode changes to safe mode before any other
action!
90297-0.24 Instruction Manual mini-ATOS

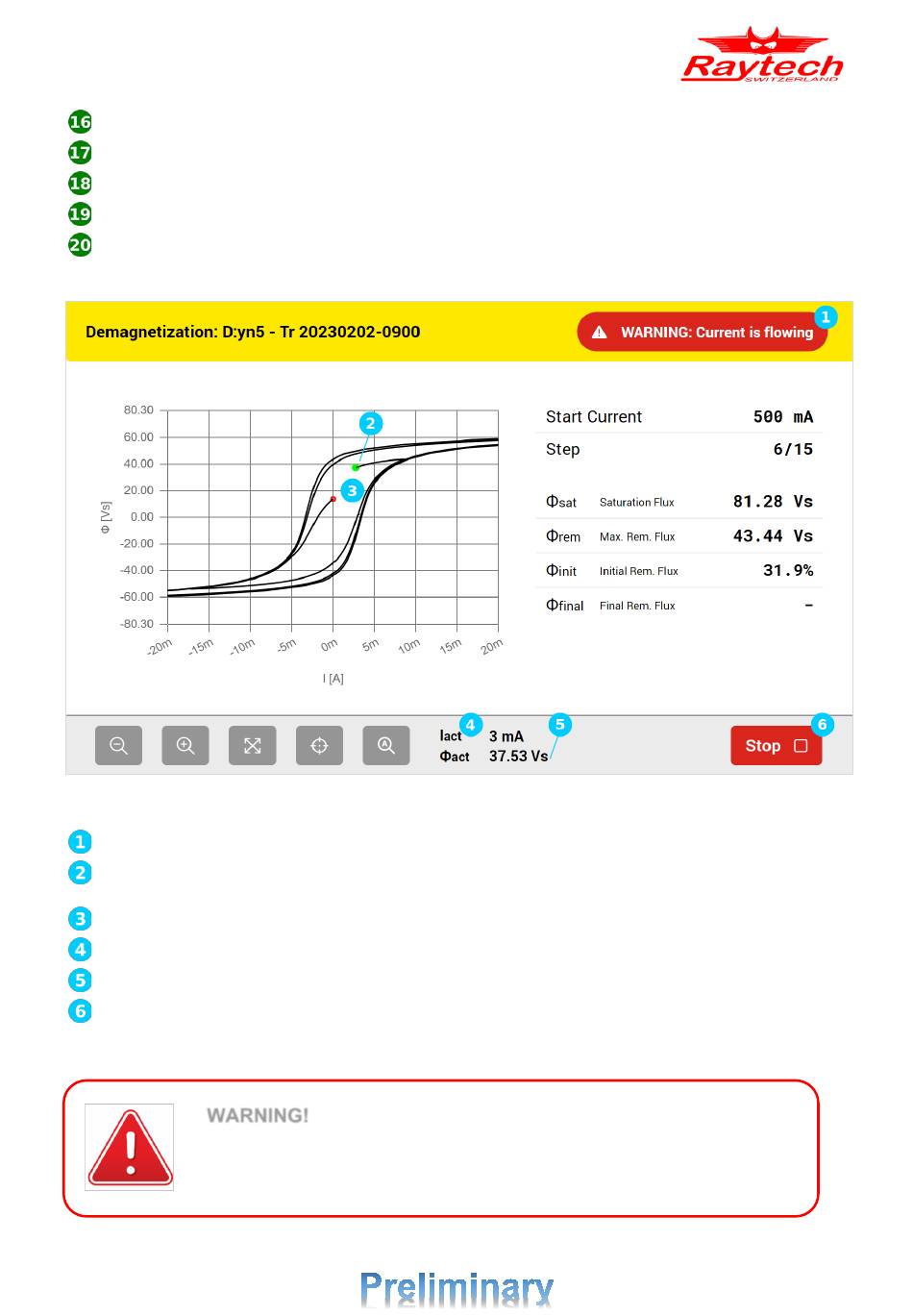

Figure 68: Demagnetization view during the test
