Labels Wizard
If the default label does not match the actual tap labels, the Labels Wizard will be helpful to define

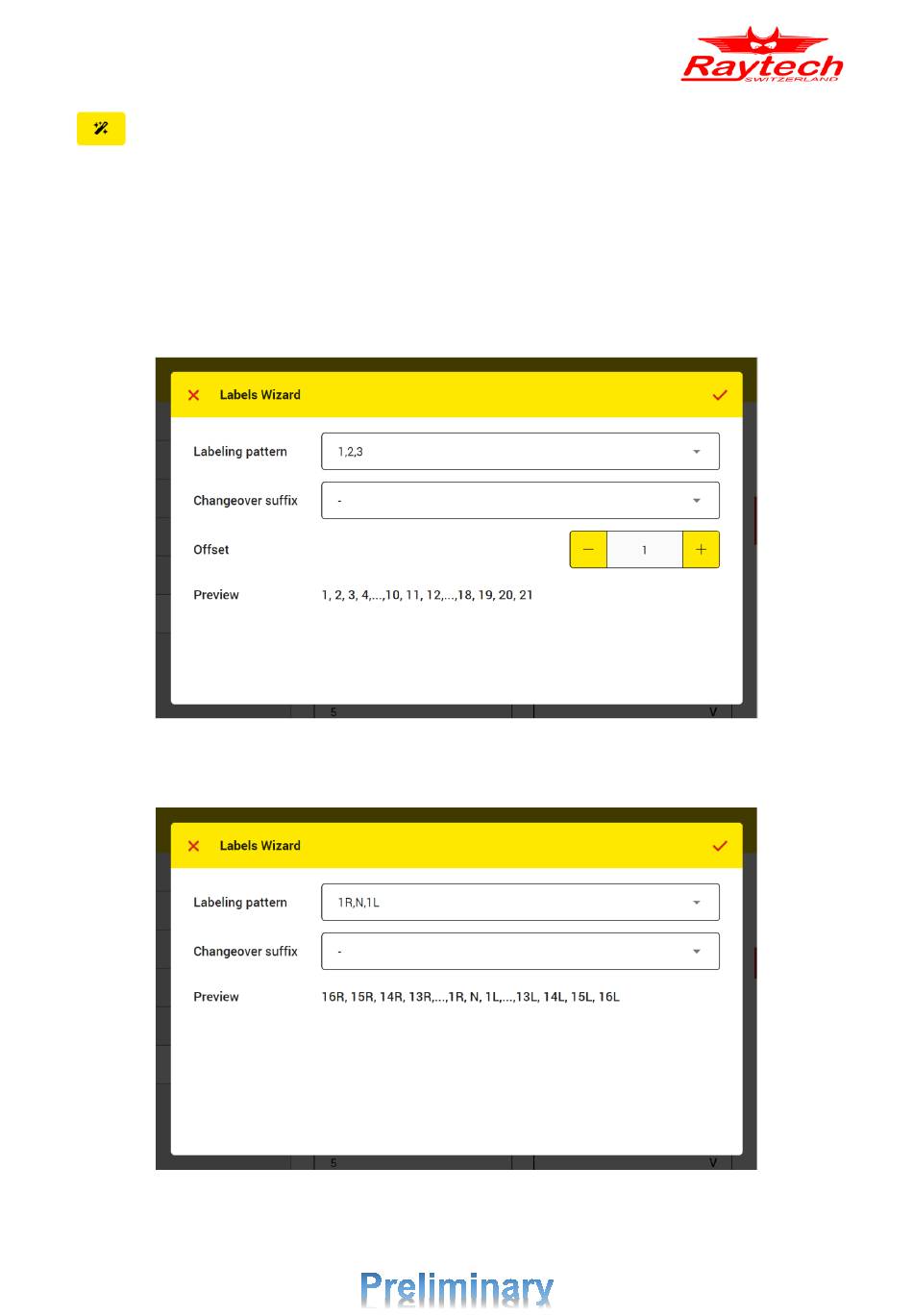

a label for each tap easier. Figure 34 shows the Labels Wizard window. The first item is the
Labelling pattern which is used to choose the system of labelling. When there are changeover
positions, their labels can be adjusted by using the Changeover suffix item.
When it is required, by editing the Offset, it is possible to start the labelling from any number.
Finally, there is a Preview, which shows how will be the labels by using the wizard.
Figure 34: Labels wizard window
Figure 35 shows also how to fill the wizard for the secondary side of the example.
Figure 35: filling the labels wizard for the example
