The average of measured and external temperatures
The measured resistance
The actual test current
To see the actual measurement value of each temperature measurement channel
To see the resistance curve over the time
Print results by using the thermal printer
Detailed results in table view or graphs
To start the timer separately. When you run the test without starting the timer, the timer will
automatically also start
Start test button
The view of the winding resistance interval measurement during the test is displayed in Figure 62,
and important parts are subsequently explained.

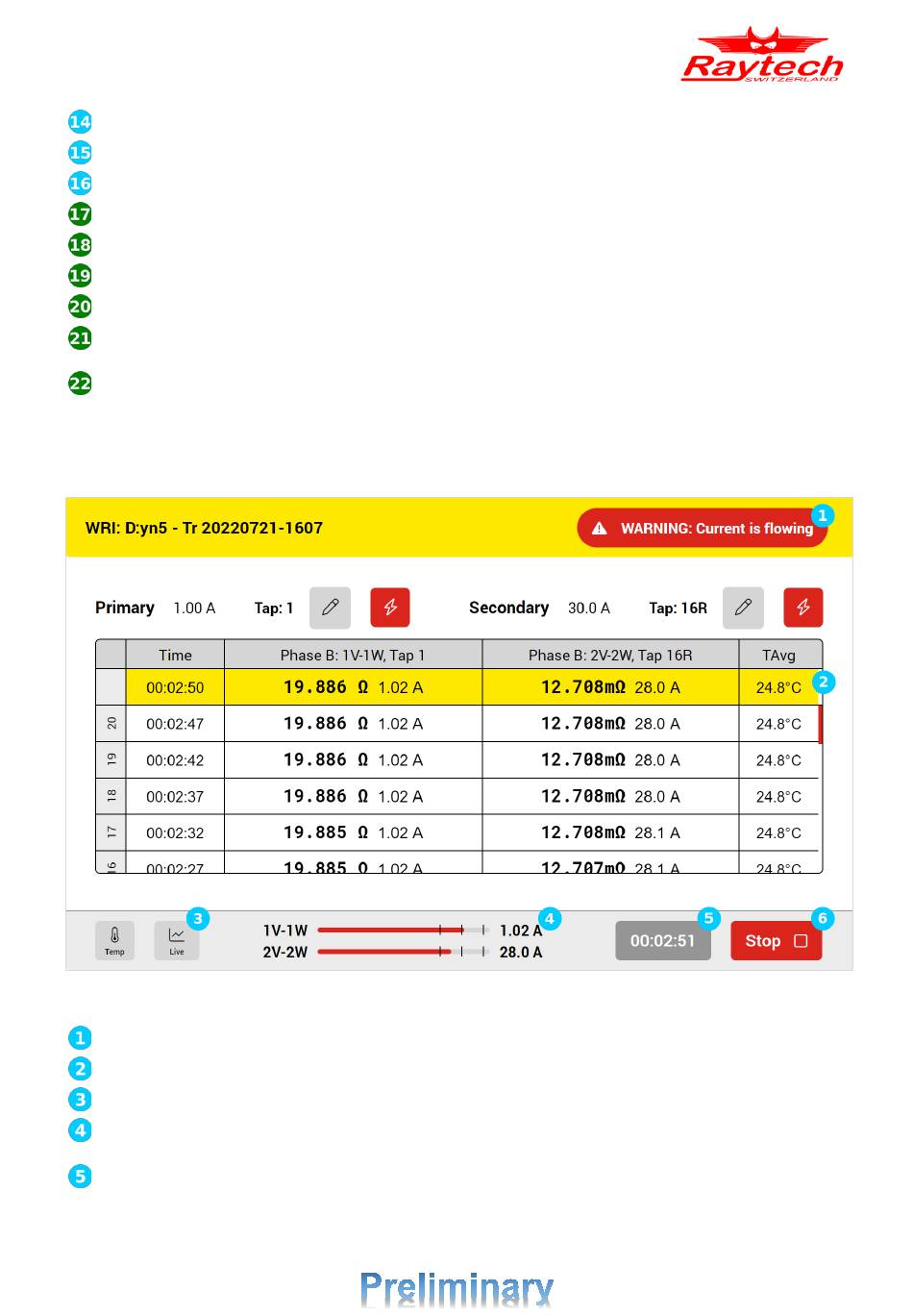

Figure 62: Winding resistance interval measurement view during the test
The warning symbol shows that it is not safe to touch the cables and test clamps
The highlighted row shows the parameters live value
Here you can open the live graph to see the live resistance curve over the time
The output current bars indicate the actual value of the output current for each channel and
specify the terminals used for current injection
The actual elapsed time
90297-0.24 Instruction Manual mini-ATOS
Preliminary
Page 79 of 125
