The parameters of DRM or motor current for actual or selected transition
The actual or selected transition which is indicated by a yellow background
Print the results by using the thermal printer
Open the detailed results
Start test button
When you run the test, the Go Taps menu will be first opened as Figure 81. After adjusting the
desired parameters, you can start the measurement by using the play icon on the top right of the
window.
Direction
The tap changing direction should be selected here. You can select either the direction to the first
tap or to the last tap.
Tap Changing: Automatic
For automatic tap changing, the mini-ATOS tap control output must be connected to the tap
changer control unit for both directions. In the transformer profile, Tap Changer tab, the tap control
must be also activated.
During the automatic tap changing, the tap switch message will be shown like Figure 82. The
system sends a pulse to change the tap position and waits for the trigger. When the trigger came,
DRM graph will be shown and the results will be recorded.
90297-0.24 Instruction Manual mini-ATOS

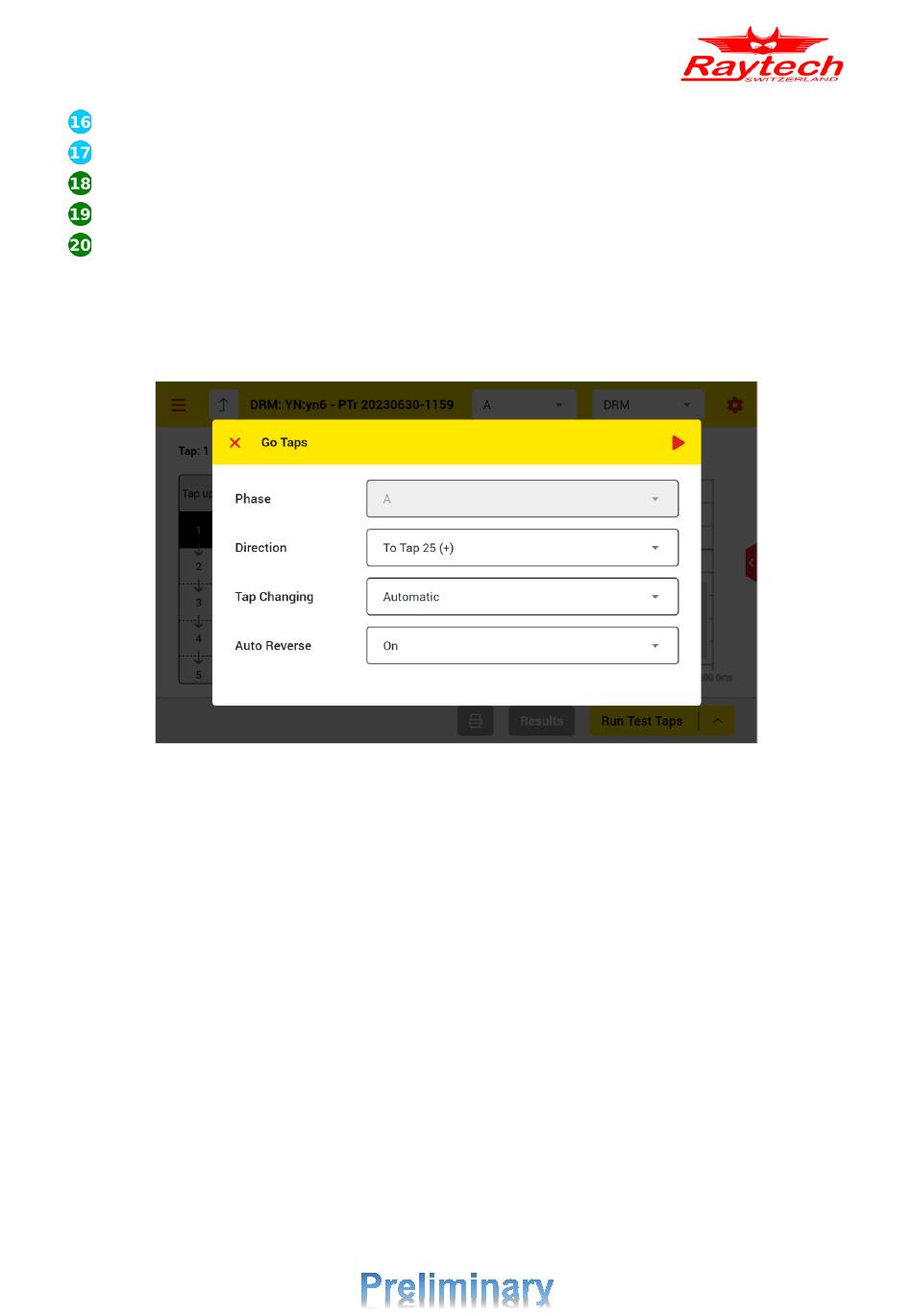

Figure 81: Go Taps menu for DRM
