8.1.4 General

Within the general tab of the test object (Figure 28) , you can input various test object details,
which are described below.

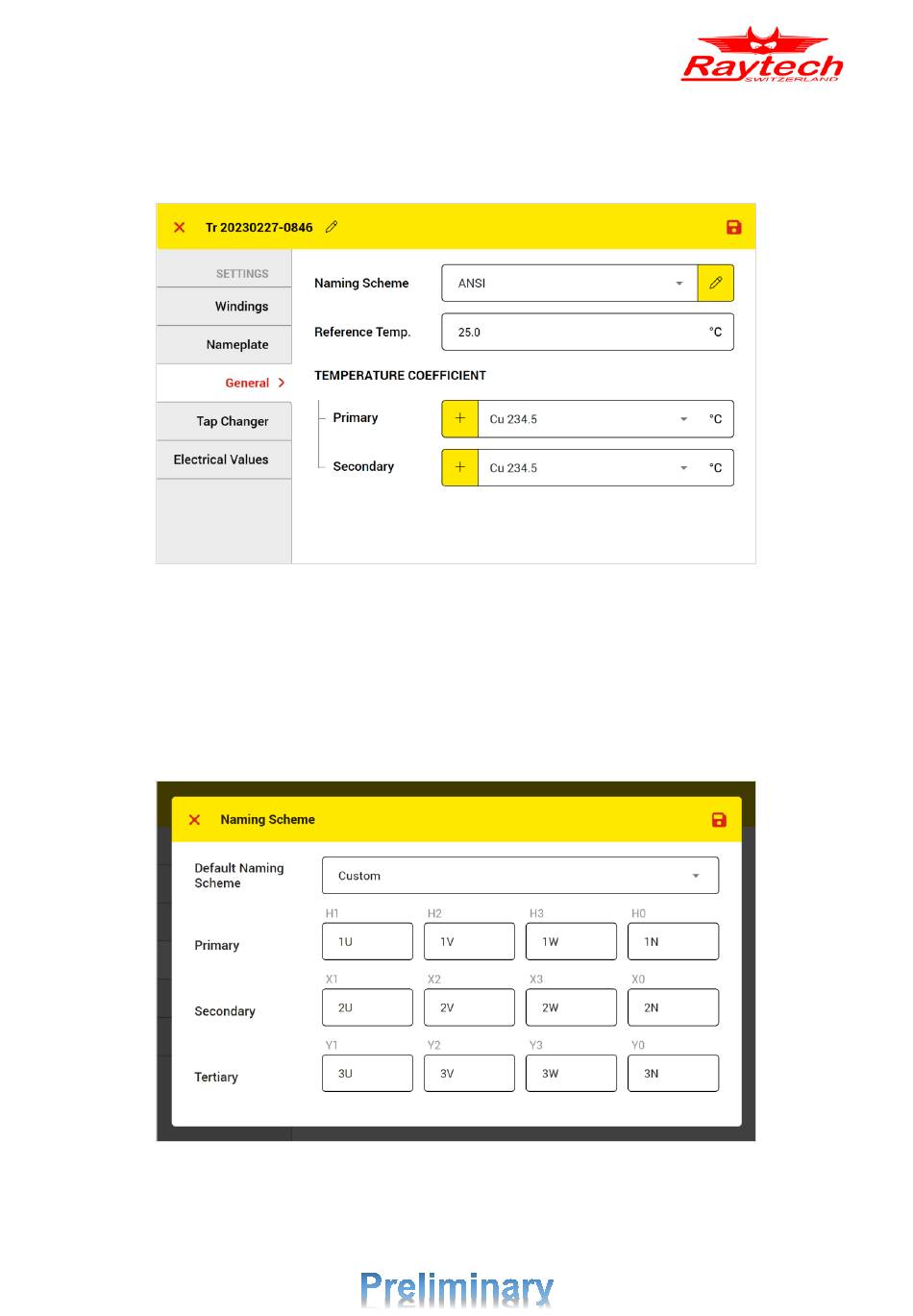

Figure 28: Test object General tab
Naming Scheme
Generally, there are different systems of terminal naming. The naming scheme of the test object
can be changed here. Please note that the default naming scheme, is the naming scheme which is
previously selected in settings (chapter 7.4.3). When a custom naming scheme is required, it can
be easily defined in the Naming Scheme window (Figure 29) which can be opened using the pencil
icon.
Figure 29: Custom Naming Scheme window
