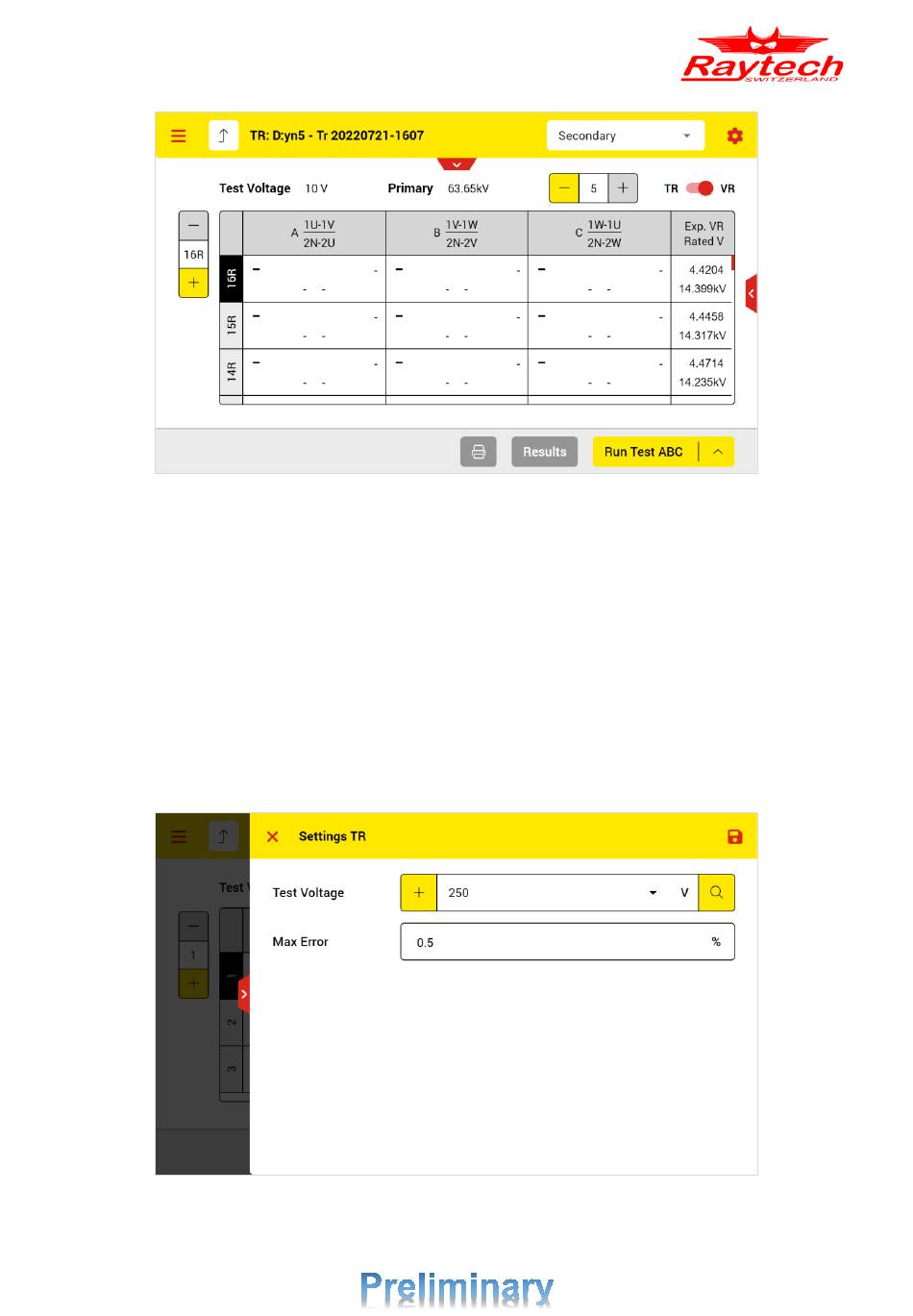

Figure 43: Turns ratio secondary view mode

10.1.2 Turns ratio settings

In Figure 44 the turns ratio setting can be seen. The test voltage can be selected from 10VAC,
40VAC, 100VAC or 250VAC. You can also add user defined test voltages to this list by tapping on
the + button. The user defined voltage can be any voltages between 2VAC and 250VAC.
The maximum acceptable ratio error can also be adjusted by editing the Max Error field. The
default value according to standards is 0.5%.
Figure 44: Turns ratio settings
Preliminary
90297-0.24 Instruction Manual mini-ATOS Page 63 of 125
