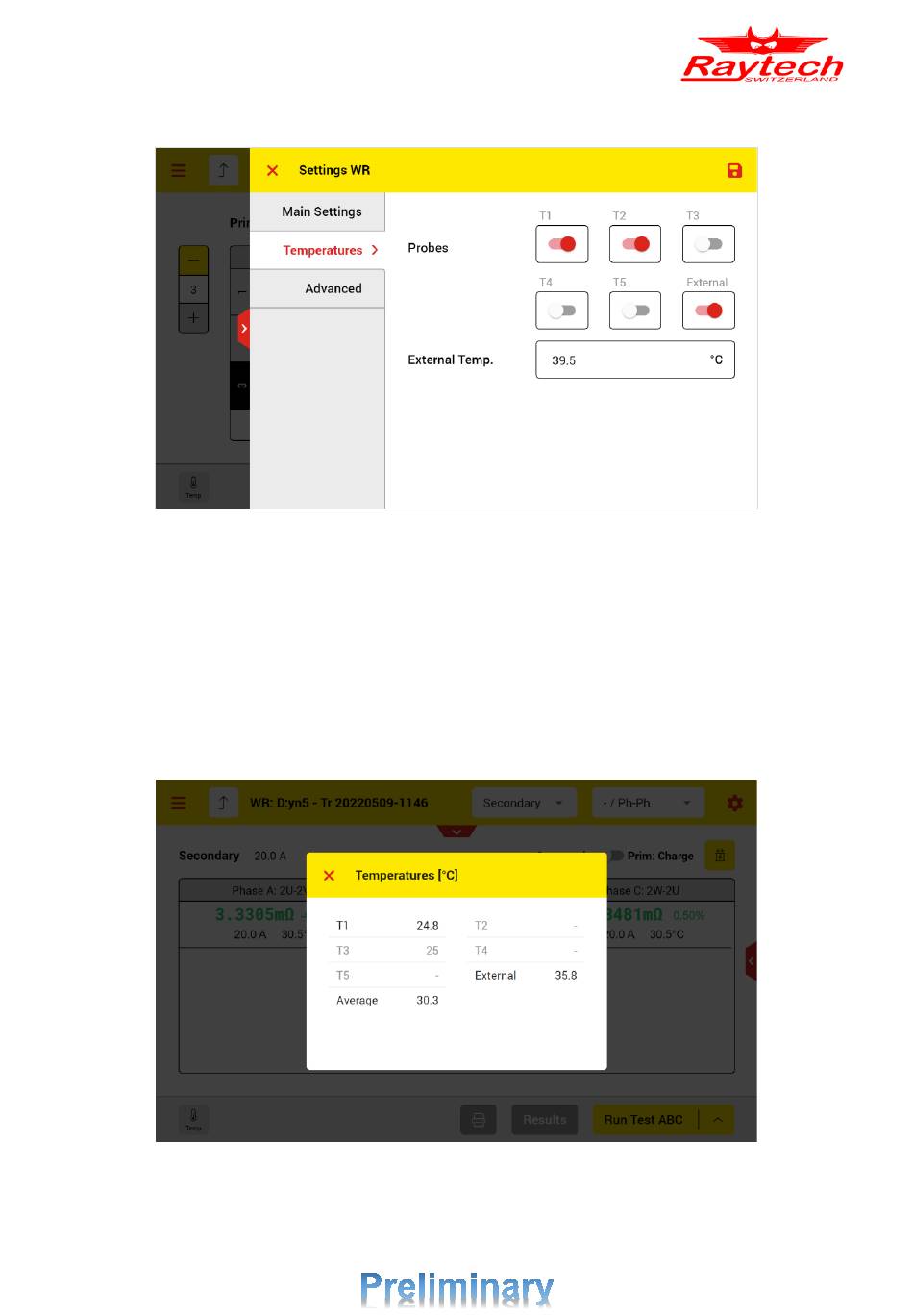

Figure 54 shows the winding resistance temperature settings.
Figure 54: Winding resistance temperatures settings
In temperature settings, it is possible to enable each of the 5 temperature channels to record.
When there is an external temperature probe, the External switch should be enabled. The reading
value must be also entered manually.
The mini-ATOS use the average of all activated temperature values for the temperature correction.
In the live temperatures window (Figure 55) which can be opened from the bottom-left corner of
measuring screen, you can see the actual temperature values. Here T1 is plugged-in and also
activated in the setting. T3 is not activated but plugged in. If a temperature channel is activated but
not plugged-in, the mini-ATOS will display an error message after starting the measurement.
Figure 55: Actual Temperature values
