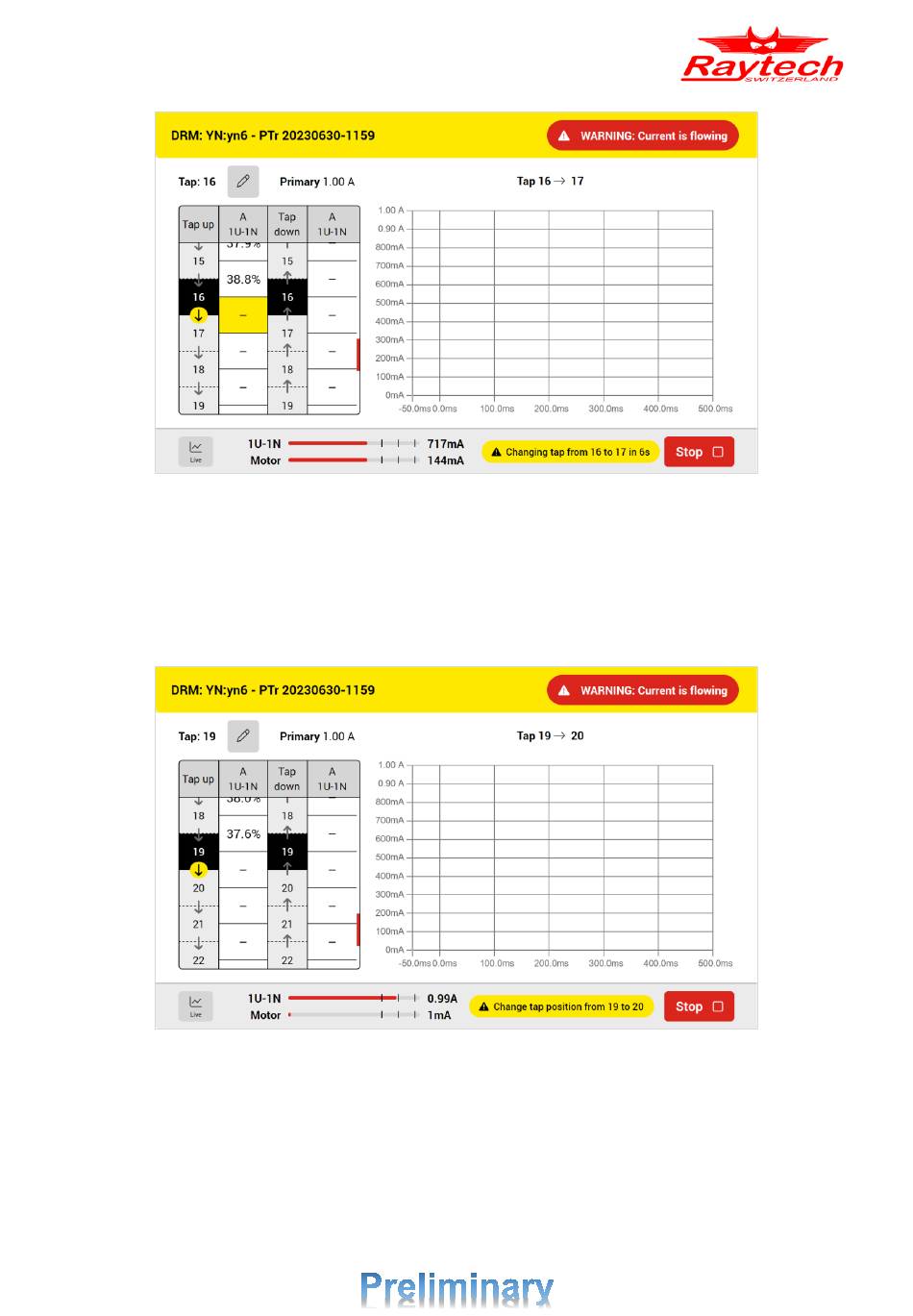

Figure 82: Tap Switch message during DRM automatic tap changing
Tap Changing: Manual
Tap changing can be also manual. During the tap changing, the tap switch message (Figure 83)
will ask to change the tap position manually. The system waits for the trigger. When the trigger
came, DRM graph will be shown and the results will be recorded. No confirmation is required
because system can find outs from the trigger that the tap position is actually changed by the user.
Figure 83: Tap Switch message during DRM manual tap changing
Auto Reverse
When auto reverse is On, the mini-ATOS continue measurement for the opposite direction when it
reaches to one of the end taps.
