10.8 Dynamic Resistance Measurement Result View

By tapping the Results button in the measurement view, the result view will be opened. Result view
includes graphs and tables. From the drop-down lists on top right, it is possible to select graphs
and tables.

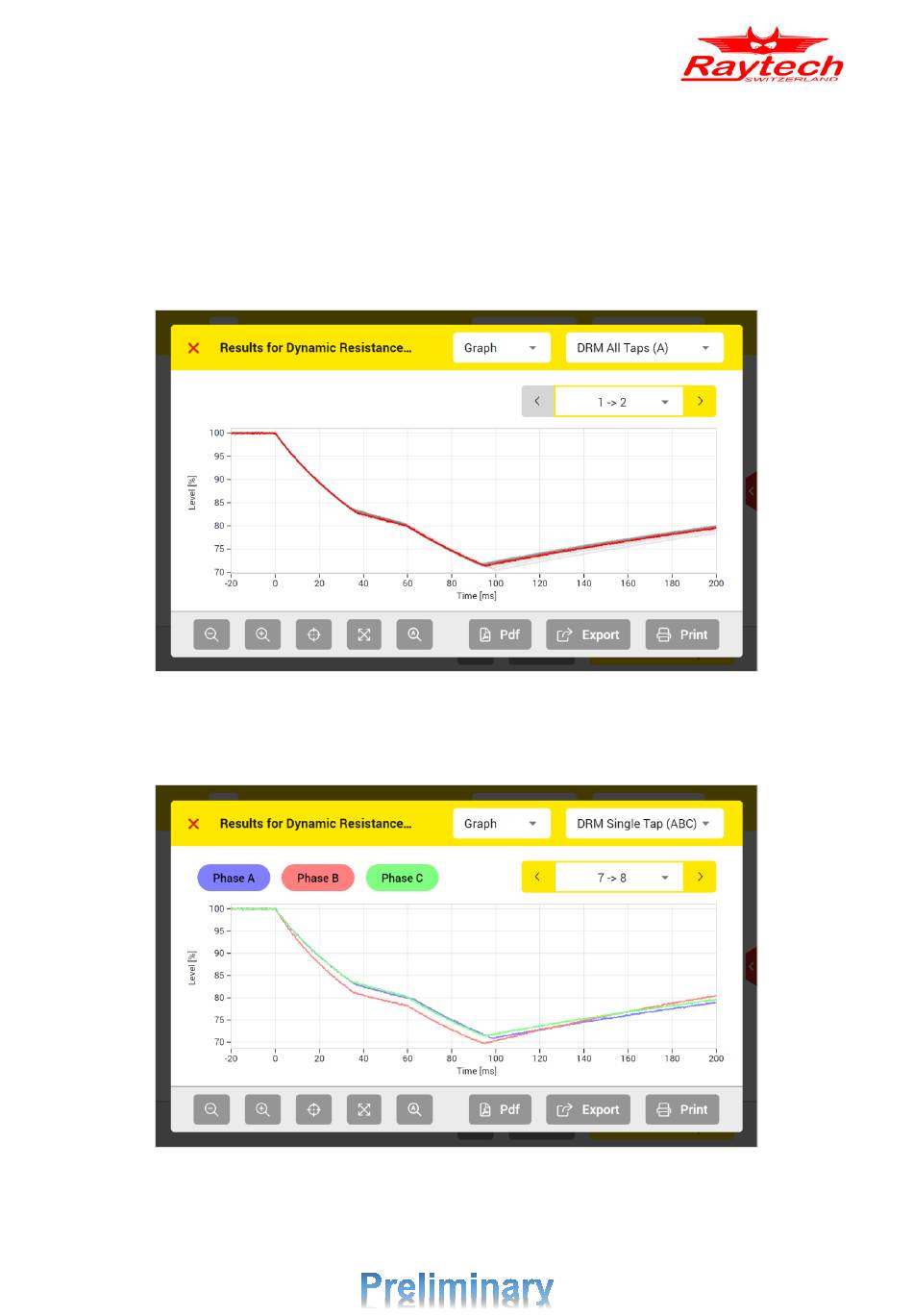

Figure 89 shows the DRM graphs of all taps for phase A. The selected transition is specified with
the red colour while all other transitions are grey. Here the time zero is set to the point when the
current is started to fall.
Figure 89: DRM graph result view
You can also compare DRM graphs of three phases (Figure 90) by choosing the DRM single tap
(ABC) view.
Figure 90: DRM graph 3ph single tap result view
