When measuring at non-primary side, there is an additional option to decrease the transformer
charging time by charging the transformer from the primary winding at the same time. The current
will be injected to the primary winding, but no resistance will be measured. You can active or
deactivate this option with the button on the top-right (Figure 50).

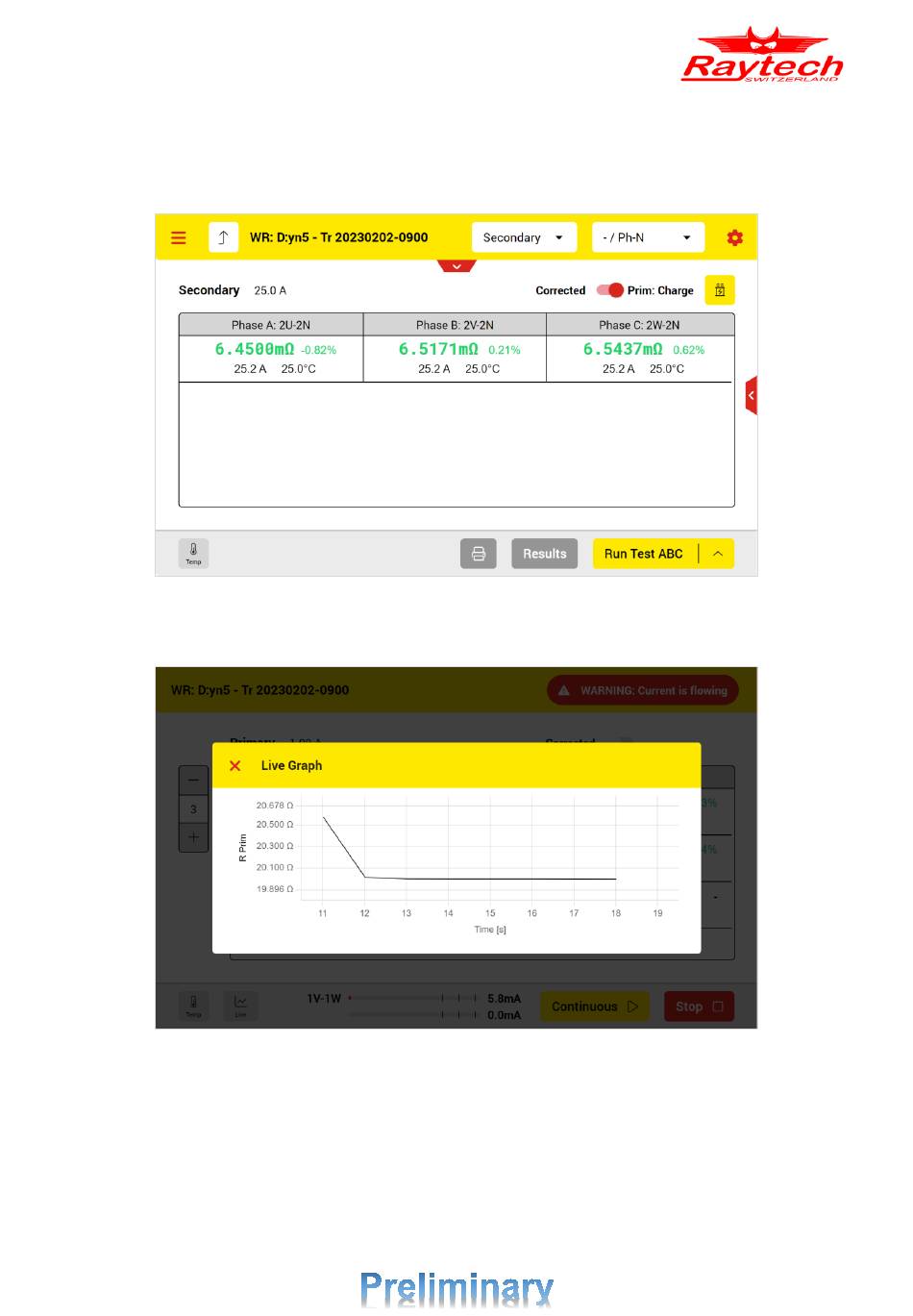

Figure 50: Winding resistance measurement view for the Secondary
Figure 51 is the live graph which shows the live resistance curve over the time.
Figure 51: Winding resistance live graph
