Section 3.6 Use FlexLogix Processor Out Channel Zero

User's Manual 0300277-03 Rev. A
Chapter 3: Serial ASCII Communications
To use a FlexLogix Processor out Channel Zero on a display:
1. Open a new application.

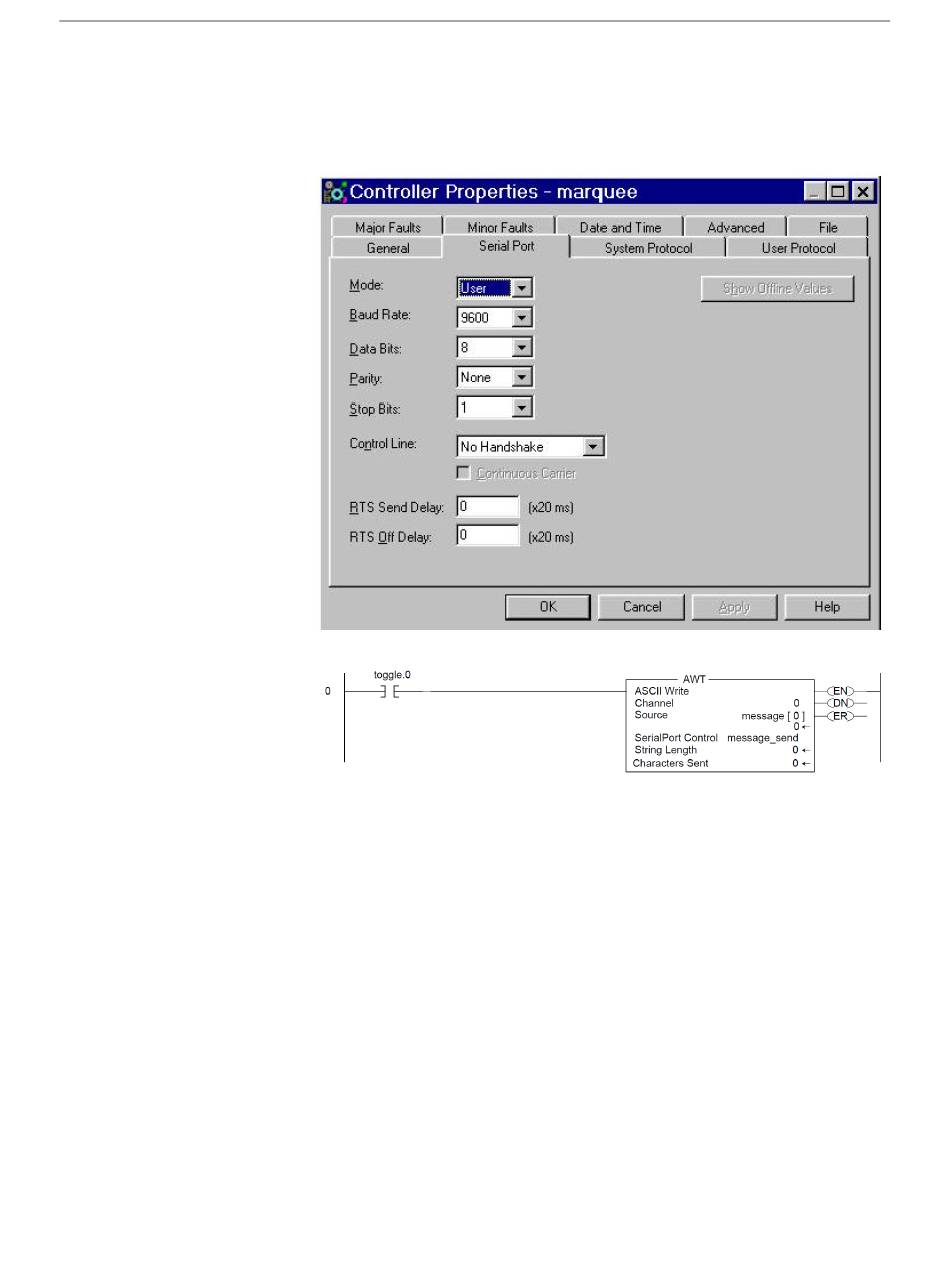

2. Set up the controller properties by right-clicking on the controller name
and selecting properties and then the serial port tab:
3. Set up ladder logic and controller tags:
4. The tag setup for this example is:
Toggle is of type DINT.
•
Message_send is of type SERIAL_PORT_CONTROL
•
• Message is of type SINT[50]
