Appendix B: Installing InView Marquee 2706-P4xC2-SC Message Displays B-11
wire (yellow) is not included.
4. For the RS-485 connection, a wire gage between 24 AWG (minimum) and 18 AWG
(maximum) is required. Tighten the terminal connection points to a maximum of .056 N-m
(5.00 in-lbs).
Hazard of damage to electronic equipment.
WARNING
Failure to ensure that jumper J2 is in the correct position for the
voltage supplied to the InView Comms module can result in damage
to the module circuitry.
Before applying power to the InView Comms Module, check that the
jumper is in the correct position for your application.
Danger de dommage pour l'équipement
WARNING
S'assurez que le cavalier J2 est dans la position correcte pour la
tension fournie au module de communication InView sinon cela
pourrait entrainer des dommages a l'ensemble des circuits du module.
InView en tension, vérifiez que le cavalier est dans la position de
voltage adequat pour votre application.

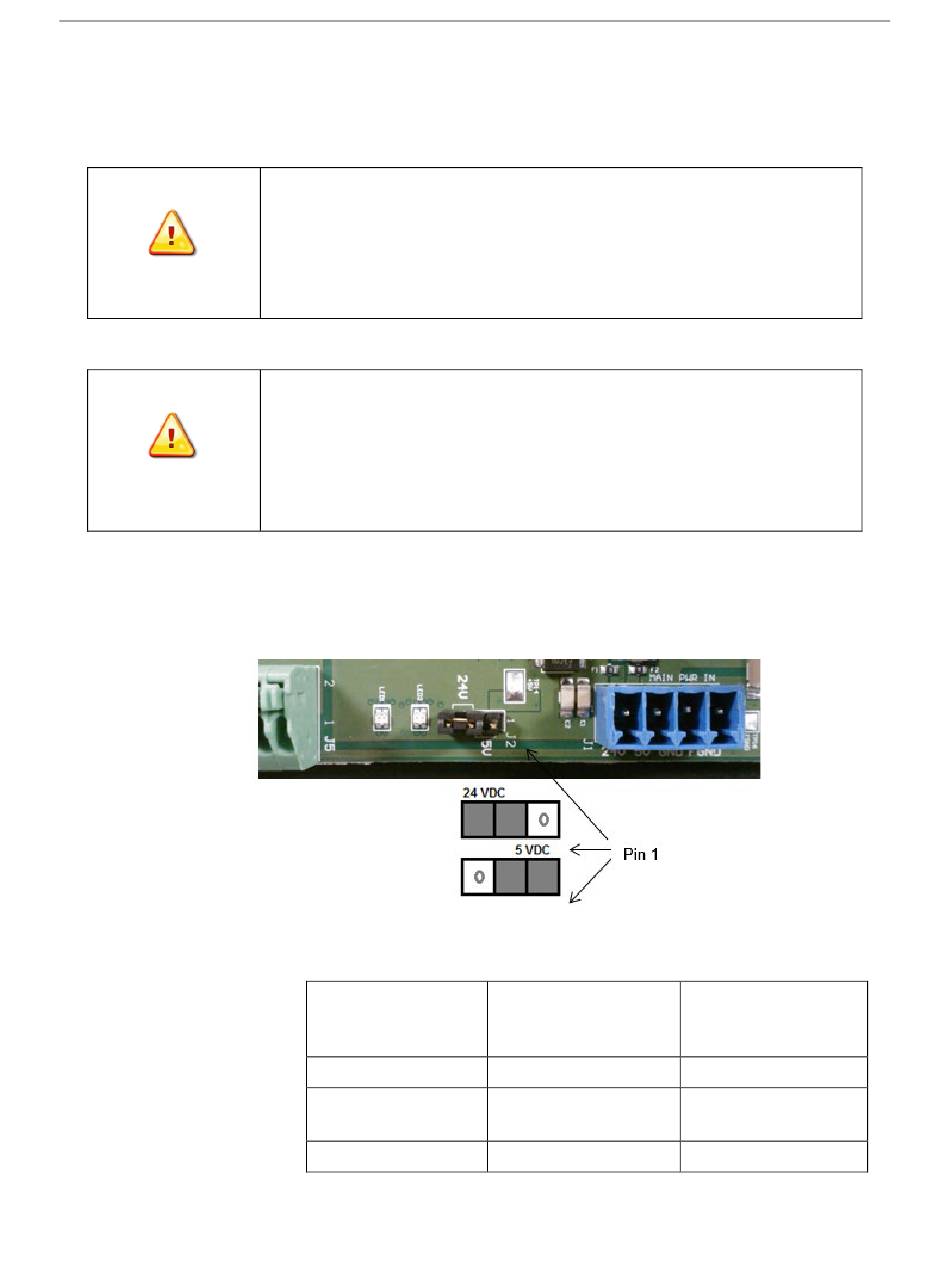

Power Connections in Comms Module:
1. Jumper J2 settings are shown as labeled on the Comms Module board
2. Check jumper J2 is correctly positioned for your application:
3. Connect the incoming power (Black and Red), serial (White and Brown),
4. Mount the cable grip to the InView display housing, tighten the locknut
and in 24 VDC or 5 VDC positions.
and GND (Green) wires from the Comms module to the terminal block
as shown:
Communications
Connector (on
Display) Pin
6: 5VDC
7: GND(PWR)
2: Shield
finger-tight, and rotate an additional 1/2 turn.
électronique.
Stranded wire from
Comms Module
Cable 6010nn-nn
RED + 5 V Power
BLACK: Supply
GND (-5 V)
Blue Chassis Ground
User's Manual 0300277-03 Rev. A
Connectors on
InView Comms
Module J1
J1 Pin 2
J1 Pin 3
J1 Pin 4
