NOTE
NOTE
Section 2.7 2706-P42-SC, 2706-P44-SC, 2706-P72-SC, 2706-P74-SC, 2706-P92-SC,
and 2706-P94-SC Displays
Flash Programmable Firmware

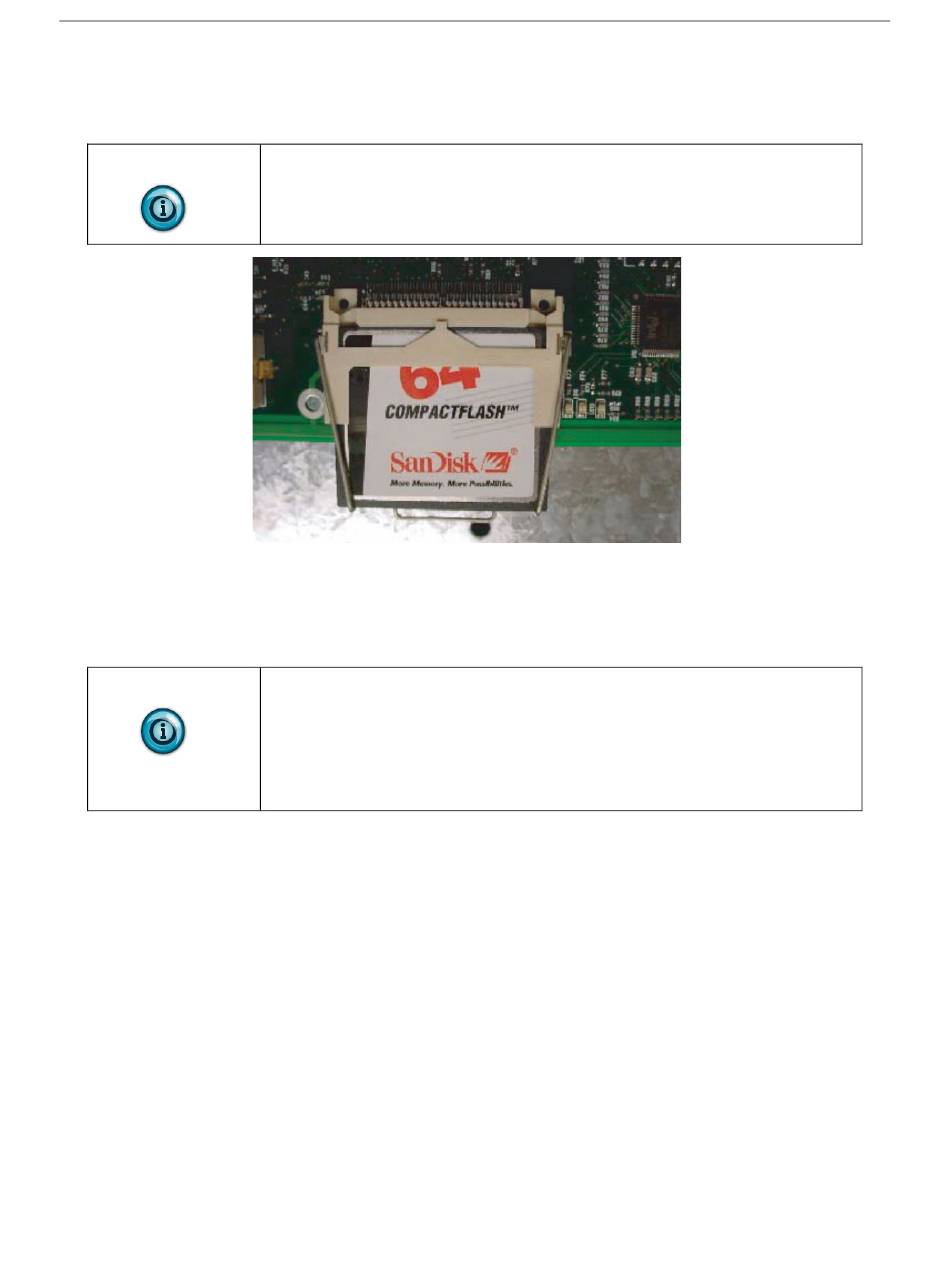

The programmable Compact Flash card is located inside the 2706-P9x-SC
display on the controller board as shown below.
The Compact Flash card must be at least 32 MB; anything less is not
supported.
Power-Up Messages
After the power cable and the download cable (attaches to the RJ12 port) have
been attached per the installation document, apply power to the display.
If a display is connected to Ethernet via TCP/IP by using a 2706-PENET1-
SC module or a 2706-P9x-SC display is connected to Ethernet via TCP/IP,
the display configuration and message download can be done over
Ethernet. For more information on this communication option, see
publication 0100233-01_A0(INSTALLATION_INSTRUCTIONS,2706-
PENET1-SC).
After power is applied to the display the following messages are displayed.
Firmware number and revision
•
Memory size and partition
•
Memory checksum message
•
• Date and time
Address of the display; and background message, if one was created
•
2706-P22-SC
After power is applied to the display the catalog number, firmware revision, and
address is displayed on one screen. Then the background message is displayed.
See the help file for more details on the following topics.
Chapter 2: InView System Connectivity
User's Manual 0300277-02 Rev. C
2-9
