Section 1.8 Mount the 2706-P72-SC and 2706-P74-SC Series NEMA 4 and 4X
Models
NOTE
Chapter 1: Installing InView Message Display
Use chains capable of supporting 4 times the total weight of the sign(s).
To mount the sign:
1. Attach the two sign brackets to a wall, ceiling, or other surface.

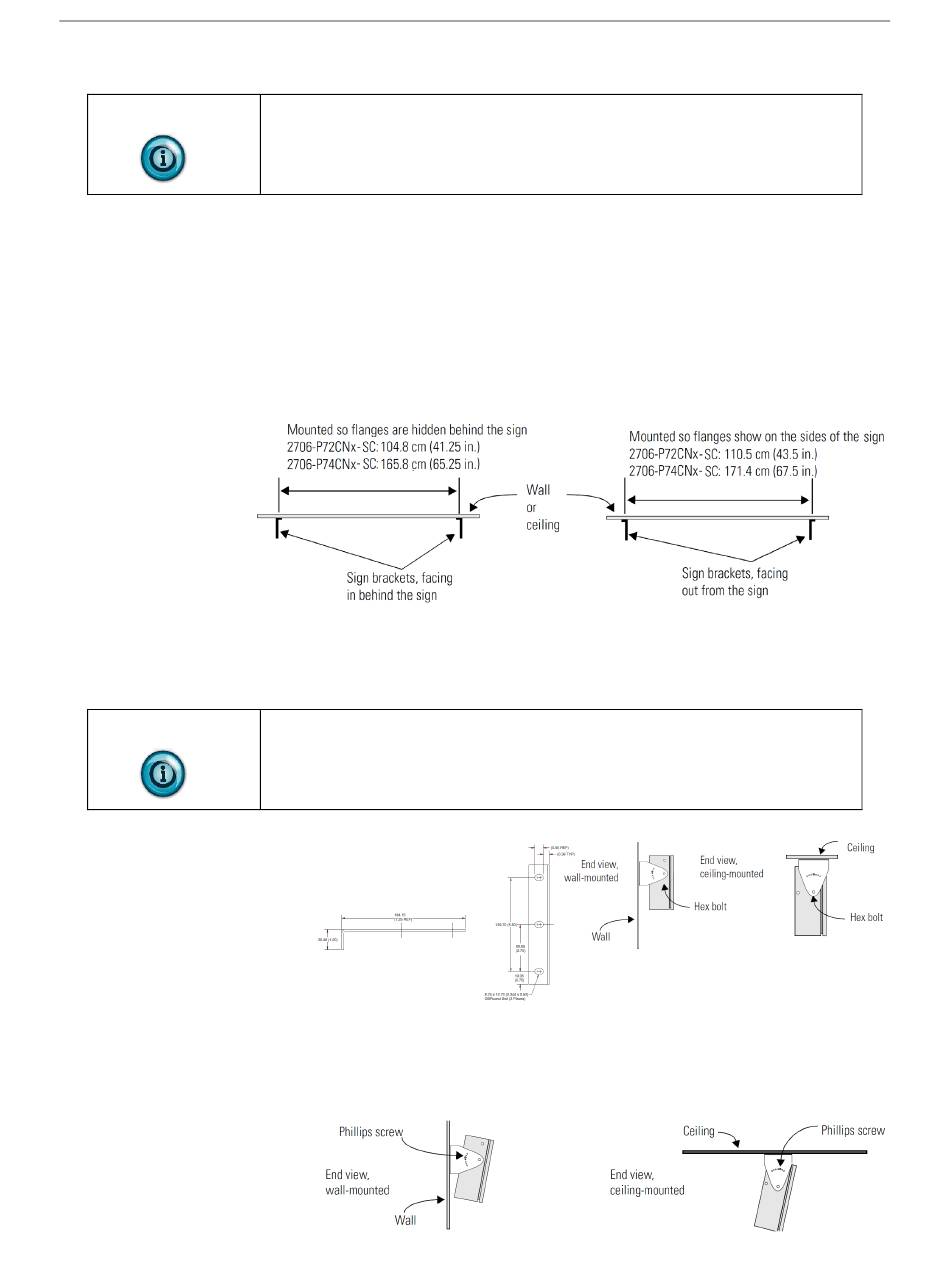

Be sure to place the brackets so the bracket flanges face appropriately as
shown below. Mount the brackets the following distance apart (measured
from the center of the mounting holes in each bracket):
2. Mount the sign on the sign brackets using the two large hex bolts
supplied.
Do not install the sign directly to drywall or plaster-board. The sign must
be fastened to a wall capable of supporting at least four times the weight
of the sign.
3. Tilt the sign to select a viewing angle.
4. To hold the sign in place, insert a Phillips screw (supplied) through one
of the small holes on each bracket into the screw hole in the sign case.
