Section 3.2 Use an SLC 5/03, 5/04, or 5/05 Out Channel Zero
User's Manual 0300277-03 Rev. A
Chapter 3: Serial ASCII Communications
The SLC processor is set up very similar to the PLC processor. The SLC
processor uses the same ladder logic as the PLC processor shown below.
To use an SLC processor out Channel Zero on a display:

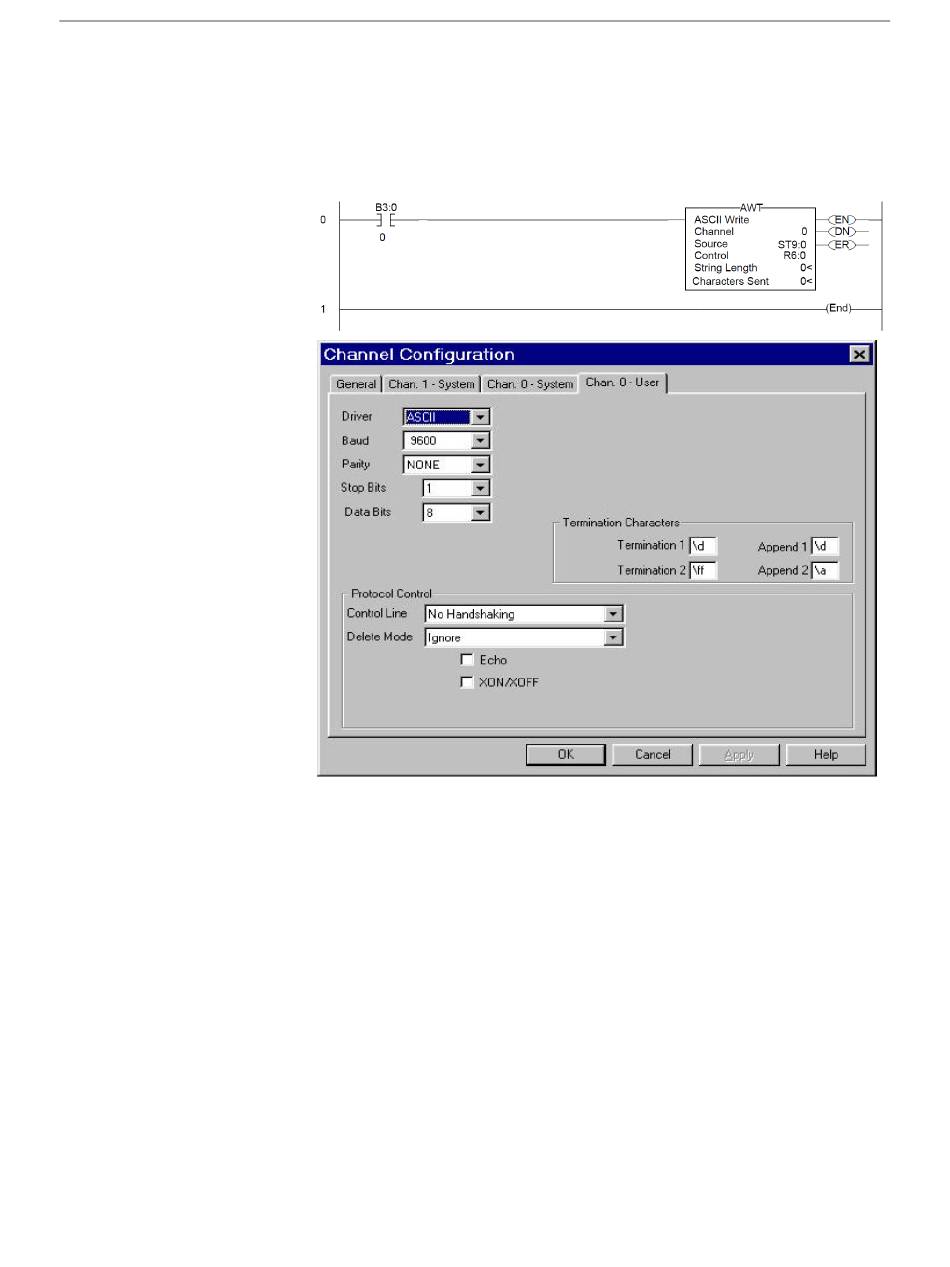

1. Create a new application and then set up the channel configuration as
shown:
