1-30

Section 1.16 RS-232 to RS-485 Networking

User's Manual 0300277-03 Rev. A
Chapter 1: Installing InView Message Display
download to multiple displays over RS-485.
2706-PCABLE1-SC which connects from your PC, running InView
•
messaging software, to the phone jack type connector on your InView
display. In larger InView models, this phone jack may be behind the
power supply cover.
• EtherNet TCP/IP networking. With the InView 2706-PENET1-SC
EtherNet TCP/IP communication module you can download message
applications from a personal computer over Ethernet.
For more information on this communications option, see 0100233-
•
01_A0(INSTALLATION_INSTRUCTIONS,2706-PENET1-SC).
InView communication modules. The communication modules allow the
•
displays to communicate on the core Allen-Bradley networks.
With the use of an Allen-Bradley 1761-NET-AIC, you can convert RS-232 to
RS-485 and daisy chain InView Displays up to 1219 m (4000 ft).

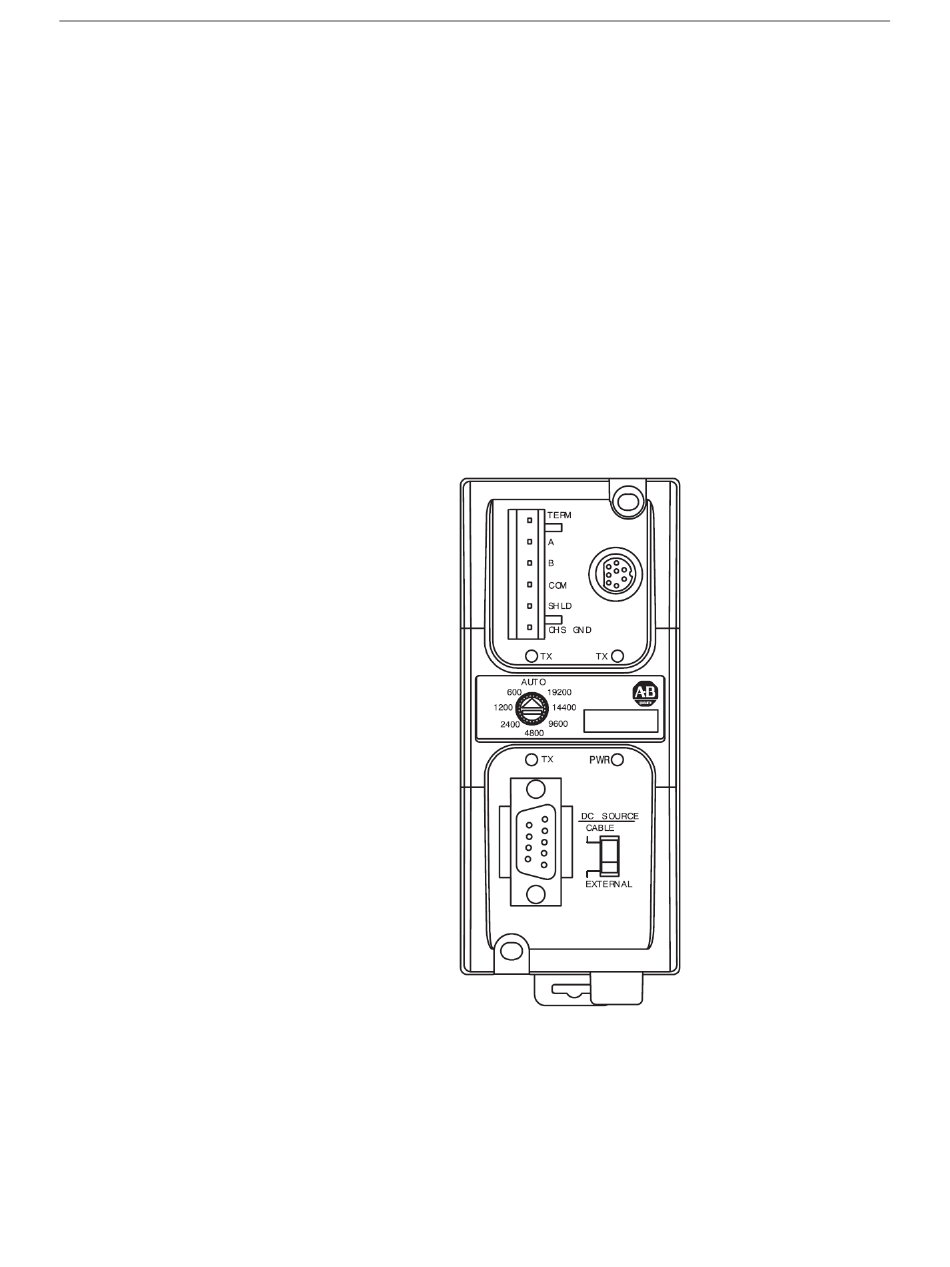

1761-NET-AIC (AIC+)
