Chapter 1: Installing InView Message Display

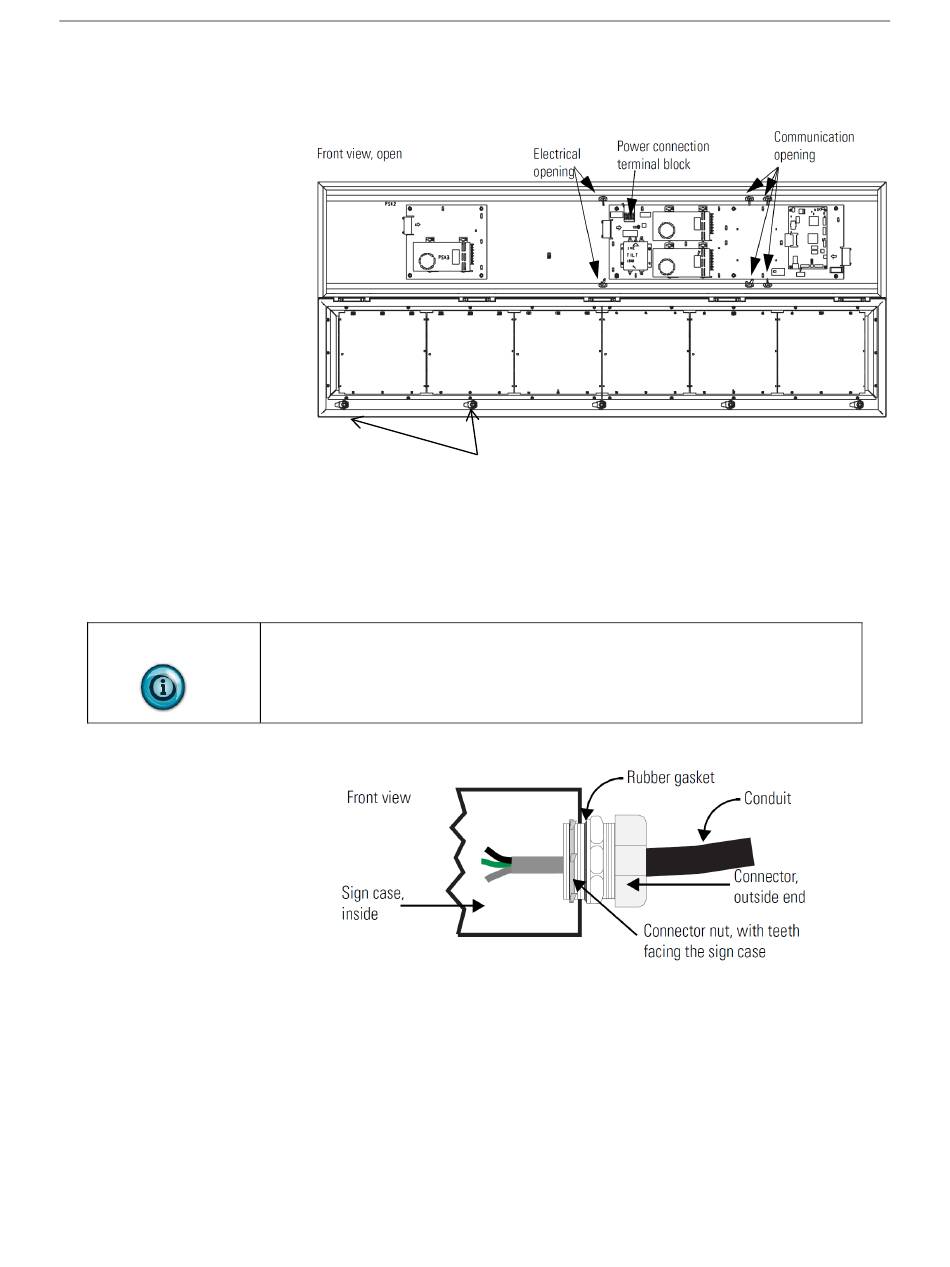

1. Open the front of the sign case by turning the half-turn latches to the left
with a large screwdriver. On the 2706-P92-SC, there are 3 half-turn
latches; on the 2706-P94-SC there are 5. Carefully let the front of the
case drop forward.
2. Feed electrical cable through 12.7 mm (0.5 in.) water-tight conduit, the
outside end of the connector (supplied), the electrical opening in the sign
case, and then through the inside end of the connector. Screw the inside
and outside ends of the connector together until water-tight.
Use chains capable of supporting 4 times the total weight of the signs.
3. Strip the electrical wires back 6.35 mm (0.25 in.).
4. Insert the wires into the appropriate terminal connection and tighten the
screw to 0.79 Nm (7 lb-in).
Quarter-turn latches
2706-P94-SC sign
on
