B-16 Appendix B: Installing InView Marquee 2706-P4xC2-SC Message Displays
WARNING
User's Manual 0300277-03 Rev. A
HAZARD of injury to personnel or damage to equipment.
Be sure to place the ceiling brackets so the ceiling bracket flanges face
appropriately as shown below.
Failure to place the ceiling brackets correctly will result in the sign
failing to stay in place when hung from its chains.

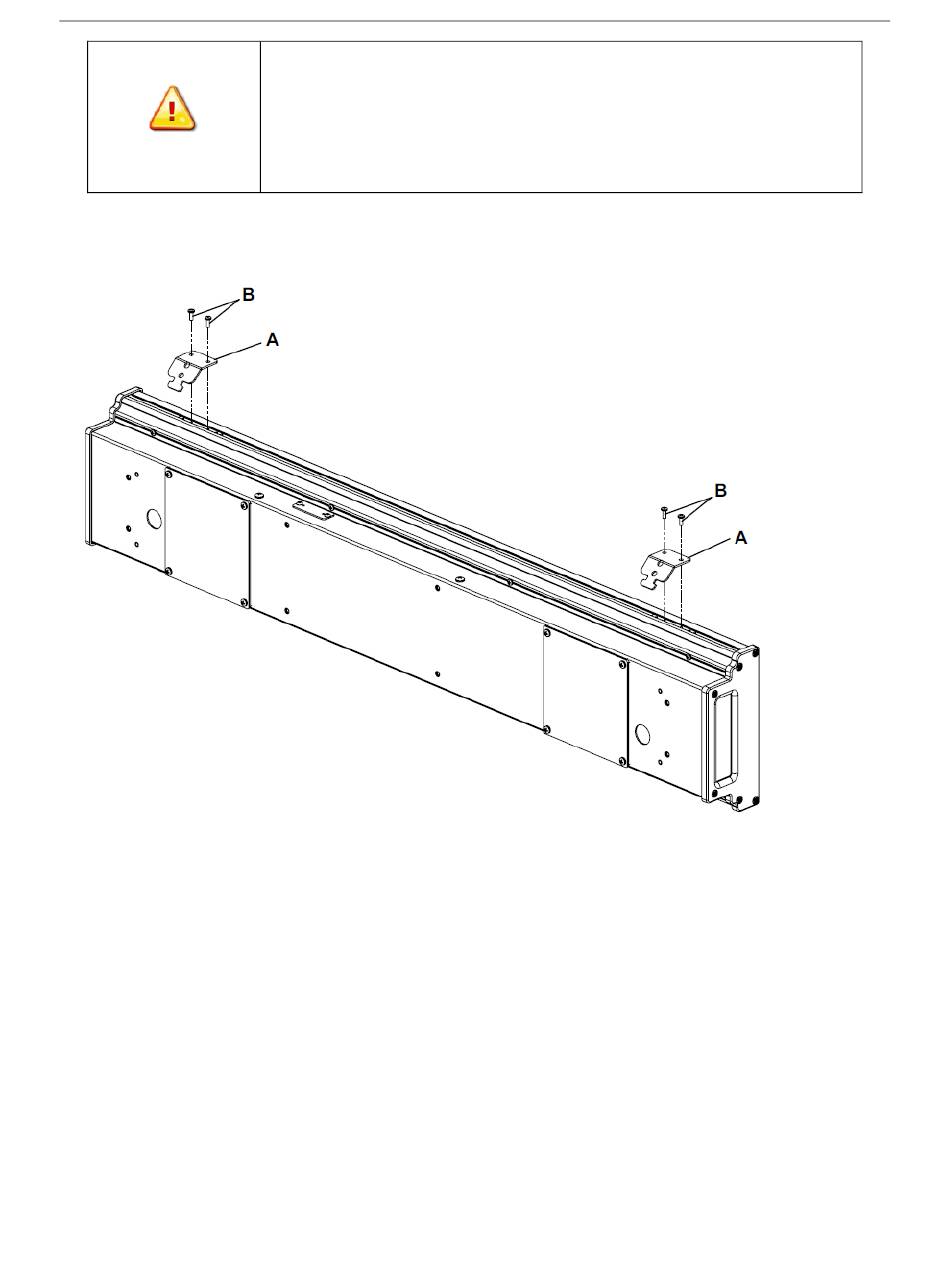

• A indicates bracket(s).
• B indicates bracket screws.
Hardware to attach the sign to the ceiling varies based on the type of material
(concrete, brick, wood) and is not included.
Installers must use the following guidelines:
The hardware for attaching to the mounting surface must be rated for the
•
mounting surface.
Hardware for attaching to the mounting surface, including hanging
•
chains, must be capable of supporting the weight of the sign.
The display cannot be installed directly to drywall, plasterboard, or any
•
other fragile supports.
The ceiling, or the ceiling-mounted support system must be capable of
•
supporting at least four times the weight of the sign.
1. Attach the ceiling mounting brackets (A) to the sign using the 4 6-
32×3/8-inch Phillips screws (B) as shown. Tighten to 1.3 N-m (10 in-lb).
