Section 1.9 EMI Compliance the 2706-P72-SC and 2706-P74-SC Series NEMA 4
and 4X Models
User's Manual 0300277-03 Rev. A
Chapter 1: Installing InView Message Display

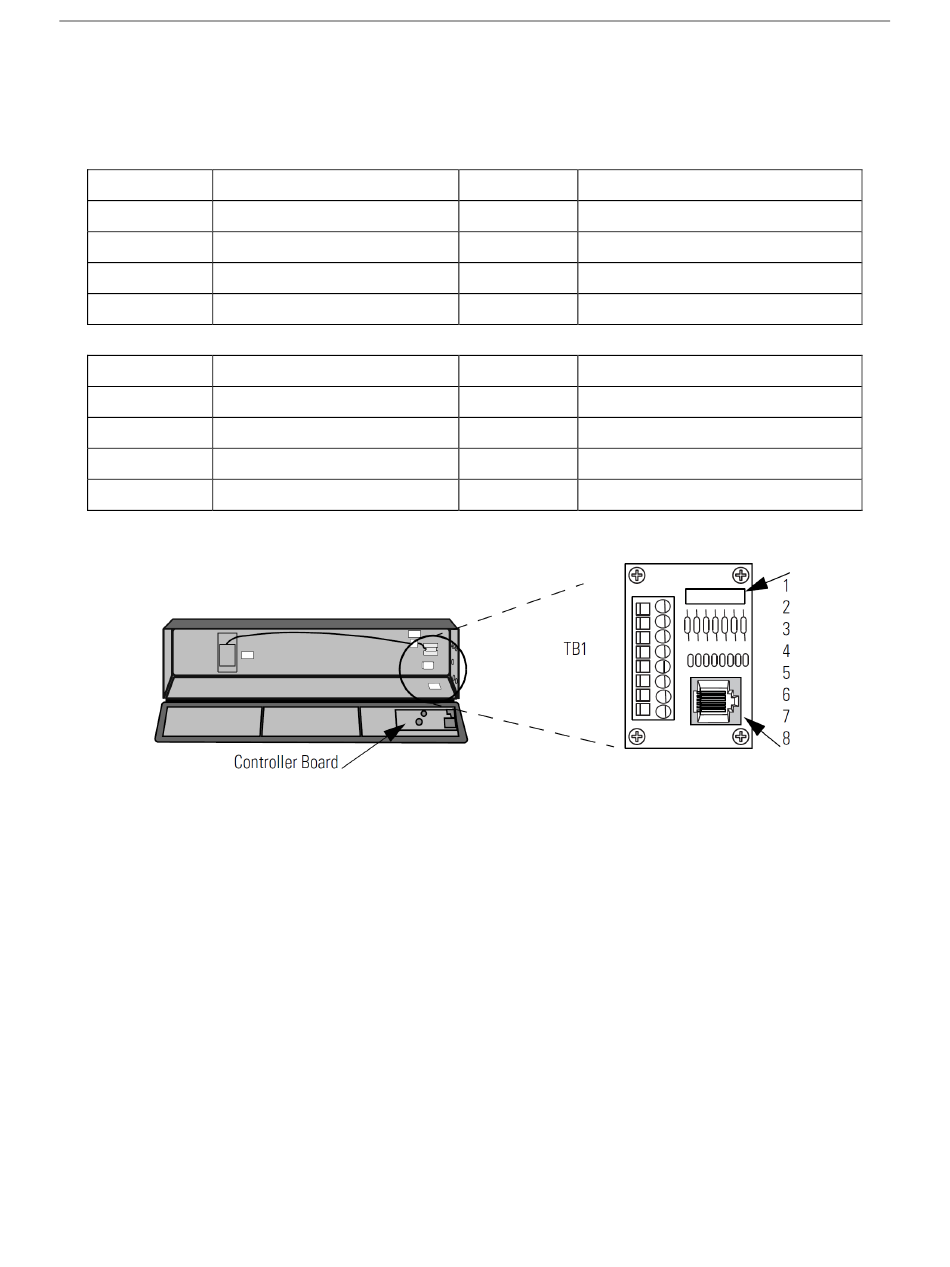

7. Connect the incoming serial wires per pinout.
TB1 can be used for incoming RS-485 or RS-232 serial connection. They
cannot be connected at the same time.
RS-485 is recommended to reduce undesirable electrical interference.
TB1-RS-485
Pin Name
NC
NC
NC
NC
TB1-RS-232
Pin Name
GND
+5 V
RS-232 TX
RS-232 RX
P1 can be used for incoming RS-232 only, although it is optional and not
recommended. P1 is intended for RS-232 application downloads and RS-
485 terminating resistor connection.
See Spectrum PN: 0100215-02 InView Display RS-485 End-of-Line
Installation Instructions, for more information on RS-485 termination.
8. Carefully close the front of the sign case and turn the quarter-turn latches
to the right with a large screwdriver.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with installation guidelines, may cause
harmful interference to radio communications.
