User's Manual 0300277-03 Rev. A
Chapter 1: Installing InView Message Display
Keep a minimum 2.54 cm (1.0 in.) clearance on all sides of the sign for
adequate ventilation.
Hazardous voltage.
Contact with high voltage may cause death or serious injury.
Always disconnect power to sign prior to servicing.
Tension dangereuse.
Tout contact avec une tension élevée peut entraîner la mort ou des
blessures graves.
Déconnectez toujours l'alimentation de l'afficheur avant toute opération
de maintenance

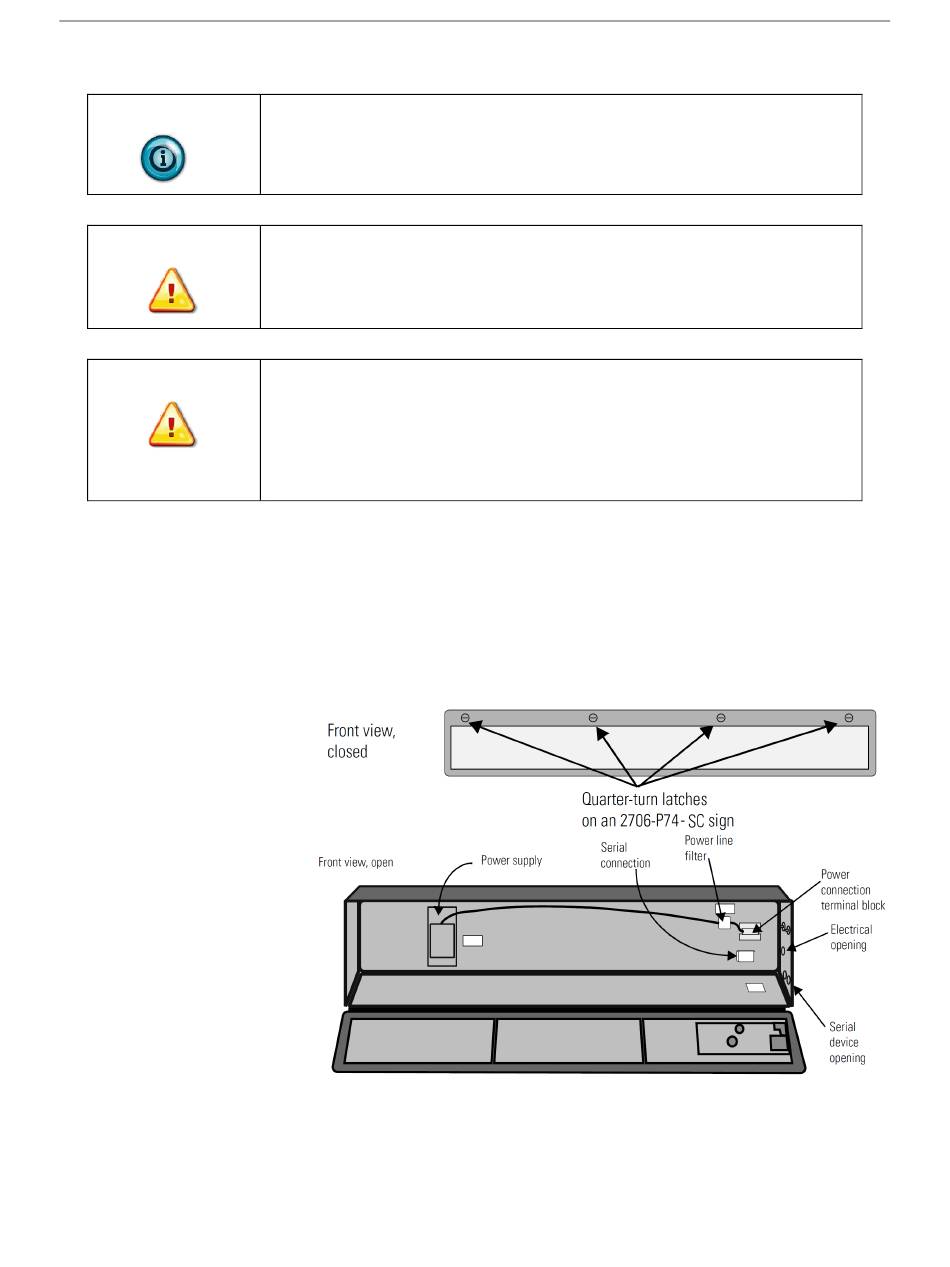

To connect the sign:
1. Open the front of the sign case by turning the quarter-turn latches to the
left with a large screwdriver.
(On the 2706-P72-CNx-SC, there are 3 quarter-turn latches; on the 2706-
P74-CNx-SC there are 4.) Carefully let the front of the case drop
forward.
2. Feed electrical cable through 2.54 cm (1 in.) water-tight conduit, the
outside end of the connector (supplied), the electrical opening in the sign
case, and then through the inside end of the connector.
