A-6 Appendix A: Installing InView Marquee 2706-P9xC2-SC Message Displays
Wire Color
Black
White
Green
NOTE
User's Manual 0300277-03 Rev. A
Wire Name
Line (Hot) connect to L (White terminal)
Neutral connect to N (Blue terminal)
Ground connect to G (Green and Yellow terminal)
6. If you are installing a Communications Module in the left-hand drawer,
install it now (refer to the 0300289-
05_A0(Users_Guide_InView_COMMS_MODULE) manual) for
additional details.
Cable tie locations are supplied within the drawer to help ensure loose
wires are not obstructed by adjacent mechanical obstructions.

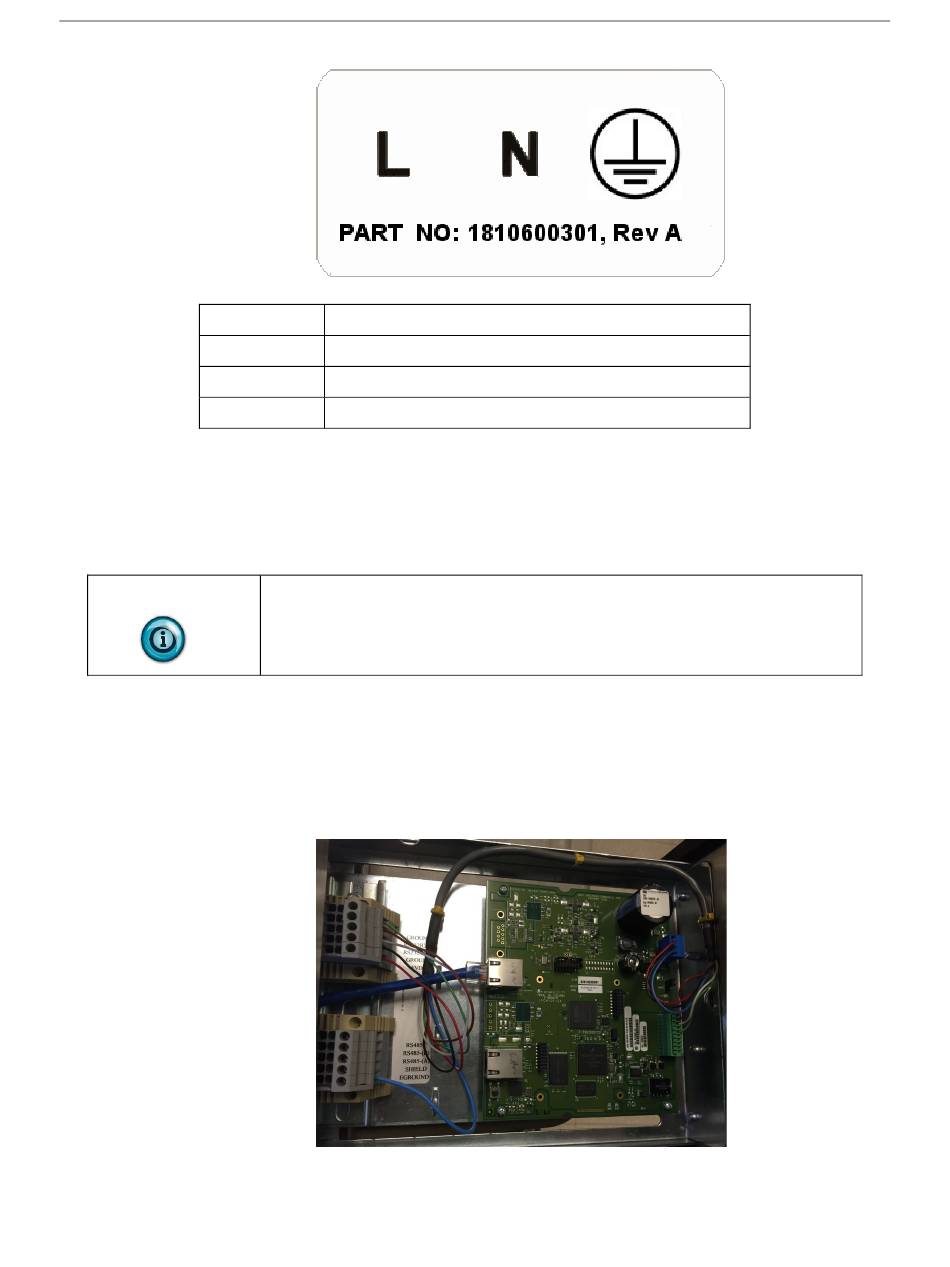

7. Route the Comms cable and tie down the cable as shown below. The
cable must be kept above the board until it is past the slots in the drawer.
Individual wires must also be kept clear of the slots. The InView Comms
Module screws must be torqued to 0.68 N-m (6.0 in-lbs ± 0.100).
8. Route sixteen inches of the Ethernet cable inside the closure and between
the two terminal blocks as shown. This avoids a tight curve in the cable.
9. Use the 0300289-0n_A0(Users_Guide_InView_COMMS_MODULE)
manual to complete setup.
