User's Manual 0300277-03 Rev. A
Chapter 1: Installing InView Message Display

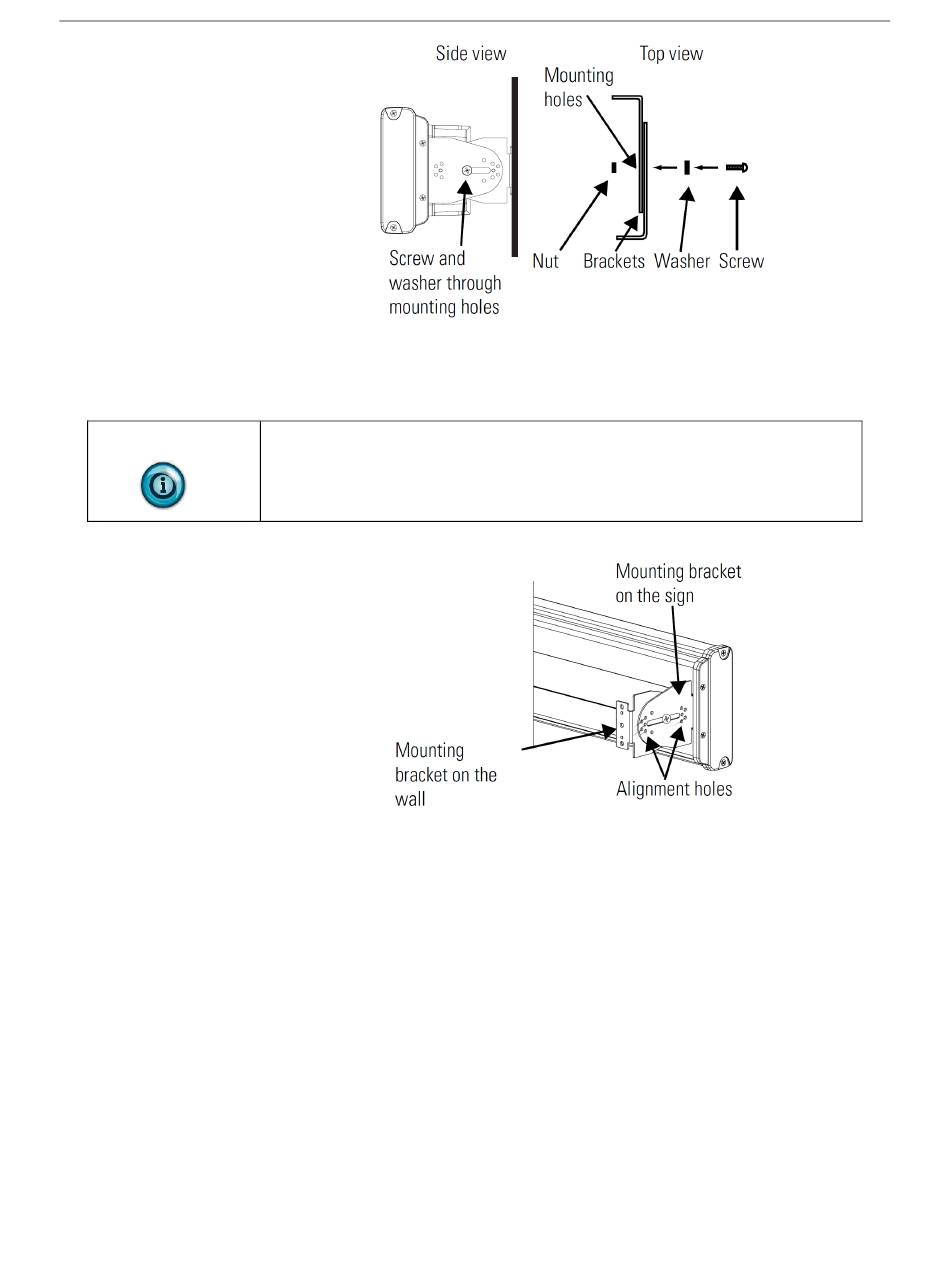

10. Match the alignment holes of the brackets on the sign with the alignment
holes of the brackets on the wall so that the sign is at the desired viewing
angle.
The second mounting bracket is shown here for illustration only. It is
actually mounted to the wall.
11. Fasten the mounting brackets together using two 10-32 × 3/4 Phillips
screws, two 10-32 washers, and two 10-32 lock nuts through selected
alignment holes on each end of the sign.
12. Torque the 5/16 nuts in the mounting holes (See Step 9) to 2.7 Nm (24
lb-in).
