NOTE

Section 1.11 Electrical Connections for 2706-P92-SC and 2706-P94-SC Signs

WARNING
WARNING
Chapter 1: Installing InView Message Display

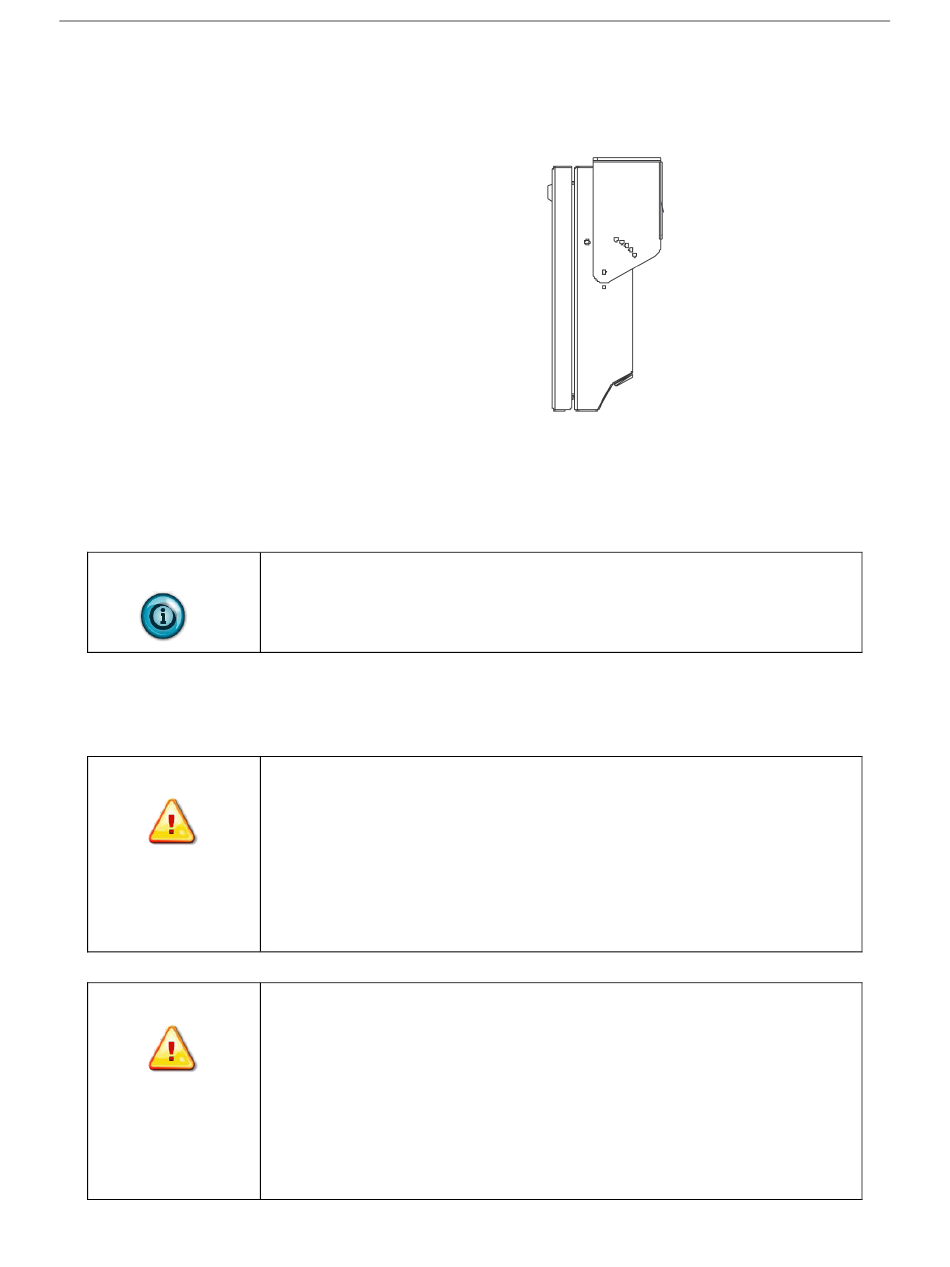

Back-To-Back-Mount
To connect the sign:
1. Attach the brackets to the sign in the ceiling mount position with the hex
bolts supplied.
2. Match the signs together back-to-back and connect them together using a
total of six 5/16" bolts and nuts (not supplied).
3. Attach chains (not supplied) to the top mounting holes of the bracket to
hang the signs from the ceiling.
Use chains capable of supporting 4 times the total weight of the signs.
Hazardous voltage.
Contact with high voltage may cause death or serious injury. Always
disconnect power to sign prior to servicing.
Maintain Separation of circuits. Route the incoming power directly to
the power connection terminal block.
Do not run the power wiring over the logic board or optional
Communication board.
Tension dangereuse.
Toucher un câble a haute tension peut provoquer la mort ou des
blessures graves. Sortir la prise d'alimentation de l'afficheur avant de le
réparer.
Maintenir la séparation des câbles. Brancher le câble d'alimentation
directement au bornier d'alimentation électrique.
Ne pas faire cheminer le câble d'alimentation le long de la carte
electronique numerique ou le long de la carte de communication.
User's Manual 0300277-03 Rev. A
1-21
