Scanner Unit Cover

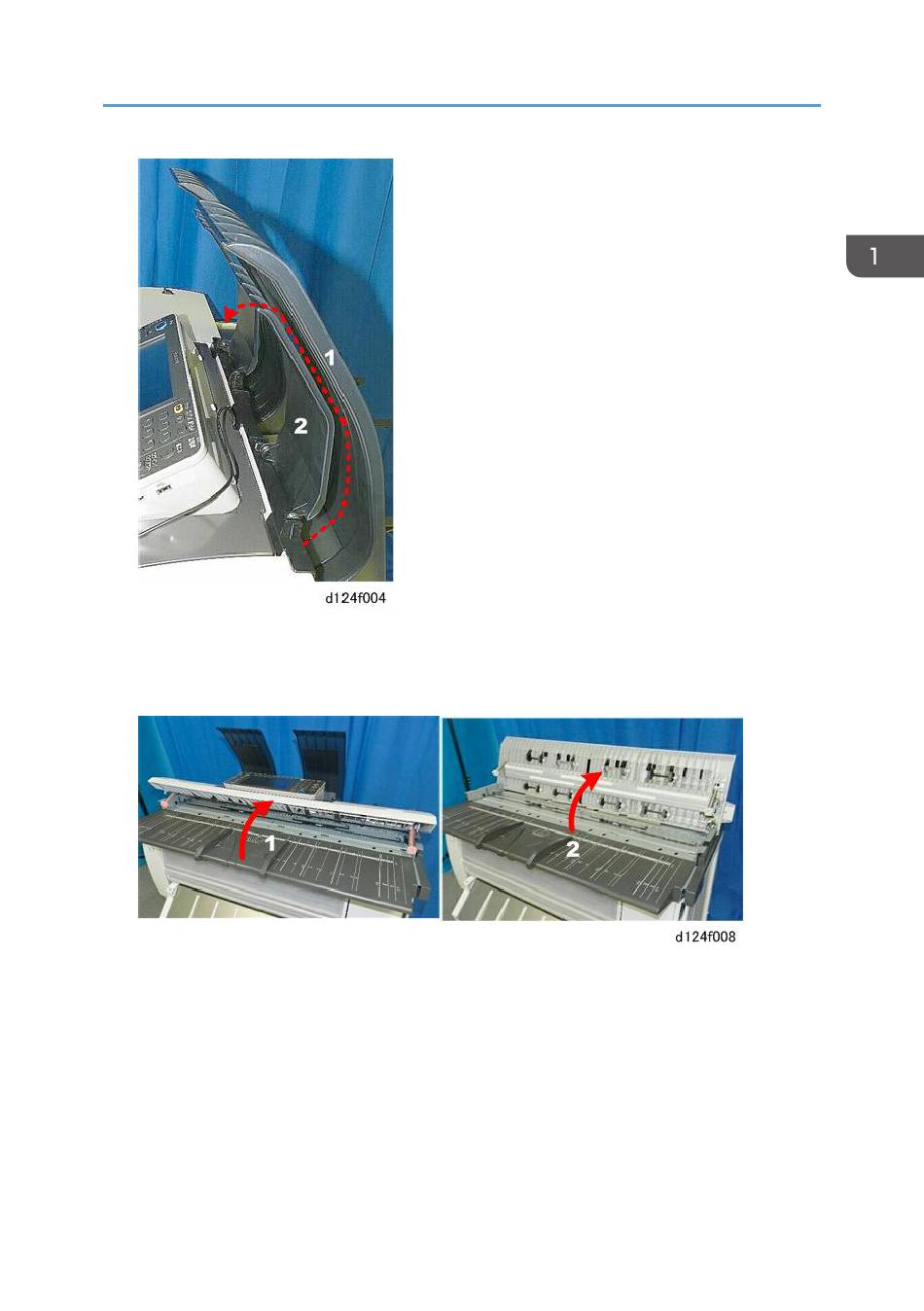

The scanner unit opens easily for removal of paper jams (1), and can be opened to the full vertical
position (2) for servicing (this requires disconnect of the arms on the left and right).
Original Table
The plates on the original table of the scanner unit can be adjusted to accept originals up to 914.4
mm (36 in.) for scanning. Original length is limited to 15 m (49 ft.)
