Scanner Rear Cover; Scanner Left Cover, Scanner Right Cover - Ricoh MP CW2201 Field Service Manual

4. Replacement and Adjustment
• The left and right latches easily come off the top of scanner unit. Check that the latches are
attached on the top of scanner unit soon after removing it.

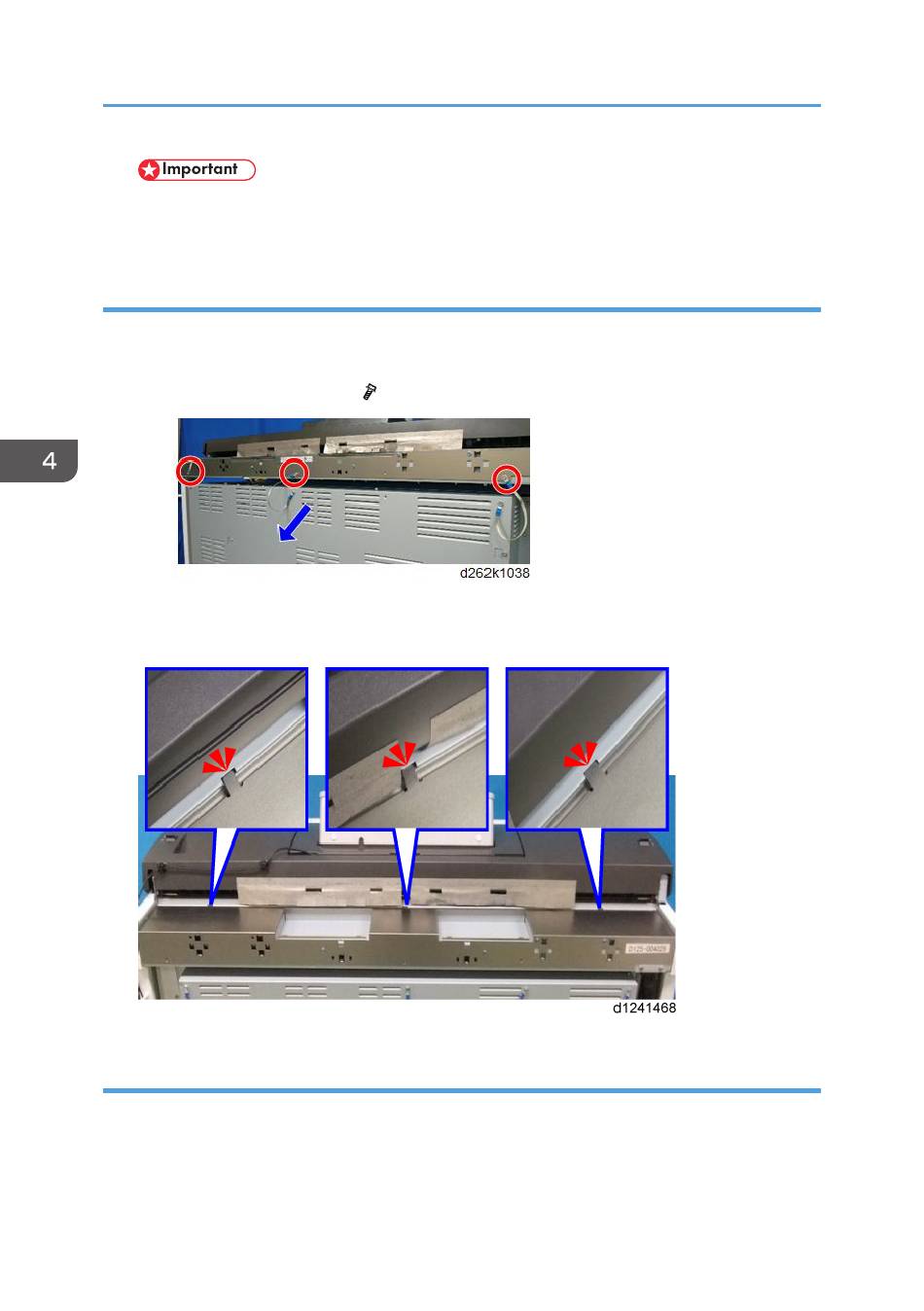

Scanner Rear Cover

Remove
1. Remove the screws of the three ground wires connected to the PCB box and remove
the scanner rear cover. (
Precaution
Set the three guides of the scanner rear cover to the cutout on the rear of the scanner unit.

Scanner Left Cover, Scanner Right Cover

1. Remove the scanner rear cover. (Scanner Rear Cover)
2. Open the top of scanner unit [A].
260
x3)
