Ricoh MP CW2201 Field Service Manual page 170

2. Installation

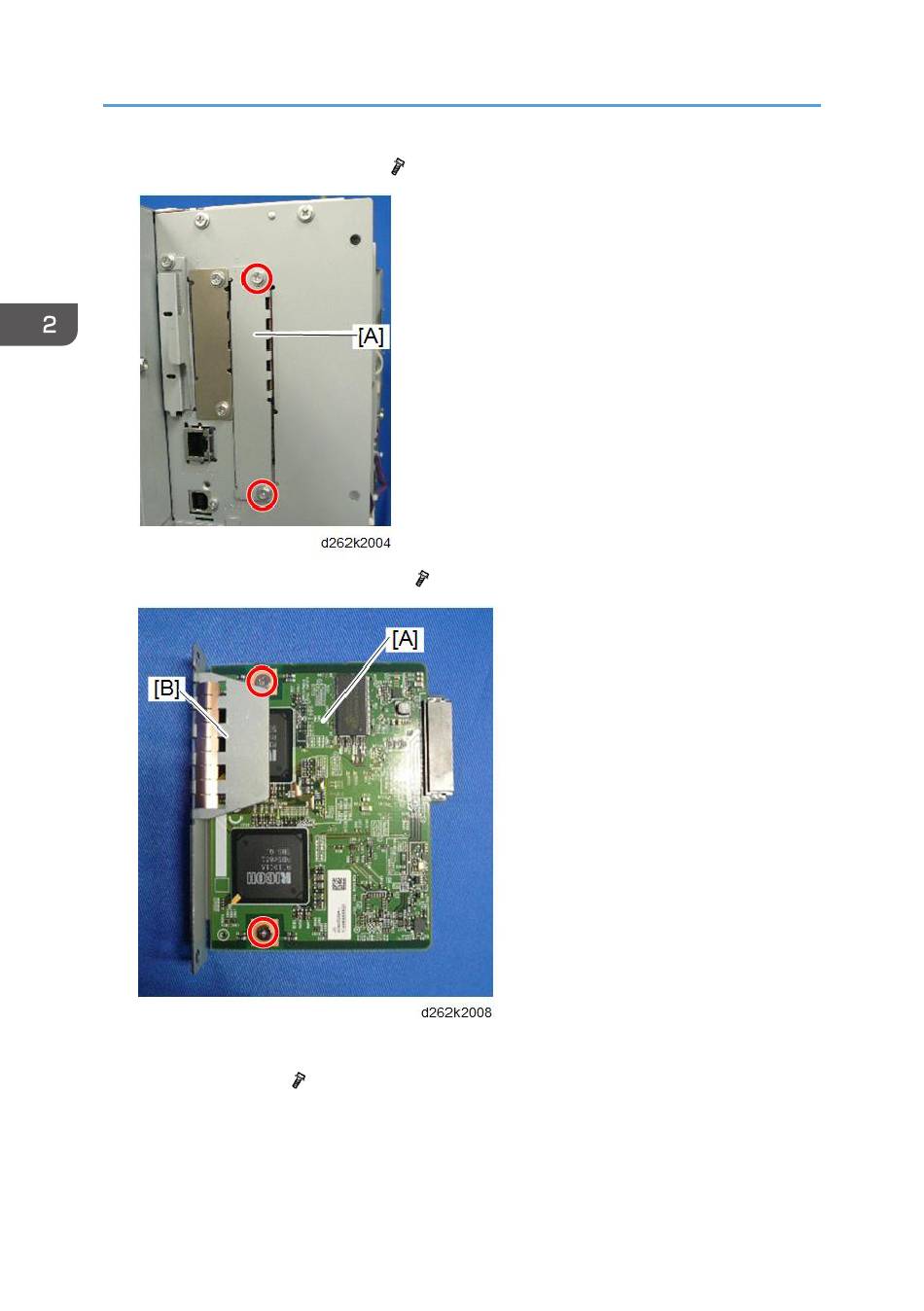

1. Remove the cover for Slot B [A] (
2. Attach the cover [B] to the MLB [A] (
3. Insert the MLB with the cover attached to Slot A.
4. Tighten the screws (
5. Connect the power plug to a wall outlet and set the main power switch to ON.
6. Output the system setup list and check that the system configuration recognizes the option
correctly.
164
x2).
x2).
x2).
