Intel® Server D50DNP Family
Intel® Server Board D50DNP
Intel® D50DNP Module

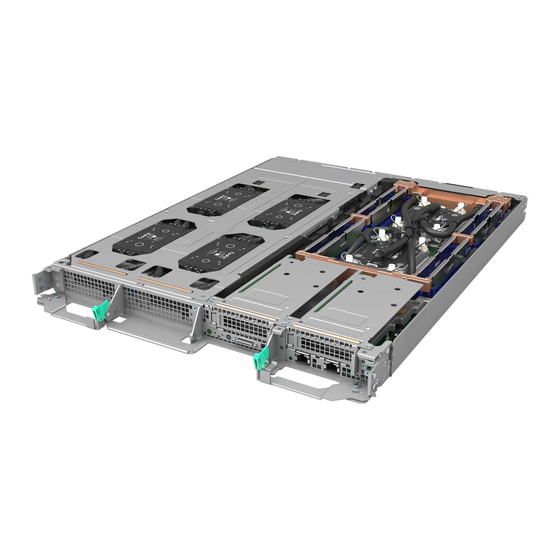

Intel® Server System D50DNP
Integration and Service Guide
A guide providing instructions for the insertion and extraction of
system components and available Intel accessories and spares.
Rev. 1.0
January 2023
Delivering Breakthrough Data Center System Innovation – Experience What's Inside!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intel D50DNP Series
Summary of Contents for Intel D50DNP Series
- Page 1 Intel® Server System D50DNP Integration and Service Guide A guide providing instructions for the insertion and extraction of system components and available Intel accessories and spares. Rev. 1.0 January 2023 Delivering Breakthrough Data Center System Innovation – Experience What’s Inside!
- Page 2 Intel® Server D50DNP Family Integration and Service Guide <This page is intentionally left blank>...
- Page 3 Intel® Server D50DNP Family Integration and Service Guide Document Revision History Date Revision Changes January 2023 Initial public release.
- Page 4 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.
- Page 5 Intel recommends that the following steps be taken when performing any procedures described within this document or while performing service to any computer system.
- Page 6 • Remove all installed modules from the system before attempting to install the system into the rack. Due to the weight of a system, Intel recommends using a mechanical lift to install system into a rack. • Or handling the system with two people supporting the system from the sides.
- Page 7 Note: This requirement applies only to Intel® Server System products released in 2019 or later. Legacy Intel® Server System products released in 2018 or earlier provide safeguards that require no additional access restrictions.
-
Page 8: Table Of Contents
Intel® Server D50DNP Family Integration and Service Guide Contents 1. Introduction ................................20 About This Document ..............................20 1.1.1 System Integration ................................ 20 1.1.2 System Service ................................21 Reference Documents and Support Collaterals ....................22 2. L6 Integrated System Essential System Component Installation ..............23 Air Duct Removal / Installation .......................... - Page 9 Intel® Server D50DNP Family Integration and Service Guide 3.4.4 Standard Riser Assembly Installation ........................68 3.4.5 MCIO* Riser Assembly Installation ......................... 69 3.4.6 Riser Assembly Installation into Liquid-Cooled Modules ................70 Liquid-Cooled Add-In Card Installation (D50DNP1MHCPLC and D50DNP1MFALLC Modules) .. 71 PCIe* Accelerator Module Add-In Card Installation (D50DNP2MFALAC Module) ......
- Page 10 Getting Help ............................193 Appendix B. Memory Population Rules ........................ 194 DDR5 DIMM Population Rules ..........................194 Intel® Optane™ Persistent Memory 300 Series Module Rules ..............194 Recommended Memory Configurations ......................195 Intel® DDR5 DIMM Support Disclaimer ......................197 Appendix C.
- Page 11 Intel® Server D50DNP Family Integration and Service Guide Processor Initialization Error Summary ......................217 Appendix G. Product Safety – Multi-Language ....................218 Appendix H. Glossary ............................... 234...
- Page 12 Intel® Server D50DNP Family Integration and Service Guide List of Figures Figure 1. System Directional Reference ............................24 Figure 2. Removing the Air Duct (Half-width Modules) ......................25 Figure 3. Installing the Air Duct (Half-width Modules) ....................... 25 Figure 4. Removing the Air Duct (D50DNP2MFALAC Module) ....................26 Figure 5.
- Page 13 Intel® Server D50DNP Family Integration and Service Guide Figure 40. Applying Thermal Gap Filler ............................47 Figure 41. Installing Liquid-Cooling Loop............................48 Figure 42. Securing the Processor Cold Plates ..........................49 Figure 43. Removing Liquid-Cooling Loop Carrier ........................49 Figure 44. Securing Liquid-Cooling Loop ............................50 Figure 45.
- Page 14 Figure 110. 1U Compute Module Front Panel Feature Identification ................. 96 Figure 111. 2U Management Module Front Panel Feature Identification ................. 96 Figure 112. Intel® Data Center GPU Max Series Accelerator Module Feature Identification ........97 Figure 113. 2U PCIe* Accelerator Module Front Panel Feature Identification ..............97 Figure 114.
- Page 15 Intel® Server D50DNP Family Integration and Service Guide Figure 124. Onboard LED Location ..............................106 Figure 125. Removing a Module ..............................112 Figure 126. Installing a Module ................................ 112 Figure 127. Removing the Air Duct ..............................113 Figure 128. Installing the Air Duct ..............................113 Figure 129.
- Page 16 Intel® Server D50DNP Family Integration and Service Guide Figure 166. Reinstall the Socket Cover ............................134 Figure 167. Processor Removal from Processor Carrier Clip and Processor Cold Plate ......... 134 Figure 168. Processor Carrier Clip Removal from Processor Cold Plate ................ 135 Figure 169.
- Page 17 Intel® Server D50DNP Family Integration and Service Guide Figure 208. Removing Screws on Liquid-Cooling Loop ......................158 Figure 209. Installing the Liquid-Cooling Loop Carrier ......................159 Figure 210. Loosening Processor Cold Plates ........................... 159 Figure 211. Removing Liquid-Cooling Loop ..........................160 Figure 212.
- Page 18 Figure 263. Installing System Battery ............................192 Figure 264. Front Control Panel Features ........................... 198 Figure 265. Jumper Block Location ..............................201 Figure 266. Intel® Light-Guided Diagnostics - POST Code LED Location ............... 202 Figure 267. POST Error LED Location ............................215...
- Page 19 Table 11. DDR5 SDRAM DIMMs Compatible with Intel® Optane™ PMem Modules ............ 195 Table 12. Standard DDR5 DIMM per Socket Population Configurations ............... 196 Table 13. DDR5 SDRAM DIMM and Intel® Optane™ PMem 300 Series Module per Socket Population Configurations ....................................196 Table 14.
-
Page 20: Introduction
For related documents, see Table Notes: • In this document, the Intel® D50DNP Modules term refers to all module types supported by the Intel® Server D50DNP Family: compute module, management module, Intel® Data Center GPU Max Series accelerator module, and PCIe* accelerator module. -
Page 21: System Service
Chapter 7: FRU Replacement. Installation and replacement procedures for system field replaceable units (FRUs) are described here. Appendix A: Getting Help. The support and contact information relevant for Intel server system is provided in this chapter. Appendix B: General Memory Population Rules. This is the summary of general memory population rules for Intel®... -
Page 22: Reference Documents And Support Collaterals
Intel® Data Center Manager (Intel® DCM) information Intel® Data Center Manager (Intel® DCM) Console User Guide Public Note: Intel Confidential documents are made available under a nondisclosure agreement (NDA) with Intel and must be ordered through your local Intel representative. -
Page 23: L6 Integrated System Essential System Component Installation
To complete the L6 integration of the Intel® Server D50DNP to be power-on ready, a chassis from the Intel® Server Chassis FC2000 v2 family is required to contain the L6 integrated modules. The chassis for L6 systems is sold separately. -
Page 24: Figure 1. System Directional Reference
Intel® Server D50DNP Family Integration and Service Guide Mixing different types of modules in the same chassis can be done as follows: • Up to two 1U air-cooled compute modules with one 2U management module Notes: • Mixing liquid-cooled modules with air-cooled modules in a single system is not supported. -
Page 25: Air Duct Removal / Installation
Intel® Server D50DNP Family Integration and Service Guide Air Duct Removal / Installation To maintain system thermals for air-cooled modules, the air duct must always be in place when the system is operational. Removal of the air duct is necessary when installing or replacing any system component. -
Page 26: Air Duct Removal (D50Dnp2Mfalac Module)
Intel® Server D50DNP Family Integration and Service Guide 2.1.3 Air Duct Removal (D50DNP2MFALAC Module) Figure 4. Removing the Air Duct (D50DNP2MFALAC Module) 1. Push the loops on both sides of the air duct inwards to release the latches (see Letter A). -
Page 27: 2.2 Processor Assembly And Installation
2.2.1 Heat Sinks The Intel® D50DNP air-cooled modules support 1U height heat sinks and 2U height heat sinks as shown in the following figures. The compute module uses 1U height heat sinks. The management module and PCIe* accelerator module use 2U height heat sinks. -
Page 28: Figure 8. 2U Heat Sinks
Intel® Server D50DNP Family Integration and Service Guide Figure 8. 2U Heat Sinks The following figure displays a module with 1U front and back heat sinks installed. Only 1U standard front heat sink and 1U back heat sink are shown. However, the concept applies to modules using 1U EVAC front heat sink and 1U back heat sink or 2U front heat sink and 2U back heat sink. -
Page 29: Processor Carrier Clips
The carrier clip designation (E1A, E1B, or E1C) is marked on each carrier clip. The designation for the needed carrier clip is also marked on each processor package. The heat sinks for the Intel® D50DNP Modules support all three carrier clips. -
Page 30: Figure 11. Processor Components And Processor Socket Reference Diagram With Standard Heat Sink
Intel® Server D50DNP Family Integration and Service Guide Figure 11. Processor Components and Processor Socket Reference Diagram with Standard Heat Sink To properly assemble the PHM and to install it onto the server board, the procedures described in the following sections must be followed in the order specified. These instructions assume that all PHM components are new, and the Thermal Interface Material (TIM) is already applied to the bottom of the heat sink. -
Page 31: Figure 12. Installing The Processor Carrier Clip Onto The Processor - Part 1
Intel® Server D50DNP Family Integration and Service Guide Figure 12. Installing the Processor Carrier Clip onto the Processor – Part 1 Figure 13. Installing the Processor Carrier Clip onto the Processor – Part 2 1. Align the Pin 1 indicator on the processor carrier clip with the Pin 1 indicator of the processor. -
Page 32: Figure 14. Heat Sink Handling
5. Locate the processor heat sink. To avoid damage, grasp it by its narrower sides as shown in the following figure. Caution: Fin edges of the processor heat sink are very sharp. Intel recommends wearing thin ESD protective gloves when handling the PHM during the following procedures. -
Page 33: Figure 16. Aligning Pin 1 Indicator
Intel® Server D50DNP Family Integration and Service Guide Figure 16. Aligning Pin 1 Indicator 9. Align the Pin 1 indicator of the processor carrier clip with one of the diagonally cut corners on the base of the heat sink. Or (if present) look for the Pin 1 indicator on the corner of the heat sink label. -
Page 34: Figure 18. Phm Alignment With The Socket Assembly
Intel® Server D50DNP Family Integration and Service Guide Caution: If debris is observed, blow it away gently with an air blower. Do not use tweezers or any other hard tools to remove the debris. Figure 18. PHM Alignment with the Socket Assembly Caution: Processor socket pins are delicate and bend easily. -
Page 35: Assembly And Installation For Evac Heat Sinks
8. Using a T30 Torx* screwdriver, tighten the heat sink fasteners to 8 in-lb. No specific sequence is needed for tightening. General diagonal bolt tightening order can be used. Note: Intel strongly recommends installing both processors. If only one processor is installed, do not install a processor heat sink on an empty socket. -
Page 36: Figure 21. Processor Components And Processor Socket Reference Diagram With Evac Heat Sink
Intel® Server D50DNP Family Integration and Service Guide Figure 21. Processor Components and Processor Socket Reference Diagram with EVAC Heat Sink To properly assemble the PHM and install it onto the server board, the procedures described in the following sections must be followed in the order specified. These instructions assume that all the PHM components... -
Page 37: Figure 22. Installing The Processor Carrier Clip Onto The Processor - Part 1
Intel® Server D50DNP Family Integration and Service Guide 2.2.4.1 Processor Heat Sink Module (PHM) Assembly Caution: Full ESD precautions should be followed to perform assembly and installation of the PHM to the server board. Wear ESD gloves to prevent electrostatic damage and oxidation or foreign materials on processor package and land pads. -
Page 38: Figure 24. Handling Heat Sink
5. Locate the processor heat sink. To avoid damage, grasp it by its narrower sides as shown in the following figure. Caution: Fin edges of the processor heat sink are very sharp. Intel recommends wearing thin ESD protective gloves when handling the PHM during the following procedures. -
Page 39: Figure 26. Pin 1 Indicator Alignment
Intel® Server D50DNP Family Integration and Service Guide Figure 26. Pin 1 Indicator Alignment 9. Align the Pin 1 indicator of processor carrier clip with one of the diagonally cut corners on the base of the heat sink. Or (if present) look for the Pin #1 indicator on the corner of the heat sink label. -
Page 40: Figure 28. Socket Protective Cover Removal
Intel® Server D50DNP Family Integration and Service Guide Caution: Do not touch the socket pins. The pins inside the processor socket are extremely sensitive. A damaged processor socket may produce unpredictable system errors. Figure 28. Socket Protective Cover Removal 4. Remove the socket protective cover by squeezing the finger grips (see Letter A) and pulling the cover up (see Letter B). -
Page 41: Figure 30. Phm Installation Onto The Server Board
Intel® Server D50DNP Family Integration and Service Guide Caution: Processor socket pins are delicate and bend easily. Use extreme care when placing the PHM on the processor socket. Do not drop it. Figure 30. PHM Installation onto the Server Board 6. -
Page 42: Assembly And Installation For Liquid-Cooled Configurations
Tighten to 5 in-lb. (see Letter C). 18. Reinstall the air duct (see Section 2.1.2). Note: Intel strongly recommends installing both processors. If only one processor is installed, do not install a processor heat sink on an empty socket. -
Page 43: Figure 33. Installing The Processor Carrier Clip Onto The Processor - Part 1
Intel® Server D50DNP Family Integration and Service Guide Caution: Full ESD precautions should be followed to perform assembly and installation of the PHM to the server board. Wear ESD gloves to prevent electrostatic damage and oxidation or foreign materials on processor package and land pads. -
Page 44: Figure 35. Socket Protective Cover Removal
Intel® Server D50DNP Family Integration and Service Guide Caution: Do not touch the socket pins. The pins inside the processor socket are extremely sensitive. A damaged processor socket may produce unpredictable system errors. Figure 35. Socket Protective Cover Removal 5. Remove the socket protective cover by squeezing the finger grips (see Letter A) and pulling the cover up (see Letter B). -
Page 45: Liquid-Cooling Loop Installation (D50Dnp1Mhcplc Module)
Intel® Server D50DNP Family Integration and Service Guide Liquid-Cooling Loop Installation (D50DNP1MHCPLC Module) The liquid-cooled systems are designed to connect to a non-Intel coolant distribution unit using Staubli* SCG 09 quick disconnect couplings. The internal cooling for this configuration is done using a liquid-cooling loop. -
Page 46: Figure 38. Liquid-Cooling Loop Components
Intel® Server D50DNP Family Integration and Service Guide Figure 38. Liquid-Cooling Loop Components Required Tools and Supplies Anti-static wrist strap and conductive workbench pad (recommended) • Phillips* head screwdriver #2 • T30 Torx* screwdriver • Liquid-cooling VR TIM application tools (iPC TNPLCVRTLS) •... -
Page 47: Figure 40. Applying Thermal Gap Filler
(see Letter K). Notes: For 4th Gen Intel® Xeon® Scalable XCC and for Intel® Xeon® CPU Max Series processor models, apply • 248 cubic millimeters of thermal gap filler to cover the VR components with a minimum thickness of 1 mm. -
Page 48: Figure 41. Installing Liquid-Cooling Loop
Intel® Server D50DNP Family Integration and Service Guide Figure 41. Installing Liquid-Cooling Loop 6. Set all eight anti-tilt wires in the liquid-cooling loop to the inward position (see Letter A). 7. With your fingers, hold the liquid-cooling loop and carefully place it into the module (see Letter B), ensuring that the processor cold plates are properly aligned with the bolster plate’s alignment pins. -
Page 49: Figure 42. Securing The Processor Cold Plates
Intel® Server D50DNP Family Integration and Service Guide Figure 42. Securing the Processor Cold Plates 8. Set all eight anti-tilt wires in the liquid-cooling loop to the outward position (see Letter A). 9. Using a T30 Torx* screwdriver, tighten the cold plate fasteners to 8 in-lb (see Letter B). No specific sequence is needed. -
Page 50: Figure 44. Securing Liquid-Cooling Loop
Intel® Server D50DNP Family Integration and Service Guide Figure 44. Securing Liquid-Cooling Loop 11. Using three 8-mm long screws with washers (see Letter A), secure the liquid-cooling loop to the server board. Tighten to 5 in-lb. 12. Repeat the previous step using fifteen 12-mm long screws with washers (see Letter B). Tighten to 5 in-lb. -
Page 51: Memory Module Installation
Liquid-cooled configurations do not support Intel® Optane™ PMem 300 series modules. These configurations require all memory slots to be populated with DDR5 DIMMs. DDR5 DIMM and Intel® Optane™ PMem 300 series modules are commonly referred to as “memory module” in the following instructions. -
Page 52: Memory Installation For Liquid-Cooled Modules
Letter D). 6. Ensure that the ejection tabs are firmly in place (see Letter E). Note: Intel® Optane™ PMem devices require additional steps to enable and configure them. Refer to the appropriate Intel® Optane™ PMem documentation to complete the installation process. -
Page 53: Figure 48. Memory Cooling Kit
Intel® Server D50DNP Family Integration and Service Guide Figure 48. Memory Cooling Kit Figure 49. DIMM Latch Tool Location 1. Detach the DIMM latch tool from the cooling loop 2. Carefully remove the memory module from its packaging, taking care to handle it only by its outer... -
Page 54: Figure 50. Attaching Thermal Pad To Dimm Pmic
Intel® Server D50DNP Family Integration and Service Guide Figure 50. Attaching Thermal Pad to DIMM PMIC 3. Carefully detach one PMIC thermal pad from the paper and attach it to the DIMM power management integrated circuit (PMIC) as show on the previous picture. -
Page 55: Figure 52. Mylar And Dimm Clip Installation
Intel® Server D50DNP Family Integration and Service Guide Figure 52. Mylar and DIMM clip installation 11. Wrap the Mylar pad around the memory heat spreader line and two adjacent DIMMs and Install the DIMM clip over the Mylar pad like on the previous picture. Make sure that the arrows on the clips look left for CPU 0 and look right for CPU 1. -
Page 56: Module Installation
Intel® Server D50DNP Family Integration and Service Guide Module Installation For installation procedures associated with all other system options and accessories, refer to Chapter 3. If no other installations are required, the module must be installed in the chassis using the following steps. -
Page 57: System Options / Accessory Kit Installation
System Options / Accessory Kit Installation This chapter provides instructions for the integration of system options and other accessories. If your integrated Intel server did not come preinstalled with processors, memory, or power supplies, installation procedures for these components are in... -
Page 58: Installing The Fixed Rail Kit
Installing the Fixed Rail Kit The Intel® Server D50DNP Family includes a fixed rail kit that serves as a shelf for the system installed into a rack. When a system is installed onto the fixed rails, it can be secured to both the rail and the rack via a pair of thumbscrews on the front of the server system. -
Page 59: Installing The Chassis Into A Rack
3.1.2 Installing the Chassis into a Rack Important Safety Notes: Due to the heavy weight of a fully configured system, Intel recommends: • Use a mechanical lift to aid with the installation of the system into the rack. • Or remove all installed modules from the system and use at least two people to install the system into the rack. -
Page 60: Module Removal / Installation
Intel® Server D50DNP Family Integration and Service Guide Module Removal / Installation Required Tools and Supplies Anti-static wrist strap and conductive workbench pad (recommended) • 3.2.1 Module Removal 1. Power down the module using the power button on the front panel of the module. -
Page 61: Module Installation
Intel® Server D50DNP Family Integration and Service Guide 3.2.2 Module Installation Required Tools and Supplies Anti-static wrist strap and conductive workbench pad (recommended) • 1U module shown Figure 60. Installing a Module 1. Ensure that the lever in front of the module is lowered. If not, press the green latch inward and lower the lever (see Letter A). -
Page 62: Air Duct Removal (Half-Width Modules)
Intel® Server D50DNP Family Integration and Service Guide 3.3.1 Air Duct Removal (Half-width Modules) 1U module shown Figure 61. Removing the Air Duct (Half-width Modules) 1. Press the latches on both sides of the module inwards (see Letter A). 2. Carefully lift the front edge of the air duct (see Letter B). -
Page 63: Air Duct Removal (D50Dnp2Mfalac Module)
Intel® Server D50DNP Family Integration and Service Guide 3.3.3 Air Duct Removal (D50DNP2MFALAC Module) Figure 63. Removing the Air Duct (D50DNP2MFALAC Module) 1. Push the loops on both sides of the air duct inwards to release the latches (see Letter A). -
Page 64: Low-Profile Add-In Card Installation
Intel® Server D50DNP Family Integration and Service Guide Low-Profile Add-In Card Installation The Intel® Server D50DNP Family supports either up to two (in 1U modules) or up to four (in 2U modules) low-profile PCIe* add-in cards. This section provides assembly and installation procedures for modules that require low-profile add-in card installation. -
Page 65: Figure 66. 1U Mcio* Riser
Intel® Server D50DNP Family Integration and Service Guide Important Note: D50DNP1MHEVAC does not support a low-profile PCIe* 5.0 add-in card on riser slot 2 because the EVAC extension occupies this space. M.2 SSD is still supported on riser slot 2. -
Page 66: Standard Riser Assembly Removal
Intel® Server D50DNP Family Integration and Service Guide Figure 68. 2U Riser Assembly and Riser Card Features Required Tools and Supplies PCIe* add-in card • Anti-static wrist strap and conductive workbench pad (recommended) • • Phillips* head screwdriver #1 and #2 3.4.1... -
Page 67: Mcio* Riser Assembly Removal
Intel® Server D50DNP Family Integration and Service Guide 3.4.2 MCIO* Riser Assembly Removal 1U air-cooled module shown Figure 70. Removing the Screws for MCIO Riser Assembly 1. Using Phillips screwdriver #1 remove two screws that secure the riser assembly to the front of the module (see Letter A). -
Page 68: Pcie* Add-In Card Installation
Intel® Server D50DNP Family Integration and Service Guide 3.4.3 PCIe* Add-In Card Installation The following procedures are identical for both 1U and 2U riser card assemblies. 1U riser card assembly shown Figure 72. Installing an Add-In Card If present, carefully remove the metal filler plate from the metal frame of the riser assembly •... -
Page 69: Mcio* Riser Assembly Installation
Intel® Server D50DNP Family Integration and Service Guide 1. Align the riser card to the riser slot on the server board (see Letter A). 2. Carefully push down on the riser assembly until the riser card is securely seated in the riser slot. -
Page 70: Riser Assembly Installation Into Liquid-Cooled Modules
Intel® Server D50DNP Family Integration and Service Guide 1. Ensure that the screw holes of the riser assembly are aligned with the mounting holes of the module. 2. Using Phillips screwdriver #2 tighten the captive screw at the back of the riser assembly to 5 in-lb. -
Page 71: Liquid-Cooled Add-In Card Installation (D50Dnp1Mhcplc And D50Dnp1Mfallc Modules)
Intel® Server D50DNP Family Integration and Service Guide Liquid-Cooled Add-In Card Installation (D50DNP1MHCPLC and D50DNP1MFALLC Modules) 1U liquid-cooled module can accommodate up to two low-profile liquid-cooled PCIe* add-in cards. These models are supported: • NVIDIA* MCX653105A-HDAL NVIDIA* MCX653106A-HDAL • NVIDIA* MCX75310AAS-HEAL •... -
Page 72: Pcie* Accelerator Module Add-In Card Installation (D50Dnp2Mfalac Module)
Intel® Server D50DNP Family Integration and Service Guide PCIe* Accelerator Module Add-In Card Installation (D50DNP2MFALAC Module) The PCIe* accelerator module includes a special riser assembly that can support up to four x16 full height, full length, double width PCIe* add-in cards for acceleration solutions. The PCIe* accelerator module riser assembly is on the right side of the module. -
Page 73: Figure 78. Pcie* Accelerator Module Riser Card 1 Front View
Programmable acceleration card with the Intel® Stratix® 10 SX FPGA • • Intel® Data Center GPU Max Series-based PCIe x16 accelerator add-in card Intel® Ethernet Network Adapter E810 Series • Each accelerator add-in card requires corresponding PCIe* accelerator module card Kit matching the card type. -
Page 74: Figure 80. Replacing The Add-In Card Metal Bracket
Intel® Server D50DNP Family Integration and Service Guide Figure 80. Replacing the Add-In Card Metal Bracket 1. Remove the screws that hold the original metal bracket on the accelerator add-in card (see Letter A). 2. Uninstall the original metal bracket (see Letter B) and replace it with the metal bracket in the accessory kit (see Letter C). -
Page 75: Figure 82. Lifting The Flap Up On The Front Side Of The Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 82. Lifting the Flap up on the Front Side of the Riser Assembly 7. Remove the screw holding the flap on the front side of the riser assembly and lift the flap up. -
Page 76: Figure 84. Installing The Accelerator Add-In Card In The Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 84. Installing the Accelerator Add-In Card in the Riser Assembly 10. Align the bracket of the accelerator add-in card with the opening of the riser assembly. 11. Route the add-in card power cable through the plastic shield opening in the rear of the riser assembly. -
Page 77: Figure 86. Installing The Pcie* Accelerator Module Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide 15. Repeat the step 1 through 14 to install other accelerator cards as needed. 16. Install the screw that holds the flap on the front side of the riser assembly. Figure 86. Installing the PCIe* Accelerator Module Riser Assembly 17. -
Page 78: 2.5" U.2 Front Drive Installation
Intel® Server D50DNP Family Integration and Service Guide 2.5” U.2 Front Drive Installation The D50DNP2MHSVAC and D50DNP2MFALAC modules support up to two hot-swap 2.5” form factor U.2 Solid State Drives (SSDs). Each drive is installed into a tool-less drive carrier. This section provides instructions for drive extraction from and installation into the chassis drive assembly. -
Page 79: Figure 90. 2.5" Drive Installation Into The Carrier
Intel® Server D50DNP Family Integration and Service Guide Figure 90. 2.5” Drive Installation into the Carrier 2. Carefully unpack the new drive, taking care not to touch any of the connector pins on the back side of the drive. 3. Direct the drive edge connector toward the back of the drive carrier. -
Page 80: Drive Carrier Installation
Intel® Server D50DNP Family Integration and Service Guide 3.7.3 Drive Carrier Installation Figure 92. Drive Carrier Installation into the Chassis 1. Align the drive assembly with the open drive bay. 2. With the lever in the open position, insert the drive assembly into the drive bay (see Letter A) and push forward until the drive edge connector engages with the backplane connector. -
Page 81: M.2 Ssd Installation
Intel® Server D50DNP Family Integration and Service Guide M.2 SSD Installation Each M.2 SSD requires a heat sink or a cold plate to maintain proper working temperature. For air-cooled modules, the M.2 SSD heat sink is not installed at the factory. It is available as an accessory (DNPM2HS) and should be ordered separately for each M.2 SSD. -
Page 82: M.2 Ssd Installation For Air-Cooled Configurations
Intel® Server D50DNP Family Integration and Service Guide 1. Peel off the protective film from one side of the short pad and attached it to the rear side of the SSD under the tallest SSD component. This is usually the SSD controller IC. -
Page 83: M.2 Ssd Heat Sink Installation For Air-Cooled Configurations
Intel® Server D50DNP Family Integration and Service Guide 3.8.3 M.2 SSD Heat Sink Installation for Air-Cooled Configurations Figure 95. Installing M.2 Heat Sink 1. Peel off the protective film from the long thermal pad attached to the heat sink. 2. Insert the tab at the edge of the heat sink into the slot on the riser assembly (see Letter A) making sure the heat sink side covered with the thermal pad is facing the M.2 SSD. -
Page 84: Thermal Pad Installation For Liquid-Cooled Configurations
Intel® Server D50DNP Family Integration and Service Guide Figure 96. M.2 SSD cold plate kit 1. If needed, adjust the position of the M.2 SSD mounting standoff to accommodate 110mm M.2 SSD. Using 3/16” hex nut driver, remove the standoff from the 80mm position and install it into the 110mm position. -
Page 85: M.2 Ssd Installation For Liquid-Cooled Configurations
Intel® Server D50DNP Family Integration and Service Guide 110-mm M.2 SSD 80-mm M.2 SSD Figure 97. Installing the Thermal Interface Material Pads on M.2 SSD 1. Peel off the protective film from the thermal pad and attach it to the rear side of the M.2 SSD. Center the pad vertically and horizontally. -
Page 86: M.2 Ssd Cold Plate Installation For Liquid-Cooled Configurations
Intel® Server D50DNP Family Integration and Service Guide 3.8.7 M.2 SSD Cold Plate Installation for Liquid-Cooled Configurations Figure 99. Installing the M.2 cold Plate If present, peel off the protective film from the thermal interface material pad attached to the cold plate. -
Page 87: Trusted Platform Module (Tpm) Installation
This section provides instructions how to install a Trusted Platform Module (TPM) in the system. Refer to the Intel® Server D50DNP Family Configuration Guide for available options. The TPM kit comes with two different screws: Phillips* head screw and a tamper resistant head screw. The tamper resistant screw can be installed only once. -
Page 88: Ethernet Management Port Module (Axxfcemp)
The EMP module is hot-swap capable and can be installed or removed without powering down the system or any of its modules. This procedure applies to all Intel® Server D50DNP chassis types. Required Tools and Supplies Ethernet Management Port Module •... -
Page 89: System Software Updates And Configuration
The Intel® D50DNP Modules include a software stack that contains CPLD, BIOS, BMC firmware, Intel® Management Engine (Intel® ME) firmware, and FRU data. A full software stack is installed during the system manufacturing process but may not be the latest available version. Intel highly recommends updating the full system software stack to the latest available version for optimal performance and system reliability. -
Page 90: Table 3. Bios Setup: Keyboard Commands
Intel® Server D50DNP Family Integration and Service Guide If no administrator or user password is used, all available settings are configurable, and can be set by anyone with access to BIOS Setup. System settings that are not configurable, because of security settings or configuration limits, are grayed out and are not accessible. -
Page 91: System Packaging Assembly Instructions
Intel® Server D50DNP Family Integration and Service Guide System Packaging Assembly Instructions The original Intel packaging is designed to provide protection to a fully configured system and tested to meet ISTA (International Safe Transit Association) Test Procedure 3A (2018). The packaging is designed to be reuseable. - Page 92 Intel® Server D50DNP Family Integration and Service Guide 3. Install the front foam element (M64731-001) in the front of the system (left piece in the following illustration) and the rear foam element (M66798-001) in the rear of the system (right piece in the following illustration).
- Page 93 Intel® Server D50DNP Family Integration and Service Guide 7. Fold the flaps of the inner box closed, short flaps first, followed by long flaps. Note: By design, the long flaps do not meet. Do not tape inner box flaps. 8. Fold the flaps of the outer box. Close the short flaps first, followed by the long flaps.
-
Page 94: System / Module Features Overview
This chapter provides service personnel a reference to identify and locate the features associated with the Intel® Server System D50DNP. System Feature Identification All systems in the Intel® Server D50DNP Family feature front-loading modules. The figures on the following pages provide a quick reference, identifying the key features of all supported system configurations. -
Page 95: Figure 106. Module Identification For One Full-Width Module System Configuration
Intel® Server D50DNP Family Integration and Service Guide Figure 106. Module Identification for One Full-Width Module System Configuration Figure 107. Module Identification for Two Full-Width Module System Configuration Systems are offered with either liquid-cooling or air-cooling options. The following figures identify key system features for both cooling options. -
Page 96: Front Panel Feature Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 109. Air-Cooled System Rear View Front Panel Feature Identification Figure 110. 1U Compute Module Front Panel Feature Identification Figure 111. 2U Management Module Front Panel Feature Identification... -
Page 97: Front Control Panel And I/O Breakout Cable Feature Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 112. Intel® Data Center GPU Max Series Accelerator Module Feature Identification Figure 113. 2U PCIe* Accelerator Module Front Panel Feature Identification Front Control Panel and I/O Breakout Cable Feature Identification Figure 114. Front Control Panel Features... -
Page 98: System Component Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 115. I/O Breakout Cable Connector Identification System Component Identification The following illustrations provide a quick reference to identify system components. Figure 116. Air-Cooled Server Chassis Component Identification... -
Page 99: Figure 117. Liquid-Cooled Server Chassis Component Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 117. Liquid-Cooled Server Chassis Component Identification Figure 118. 1U Liquid-Cooled Compute Module Component Identification... -
Page 100: Figure 119. 1U Air-Cooled Compute Module Component Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 119. 1U Air-Cooled Compute Module Component Identification... -
Page 101: Figure 120. 2U Management Module Component Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 120. 2U Management Module Component Identification... -
Page 102: Figure 121. Intel® Data Center Gpu Max Series Accelerator Module Component Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 121. Intel® Data Center GPU Max Series Accelerator Module Component Identification... -
Page 103: Figure 122. 2U Pcie* Accelerator Module Component Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 122. 2U PCIe* Accelerator Module Component Identification... -
Page 104: Server Board Features
SATA III support USB 3.0 support PCIe 3.0 support • Up to 16 DDR5 RDIMMs or 8 DDR5 RDIMMs + 8 Intel® Optane™ PMem 300 series modules. • Registered DDR5 DIMM (standard RDIMM, 3DS-RDIMM, and 9x4 RDIMM) Note: 3DS = three-dimensional stacking. - Page 105 Security • Intel® Software Guard Extensions (Intel® SGX) Technology • Intel® Converged Boot Guard and Trusted Execution (Intel® CBnT) Technology • Trusted platform module 2.0 (China version) AXXTPMCHNE8 (accessory option) • Trusted platform module 2.0 (rest of the world) AXXTPMENC9 (accessory option) •...
-
Page 106: Figure 123. Intel® Server Board D50Dnp1Sb Feature Identification
Intel® Server D50DNP Family Integration and Service Guide Figure 123. Intel® Server Board D50DNP1SB Feature Identification The Intel® Server Board D50DNP1SB includes several jumper blocks to configure, protect, or recover specific features of the server board. Refer to Appendix D for details. -
Page 107: Module And Chassis Specific Features
• Up to 270 W (D50DNP1MHEVAC) Design Power (TDP) • Up to 250 W (D50DNP1MHCPAC) • Up to 16 DDR5 RDIMMs or 8 DDR5 RDIMMs plus 8 Intel® Optane™ PMem 300 series modules in air- Memory Support cooled modules • 16 DDR5 RDIMMs in liquid-cooled modules... -
Page 108: Table 6. 2U Management Module Specific Features
• Up to 350 W Thermal Design Power (TDP) • Four Intel® Data Center GPU Max Series GPUs in OAM form factor and a maximum TDP of 600W each. GPU Support All four GPUs must always be present. Memory Support •... -
Page 109: Table 8. Pcie* Accelerator Module Specific Features
Processor Thermal Design Power (TDP) Memory Support • Up to 16 DDR5 RDIMMs or 8 DDR5 RDIMMs plus 8 Intel® Optane™ PMem 300 series modules Expansion Options Riser Slot 1 supports 2U dual PCIe* slot riser card assembly (iPC DNP2UMRISER) •... -
Page 110: Table 9. Intel® Server Chassis / Intel® Server System D50Dnp Feature Set
Intel® Server D50DNP Family Integration and Service Guide Table 9. Intel® Server Chassis / Intel® Server System D50DNP Feature Set Description Feature Chassis FC2HLC30W0 Chassis FC2FLC30W0 Chassis FC2HAC27W0 Chassis FC2FAC27W0 FC2000 half-width FC2000 full-width FC2000 half-width FC2000 full-width Chassis configuration, liquid... -
Page 111: Fru Replacement
This chapter provides instructions for replacement of system components considered to be field replaceable units (FRU). The Intel® Server System D50DNP features a modular design. This design allows replacement of modules, system fans, power supply (in redundant power supply configuration only), and Ethernet Management Port module (EMP module) without having to power off the entire system. -
Page 112: Module Removal / Installation
Intel® Server D50DNP Family Integration and Service Guide Module Removal / Installation Required Tools and Supplies Anti-static wrist strap and conductive workbench pad (recommended) • 7.1.1 Module Removal 1. Power down the module using the power button on the front panel of the module to be removed. -
Page 113: Air Duct Removal / Installation
Intel® Server D50DNP Family Integration and Service Guide Air Duct Removal / Installation To maintain system thermals, the air duct must always be in place when the system is operational. Removal of the air duct is necessary when installing or replacing any system component within the module. -
Page 114: Air Duct Removal (D50Dnp2Mfalac Module)
Intel® Server D50DNP Family Integration and Service Guide 7.2.3 Air Duct Removal (D50DNP2MFALAC Module) Figure 129. Removing the Air Duct (D50DNP2MFALAC Module) 1. Push the loops on both sides of the air duct inwards to release the latches (see Letter A). -
Page 115: Processor Replacement
E1A. However, the processor installation procedure is the same, regardless of the size of the heat sink and type of processor carrier clip. Caution: Fin edges of the processor heat sink are very sharp. Intel recommends wearing thin ESD protective gloves when handling the PHM during the following procedures. -
Page 116: Figure 132. Phm Assembly Removal From Processor Socket
Intel® Server D50DNP Family Integration and Service Guide 7.3.1.1 Processor Heat Sink Module (PHM) Removal 1. Identify and locate the processor to be removed. Figure 132. PHM Assembly Removal from Processor Socket 2. Set all four anti-tilt wires on the heat sink to the outward position (see Letter A). -
Page 117: Figure 133. Reinstall The Socket Cover
Intel® Server D50DNP Family Integration and Service Guide Figure 133. Reinstall the Socket Cover • Squeeze the finger grips at each end of the cover (see Letter A). Carefully lower the cover over the four alignment pins of the bolster plate and onto the •... -
Page 118: Figure 135. Processor Carrier Clip Removal From Phm Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 135. Processor Carrier Clip Removal from PHM Assembly 3. Return the lever to the original position (see Letter C). 4. Detach the processor carrier clip from the heat sink. • Unlatch the hook on each corner of the processor carrier clip (see Letter D). -
Page 119: Figure 137. Installing Processor Carrier Clip Onto Processor - Part 2
Intel® Server D50DNP Family Integration and Service Guide Figure 137. Installing Processor Carrier Clip onto Processor – Part 2 1. Align the Pin 1 indicator on the processor carrier clip with the Pin 1 indicator of the processor. 2. With the processor still in its shipping tray, place the processor carrier clip over the processor. -
Page 120: Figure 139. Processor Heat Sink Anti-Tilt Wires In The Outward Position
Intel® Server D50DNP Family Integration and Service Guide Figure 139. Processor Heat Sink Anti-tilt Wires in the Outward Position 7. Set the anti-tilt wire over each of the four heat sink fasteners to their outward position. Figure 140. Pin 1 Indicator of Processor Carrier Clip 8. -
Page 121: Figure 141. Socket Protective Cover Removal
Intel® Server D50DNP Family Integration and Service Guide 7.3.1.4 PHM Installation 1. If installed, remove the plastic cover from the processor socket. Caution: Do not touch the socket pins. The pins inside the processor socket are extremely sensitive. A damaged processor socket may produce unpredictable system errors. -
Page 122: Figure 143. Phm Installation Onto Server Board
Intel® Server D50DNP Family Integration and Service Guide Caution: Processor socket pins are delicate and bend easily. Use extreme care when placing the PHM onto the processor socket. Do not drop it. Figure 143. PHM Installation onto Server Board 4. Set all four anti-tilt wires on the heat sink to the inward position (see Letter A). -
Page 123: Processor Replacement For Evac Heat Sink
Intel® Server D50DNP Family Integration and Service Guide Note: Intel strongly recommends installing both processors. If only one processor is installed, do not install a processor heat sink on an empty socket. 7.3.2 Processor Replacement for EVAC Heat Sink Components Required for Each Processor New 4 Gen Intel®... -
Page 124: Figure 146. Removing A Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide 7.3.2.1 Processor Heat Sink Module (PHM) Removal 1. Remove the riser assembly on the right side of the module. Figure 146. Removing a Riser Assembly Using Phillips screwdriver #1 remove two screws that secure the riser assembly to the front of the •... -
Page 125: Figure 148. Phm Assembly Removal From Processor Socket
Intel® Server D50DNP Family Integration and Service Guide Anti-tilt wire x 4 Figure 148. PHM Assembly Removal from Processor Socket 5. Set all four anti-tilt wires on the heat sink to the inward position (see Letter D). 6. Carefully grasp the PHM and lift it straight up and off the server board (see Letter E). -
Page 126: Figure 150. Processor Removal From Phm Assembly
Intel® Server D50DNP Family Integration and Service Guide 7.3.2.2 PHM Disassembly Figure 150. Processor Removal from PHM Assembly 1. While holding down the PHM, rotate the lever (see Letter A) from right to left until the processor lifts free from the processor carrier clip. -
Page 127: Figure 152. Installing Processor Carrier Clip Onto Processor - Part 1
Intel® Server D50DNP Family Integration and Service Guide 7.3.2.3 PHM Reassembly To properly reassemble the PHM and install it onto the server board, the procedures described in the following sections must be followed in the order specified. These instructions assume that the processor heat sink (new or reuse of existing) has the necessary thermal interface material (TIM) Honeywell PTM7000* already applied to the clean bottom of the heat sink. -
Page 128: Figure 154. Processor Heat Sink Handling
Intel® Server D50DNP Family Integration and Service Guide 1. Align the Pin 1 indicator on the processor carrier clip with the Pin 1 indicator of the processor. 2. With the processor still in its tray, place the processor carrier clip over the processor. -
Page 129: Figure 156. Pin 1 Indicator Of Processor Carrier Clip
Intel® Server D50DNP Family Integration and Service Guide Figure 156. Pin 1 Indicator of Processor Carrier Clip 8. Align the Pin 1 indicator of the processor carrier clip with one of the diagonally cut corners on the base of the heat sink. Or (if present) look for the Pin 1 indicator on the corner of the heat sink label. -
Page 130: Figure 158. Phm Alignment With Socket Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 158. PHM Alignment with Socket Assembly Caution: Processor socket pins are delicate and bend easily. Use extreme care when placing the PHM onto the processor socket. Do not drop it. Figure 159. PHM Installation onto Server Board 4. -
Page 131: Figure 160. Tighten Evac Heat Sink Extension
Tighten to 5 in-lb. (see Letter C). 16. Reinstall the air duct and module (see Section 7.2.2 Section 7.1.2). Note: Intel strongly recommends installing both processors. If only one processor is installed, do not install a processor heat sink on an empty socket. -
Page 132: Processor Replacement For Liquid-Cooled Configurations
Intel® Server D50DNP Family Integration and Service Guide 7.3.3 Processor Replacement for Liquid-Cooled Configurations Components Required for Each Processor Gen Intel® Xeon® Scalable processor in the shipping tray • • Matching processor carrier clip Existing processor cold plate • New thermal interface material (TIM) Dow Corning TC-5622* •... -
Page 133: Figure 164. Loosening Processor Cold Plate Fasteners
Intel® Server D50DNP Family Integration and Service Guide 2. Remove the three Velcro tape pieces between the processor cold plates. Figure 164. Loosening Processor Cold Plate Fasteners 3. Fully loosen all four fasteners on the processor cold plate in any order (see Letter B). General bolt loosening order, such as diagonal sequence, can be used. -
Page 134: Figure 166. Reinstall The Socket Cover
Intel® Server D50DNP Family Integration and Service Guide Figure 166. Reinstall the Socket Cover 7. Reinstall the socket cover to protect the socket pins before proceeding to the next step. • Squeeze the finger grips at each end of the cover and carefully lower the cover onto the socket. Then, release the finger grips. -
Page 135: Figure 168. Processor Carrier Clip Removal From Processor Cold Plate
Intel® Server D50DNP Family Integration and Service Guide Figure 168. Processor Carrier Clip Removal from Processor Cold Plate 10. Return the lever to the original position (see Letter G). 11. Unlatch the hook on each corner of the processor carrier clip and lift it from the processor cold plate (see Letter H). -
Page 136: Figure 170. Installing Processor Carrier Clip Onto Processor - Part 2
Intel® Server D50DNP Family Integration and Service Guide Figure 170. Installing Processor Carrier Clip onto Processor – Part 2 14. Gently press down simultaneously on two opposite sides of the processor carrier clip until it clicks in place. 15. Repeat step 14 for the other two sides. -
Page 137: Figure 172. Processor Installation Onto Server Board
Intel® Server D50DNP Family Integration and Service Guide Figure 172. Processor Installation onto Server Board Caution: Processor socket pins are delicate and bend easily. Use extreme care when placing the processor onto the processor socket. Do not drop it. 18. Align the Pin 1 indicators of the processor carrier clip and processor with the Pin 1 indicator on the bolster plate. -
Page 138: Figure 174. Applying Center Vr Thermal Gap Filler
Notes: • For 4 Gen Intel® Xeon® Scalable processors Family XCC models and Intel® Xeon® CPU Max Series processor models, apply 248 cubic millimeters of thermal gap filler to cover the VR components with a minimum thickness of 1 mm. -
Page 139: Figure 176. Securing Processor Cold Plate
Intel® Server D50DNP Family Integration and Service Guide 21. Carefully reinstall the processor cold plate back onto the bolster plate’s alignment pins (see Letter L). Figure 176. Securing Processor Cold Plate 22. Set all four anti-tilt wires on the cold plates to the outward position (see Letter M). -
Page 140: Figure 178. Installing The Screws On Top Of Processor Cold Plate
Intel® Server D50DNP Family Integration and Service Guide Figure 178. Installing the Screws on Top of Processor Cold Plate 25. Install the screws and the clips that hold the outer hoses on the top of the processor cold plate (see Letter O). -
Page 141: Memory Module Replacement
The following figures show standard DDR5 DIMMs, but the steps of DDR5 DIMM replacement are the same between standard DDR5 DIMMs and Intel® Optane™ PMem 300 series modules. Standard DDR5 DIMMs and Intel® Optane™ PMem 300 series modules are commonly referred to as “memory module” in the following instructions. -
Page 142: Memory Replacement For Liquid-Cooled Modules
8. Ensure that the ejection tabs are firmly in place (see Letter E). Note: Replacing Intel® Optane™ PMem devices requires additional steps to enable and configure them. Refer to the appropriate Intel® Optane™ PMem documentation to complete the installation process for these devices. -
Page 143: Figure 182. Removing The Dimm Clips
Intel® Server D50DNP Family Integration and Service Guide 1. Detach the DIMM latch tool from the cooling loop 2. Identify and locate the memory module to be replaced. Figure 182. Removing the DIMM Clips 3. Position one end of the DIMM latch tool between the DIMM clip and the memory heat spreader line (see Letter A). -
Page 144: Figure 184. Attaching Thermal Pad To Dimm Pmic
Intel® Server D50DNP Family Integration and Service Guide Figure 184. Attaching Thermal Pad to DIMM PMIC 10. Carefully detach one PMIC thermal pad from the paper and attach it to the replacement DIMM power management integrated circuit (PMIC) as shown on the picture. -
Page 145: Figure 186. Mylar And Dimm Clip Installation
Intel® Server D50DNP Family Integration and Service Guide Figure 186. Mylar and DIMM clip installation 16. Wrap the Mylar pad around the memory heat spreader line and two adjacent DIMMs and Install the DIMM clip over the Mylar pad like on the picture. Make sure the arrows on the clips look left for CPU 0 and look... -
Page 146: Riser Card And Pcie Add-In Card Replacement
Intel® Server D50DNP Family Integration and Service Guide Riser Card and PCIe Add-In Card Replacement The Intel® Server D50DNP Family supports either up to two (1U modules) or up to four (2U modules) low- profile PCIe* add-in cards. This section provides assembly and installation procedures for modules that require low-profile add-in card installation. -
Page 147: Figure 188. 1U Standard Riser Card
Intel® Server D50DNP Family Integration and Service Guide Figure 188. 1U Standard Riser Card Figure 189. 2U Riser Assembly and Riser Card Features... -
Page 148: Standard Riser Assembly Removal
Intel® Server D50DNP Family Integration and Service Guide 7.5.1 Standard Riser Assembly Removal 1U air-cooled module shown Figure 190. Removing Riser Assembly 1. Using Phillips screwdriver #1 remove two screws that secure the riser assembly to the front of the module (see Letter A). -
Page 149: Pcie* Add-In Card Replacement
Intel® Server D50DNP Family Integration and Service Guide Figure 192. Tilting MCIO* Riser Assembly 3. Disconnect the riser board from the riser slot connector by lifting it up. 4. Tilt the riser assembly on its side (see Letter C) to make room to install the add-in card. -
Page 150: Standard Riser Assembly Installation
Intel® Server D50DNP Family Integration and Service Guide 1U air-cooled module shown Figure 194. Add-In Card Installation 3. If installed, carefully remove the original rear metal filler plate from the metal frame of the riser assembly (see Letter A). 4. Align the rear bracket of the add-in card to the rear opening of the riser assembly. -
Page 151: Mcio* Riser Assembly Installation
Intel® Server D50DNP Family Integration and Service Guide 7.5.5 MCIO* Riser Assembly Installation 1U air-cooled module shown Figure 196. Installing the MCIO Riser Assembly 1. Tilt the riser assembly down and align the riser card with the riser slot on the server board (see Letter 2. -
Page 152: Riser Assembly Installation Into Liquid-Cooled Modules
Intel® Server D50DNP Family Integration and Service Guide 7.5.6 Riser Assembly Installation into Liquid-Cooled Modules The liquid-cooled modules D50DNP1MHCPLC and D50DNP1MFALLC use the same riser assemblies that are used for air-cooled modules. The procedures describing riser assmply installation into air-cooled modules (Section 7.5.4 or Section 7.5.5) should be followed for liquid-cooled modules. -
Page 153: M.2 Ssd Replacement
Intel® Server D50DNP Family Integration and Service Guide M.2 SSD Replacement 7.6.1 M.2 SSD and Heat Sink Replacement for Air-Cooled Configurations Required Tools and Supplies • Replacement PCIe* / SATA M.2 SSD M.2 heat sink kit (iPC DNPM2HS) for each replacement M.2 SSD (recommended) •... -
Page 154: Figure 200. Installing Air-Cooled M.2 Ssd
Intel® Server D50DNP Family Integration and Service Guide 6. Grasp the M.2 SSD by its edges and remove it from the connector in the direction shown (see Letter C). 7. Carefully peel off the thermal pad from the rear side of the SSD and assess if it can be reused with the new SSD. -
Page 155: M.2 Ssd And Cold Plate Replacement For Liquid-Cooled Configurations
Intel® Server D50DNP Family Integration and Service Guide 7.6.2 M.2 SSD and Cold Plate Replacement for Liquid-Cooled Configurations Required Tools and Supplies Replacement PCIe* / SATA M.2 SSD • • M.2 cold plate kit (iPC DNPM2LCHS) for each replacement M.2 SSD (recommended) Anti-static wrist strap and conductive workbench pad (recommended) •... -
Page 156: Figure 204. Installing Thermal Interface Material (Tim) On M.2 Ssd
Intel® Server D50DNP Family Integration and Service Guide 4. Remove the screw securing M.2 SSD to the mounting standoff on the left side of the riser assembly (see Letter A). Carefully rotate outward the free end of the M.2 SSD away from the riser assembly (see Letter 6. -
Page 157: Figure 205. Installing M.2 Ssd
Intel® Server D50DNP Family Integration and Service Guide Figure 205. Installing M.2 SSD 10. Align the notch within the SSD edge connector with the key in the M.2 connector and insert the SSD into the connector (see Letter A). 11. Push the free end of the SSD towards the riser assembly (see Letter B). -
Page 158: Liquid-Cooling Loop Replacement (D50Dnp1Mhcplc Module)
Intel® Server D50DNP Family Integration and Service Guide Liquid-Cooling Loop Replacement (D50DNP1MHCPLC Module) Note: Remove all the DIMMs from the memory slots before replacing the liquid-cooling loop (see Section 7.4.2). The components of the liquid-cooled loop are shown in the following figure. -
Page 159: Figure 209. Installing The Liquid-Cooling Loop Carrier
Intel® Server D50DNP Family Integration and Service Guide 1. Remove all screws used to secure the liquid-cooling loop to the server board (see Letter A and Letter B). Figure 209. Installing the Liquid-Cooling Loop Carrier Note: The liquid-cooling loop comes from the factory with a plastic carrier attached. The carrier is used during the installation and removal of the liquid-cooling loop in the module. -
Page 160: Figure 211. Removing Liquid-Cooling Loop
Intel® Server D50DNP Family Integration and Service Guide Figure 211. Removing Liquid-Cooling Loop 6. Set all the anti-tilt wires on the cold plates to the inward position (see Letter A). 7. With your fingers, hold the plastic carrier (with the liquid-cooling loop attached to it) and carefully lift it up and away from the module (see Letter B). -
Page 161: Figure 213. Processor Carrier Clip Removal From Processor Cold Plate
Intel® Server D50DNP Family Integration and Service Guide Figure 213. Processor Carrier Clip Removal from Processor Cold Plate 11. Return the lever to the original position (see Letter G). 12. Unlatch the hook on each corner of the processor carrier clip and lift it from the processor cold plate (see Letter H). -
Page 162: Figure 215. Installing Processor Carrier Clip Onto Processor - Part 2
Intel® Server D50DNP Family Integration and Service Guide Figure 215. Installing Processor Carrier Clip onto Processor – Part 2 17. Gently press down simultaneously on two opposite sides of the processor carrier clip until it clicks in place. 18. Repeat step 17 for the other two sides. -
Page 163: Figure 217. Assembling The Manual Applicator
CPU VR components (see Letter K). Notes: For 4th Gen Intel® Xeon® Scalable XCC and for Intel® Xeon® CPU Max Series processor models, apply • 248 cubic millimeters of thermal gap filler to fully cover the VR components with a minimum thickness of 1 mm. -
Page 164: Figure 219. Installing Liquid-Cooling Loop
Intel® Server D50DNP Family Integration and Service Guide 22. Carefully unpack a new liquid-cooling loop. 23. Remove the protective covers from the PCIe* add-in card cold plate and from the CPU cold plates. 24. Ensure that the thermal interface material (TIM) for each cold plate is in place and the plastic protective film is removed. -
Page 165: Figure 220. Securing The Processor Cold Plates
Intel® Server D50DNP Family Integration and Service Guide Figure 220. Securing the Processor Cold Plates 27. Set all eight anti-tilt wires on the cold plates to the outward position (see Letter A). 28. Tighten the fasteners on the cold plates to 8 in-lb using a Torx T30* screwdriver (see Letter B). No specific sequence is needed for tightening. -
Page 166: Figure 222. Securing The Liquid-Cooling Loop
Intel® Server D50DNP Family Integration and Service Guide Figure 222. Securing the Liquid-Cooling Loop 30. Using three 8-mm long screws with washers (see Letter A), secure the liquid-cooling loop to the server board. Tighten to 5 in-lb. 31. Repeat the previous step using fifteen 12-mm long screws with washers (see Letter B). Tighten to 5 in-lb. -
Page 167: Add-In Card Replacement For Liquid-Cooled Modules (D50Dnp1Mhcplc And D50Dnp1Mfallc Modules)
Intel® Server D50DNP Family Integration and Service Guide Add-In Card Replacement for Liquid-Cooled Modules (D50DNP1MHCPLC and D50DNP1MFALLC Modules) 1U liquid-cooled modules can accommodate up to two low-profile liquid-cooled PCIe* add-in cards. These models are supported: • NVIDIA* MCX653105A-HDAL NVIDIA* MCX653106A-HDAL •... -
Page 168: Pcie* Accelerator Module Add-In Card Replacement (D50Dnp2Mfalac Module)
Intel® Server D50DNP Family Integration and Service Guide PCIe* Accelerator Module Add-In Card Replacement (D50DNP2MFALAC Module) The following instructions are used to replace the accelerator add-in cards on the PCIe* accelerator module (D50DNP2MFALAC). Required Tools and Supplies Replacement accelerator add-in card(s) •... -
Page 169: Figure 225. Lifting Flap On Front Side Of Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 225. Lifting Flap on Front Side of Riser Assembly 4. Remove the screw that holds the flap and lift the flap up on the front side of the riser assembly. Flap not shown in figure Figure 226. -
Page 170: Figure 227. Removing Accelerator Add-In Card From Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 227. Removing Accelerator Add-In Card from Riser Assembly 6. Remove the screw on the metal bracket of the existing accelerator add-in card (see Letter A). 7. Carefully disengage the add-in card from the PCIe* slot and pull it away from the riser assembly (see Letter B). -
Page 171: Figure 229. Installing Accelerator Add-In Card In Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 229. Installing Accelerator Add-In Card in Riser Assembly 13. Connect the power cable to the new add-in card if needed and route the power cable through the plastic shield opening in the rear of the riser assembly. -
Page 172: Figure 231. Installing Pcie* Accelerator Module Riser Assembly
Intel® Server D50DNP Family Integration and Service Guide Figure 231. Installing PCIe* Accelerator Module Riser Assembly 20. Install the PCIe* accelerator module riser assembly by tilting the front side down to the module (see Letter A). 21. Fasten the captive screws to secure the PCIe accelerator module riser assembly to the module (see Letter B). -
Page 173: Pcie* Accelerator Module Riser Card Replacement (D50Dnp2Mfalac Module)
PCIe slots on the right riser card. The right PCIe add-in cards are plugged into the PCIe slots on the left riser card. Required Tools and Supplies • Intel accelerator riser card spare kit (DNPACCLRISER1 or DNPACCLRISER2) Anti-static wrist strap and conductive workbench pad (recommended) • Phillips* head screwdrivers #1 and #2 •... -
Page 174: Figure 235. Accelerator Riser Assembly Rear Bracket Removal
Intel® Server D50DNP Family Integration and Service Guide 4. Remove the Velcro tape securing MCIO cables to accelerator riser assembly and disconnect two MCIO cables from the external connectors on the accelerator riser cards. Figure 235. Accelerator Riser Assembly Rear Bracket Removal 5. -
Page 175: Figure 237. Accelerator Riser Card Installation
Intel® Server D50DNP Family Integration and Service Guide Figure 237. Accelerator Riser Card Installation 10. Locate and unpack the new accelerator riser card for replacement. 11. Reattach the MCIO cable on the inner side of the accelerator riser card (see Letter A). -
Page 176: Figure 239. Connecting Mcio* Cables
Intel® Server D50DNP Family Integration and Service Guide Figure 239. Connecting MCIO* Cables 23. Connect the MCIO cables to the external connectors on the accelerator riser cards. Tie the cables to the riser assembly with Velcro tape. Note: Each MCIO cable has the number printed on it. Connect each MCIO cable to the MCIO connector on the accelerator riser cards that has the same number. -
Page 177: Pcie* Accelerator Module Power Connector Board Replacement (D50Dnp2Mfalac Module)
Intel® Server D50DNP Family Integration and Service Guide 7.11 PCIe* Accelerator Module Power Connector Board Replacement (D50DNP2MFALAC Module) The following description provides power connector board replacement instructions for the PCIe* accelerator module (D50DNP2MFALAC). Required Tools and Supplies Power connector board spare kit (DNPACCLCNBRD) •... -
Page 178: Figure 242. Pcie* Accelerator Module Power Connector Board Removal
Intel® Server D50DNP Family Integration and Service Guide Figure 242. PCIe* Accelerator Module Power Connector Board Removal 4. Remove the black screw and the silver screws that secure the power connector board to the PCIe* accelerator module using a Phillips* head screwdriver #2 (see Letter A). -
Page 179: Figure 244. Connecting The Riser Card Power Cables
Intel® Server D50DNP Family Integration and Service Guide Figure 244. Connecting the Riser Card Power Cables 9. Connect the riser card power cables to the connectors on the power board. 10. Reconnect the I2C cable to the accelerator power board. -
Page 180: 7.12 Power Supply Replacement
Intel® Server D50DNP Family Integration and Service Guide 7.12 Power Supply Replacement Required Tools and Supplies Intel spare power supply module • Anti-static wrist strap and conductive workbench pad (recommended) • Note: The replacement figures in this section only display air-cooled chassis. However, the power supply replacement is the same, regardless of chassis type. -
Page 181: 7.13 Server Board Replacement
Intel® Server D50DNP Family Integration and Service Guide 7.13 Server Board Replacement Before performing this procedure, review all the safety and ESD precautions found in the Safety Warnings section at the beginning of this document. Note: All components removed from the module must be kept on an ESD safe work surface or into an ESD safe bin or bag while full module/system disassembly and reassembly is in progress. -
Page 182: Figure 248. Server Board Installation
Intel® Server D50DNP Family Integration and Service Guide 9. Lift the rear edge of the board to disengage it from standoffs and slide the server board slightly towards the back of the module tray. Then, carefully lift the server board from the module tray (see Letter B) and place it in an anti-static bag. -
Page 183: 7.14 System Fan Replacement
Anti-static wrist strap and conductive workbench pad (recommended) • The Intel® Server System D50DNP supports two system fan configurations as shown in the following figures: one for liquid-cooled configurations and one for air-cooled configurations. Figure 249. System Fan Configuration in Liquid-Cooled System Figure 250. -
Page 184: Figure 251. 60-Mm System Fan Ipc Fcxx60Mmacfan
• Four managed 60-mm dual rotor system fans Important Note: Only install 60-mm system fans (FCXX60MMACFAN) that are designed for the Intel® Server D50DNP chassis (FC2HAC27W0 and FC2FAC27W0). See following figure. Do not install 60- mm system fans from previous Intel server product generations. -
Page 185: Figure 252. Removing System Fan
Intel® Server D50DNP Family Integration and Service Guide Figure 252. Removing System Fan 1. If present, remove the power supply (see Section 7.12) from the system fan assembly to be removed. 2. While pushing the green latch in the direction shown, use the handle to pull the system fan assembly out of the bay. -
Page 186: 7.15 Power Distribution Board (Pdb) Assembly Replacement
1. Ensure that the system power is off and then disconnect the power supply cord(s). Then, remove it from the rack. Important Safety Notes: Due to the weight of a fully configured system, Intel recommends: Use a mechanical lift to aid with the removal of the system from the rack. -
Page 187: Figure 255. Disconnecting System Fan Power Cables
Intel® Server D50DNP Family Integration and Service Guide Figure 255. Disconnecting System Fan Power Cables 5. Locate and disconnect the system fan power cables from the power distribution board by pressing inwards on each clip and lifting them up. 6. Remove the power supplies (see Section 7.12). -
Page 188: Figure 257. Installing The Power Distribution Board
Intel® Server D50DNP Family Integration and Service Guide 10. Remove the screws securing the power distribution board (PDB) to the chassis with a Phillips* head screwdriver #2 (see Letter A). 11. Remove the PDB by lifting it upwards, tilting up the front side of the PDB, and then lifting the board out (see Letter B). -
Page 189: Figure 258. Connecting System Fan Power Cables
Intel® Server D50DNP Family Integration and Service Guide Figure 258. Connecting System Fan Power Cables 15. Locate and connect the system fan cables by pressing inwards on each clip and pressing them down into the appropriate connector. Figure 259. Securing Back Cover 16. -
Page 190: 7.16 Internal Chassis Rail Replacement
7.16 Internal Chassis Rail Replacement The Intel® Server System D50DNP includes internal rails to support 1U modules in the upper part of the chassis. If the internal rails become damaged or worn out, this section provides the instructions necessary to replace them. -
Page 191: Figure 261. Installing Internal Chassis Rail
Intel® Server D50DNP Family Integration and Service Guide Figure 261. Installing Internal Chassis Rail 7. Place the new rail inside the chassis aligning the keying pins of the rail with the cut outs in the chassis inner wall. 8. Slide the rail into the chassis inner wall towards the back of the chassis until it locks into place. -
Page 192: 7.17 System Battery Replacement
Intel® Server D50DNP Family Integration and Service Guide 7.17 System Battery Replacement Required Tools and Supplies Compatible CR2032 lithium battery • Anti-static wrist strap and conductive workbench pad (recommended) • Figure 262. Removing System Battery 1. Remove the selected module from the server chassis (see Section 7.1.1). -
Page 193: Appendix A. Getting Help
Intel Configure to Order tool. If a solution cannot be found at Intel’s support site, submit a service request via Intel’s online service center at https://supporttickets.intel.com/servicecenter?lang=en-US. In addition, you can also view previous support requests. (Login required to access previous support requests). -
Page 194: Appendix B. Memory Population Rules
• SDRAM DIMMs and four Intel® Optane™ persistent memory (PMem) 300 series modules per processor. Intel® Optane™ PMem 300 series modules can only be installed on memory channels A, C, E, and G for • each processor. Only Intel® Optane™ PMem 300 series modules are supported. Previous Intel® Optane™ PMem •... -
Page 195: Recommended Memory Configurations
Standard DDR5 to Intel® Optane™ PMem 300 series module capacity recommended ratio is between 1GB : 2GB and 1GB : 8GB. • Intel® Optane™ PMem 300 series modules are not supported on servers with Intel® Xeon® CPU Max Series processors. Table 10. Intel® Optane™ Persistent Memory 300 Series Module Support Processor models Intel®... -
Page 196: Table 12. Standard Ddr5 Dimm Per Socket Population Configurations
DDR5 DDR5 DDR5 DDR5 Note: Liquid-cooled configurations require all DIMM slots to be populated with DDR5 DIMMs. Table 13. DDR5 SDRAM DIMM and Intel® Optane™ PMem 300 Series Module per Socket Population Configurations IMC 3 IMC 2 IMC 0 IMC 1... -
Page 197: Intel® Ddr5 Dimm Support Disclaimer
However, Intel may ship back a validated “Like” DIMM. A “Like” DIMM may be from the same vendor but may not be the same revision # or model #, or it may be an Intel validated DIMM from a different vendor. -
Page 198: Appendix C. System Status Led State Definitions
The module ID LED can also be toggled on and off remotely using the IPMI “Chassis Identify” command that causes the LED to blink for 15 seconds. NMI Button: When the NMI button is pressed, it puts the Intel® D50DNP Module in a halt state and •... -
Page 199: Table 16. Intel® D50Dnp Module Status Led State Definitions
The module status LED states are driven by the integrated platform management subsystem. Table 16 provides a description of each supported LED state. Table 16. Intel® D50DNP Module Status LED State Definitions LED State Module State Module Status Description •... - Page 200 Intel® Server D50DNP Family Integration and Service Guide LED State Module State Module Status Description • CPU CATERR signal asserted. • MSID mismatch detected (CATERR also asserts for this case). • CPU 0 is missing. • CPU thermal trip. • No power good: power fault.
-
Page 201: Appendix D. Onboard Configuration And Service Jumpers
The following figure identifies the location of each jumper block on the server board. Pin 1 of each jumper is identified by an arrowhead (▼) silkscreened on the server board next to the pin. Please read the Intel® Server D50DNP Family Technical Product Specification for details. Figure 265. Jumper Block Location... -
Page 202: Appendix E. Post Code Diagnostic Leds
(LSB) and LED with highest number represents the most significant bit (MSB). Figure 266. Intel® Light-Guided Diagnostics - POST Code LED Location In the following example, the BIOS sends a hexadecimal value of AC to the diagnostic LEDs. The LEDs are decoded as shown in the following table. -
Page 203: Early Post Memory Initialization Mrc Diagnostic Codes
Intel® Server D50DNP Family Integration and Service Guide Early POST Memory Initialization MRC Diagnostic Codes Memory initialization at the beginning of POST includes multiple functions: discovery, channel training, validation that the DIMM population is acceptable and functional, initialization of the IMC and other hardware settings, and initialization of applicable RAS configurations. -
Page 204: Table 19. Mrc Fatal Error Codes
02h = Memory DIMMs on all channels of all sockets are disabled due to hardware memory test error. 03h = No memory installed. All channels are disabled. Memory is locked by Intel® TXT and is inaccessible. DDR5 channel training error. 01h = Error on read DQ/DQS (Data/Data Strobe) initialization. -
Page 205: Bios Post Progress Codes
Intel® Server D50DNP Family Integration and Service Guide BIOS POST Progress Codes The following table provides a list of all POST progress codes. Table 20. POST Progress Codes Post Upper Nibble Lower Nibble progress Description code (Hex) Security (SEC) Phase... - Page 206 Intel® Server D50DNP Family Integration and Service Guide Post Upper Nibble Lower Nibble progress Description code (Hex) Memory installed CPU PEIM (CPU initialization) CPU PEIM (cache initialization) CPU BSP selection CPU AP initialization CPU SMM initialization DXE IPL started Memory Feature Progress Codes...
- Page 207 Intel® Server D50DNP Family Integration and Service Guide Post Upper Nibble Lower Nibble progress Description code (Hex) DXE PCI bus enumeration DXE PCI bus resource requested DXE PCI bus assign resource DXE CON_OUT connect DXE CON_IN connect DXE SIO initialization...
- Page 208 Intel® Server D50DNP Family Integration and Service Guide Post Upper Nibble Lower Nibble progress Description code (Hex) S3 resume PEIM (S3 boot script) S3 resume PEIM (S3 video repost) S3 resume PEIM (S3 operating system wake)
-
Page 209: Appendix F. Post Error Codes
The system cannot boot unless the error is resolved. The faulty component must be replaced. Note: The POST error codes in the following table are common to all current generation Intel server platforms. Features present on a given server board/system determine which of the listed error codes are... -
Page 210: Table 21. Post Error Messages And Handling
Intel® Server D50DNP Family Integration and Service Guide Table 21. POST Error Messages and Handling POST Error Error Message Corrective Action Type Code 0012 System RTC date/time not set Set date and time Major 0048 Password check failed Put right password. - Page 211 Intel® Server D50DNP Family Integration and Service Guide POST Error Error Message Corrective Action Type Code 8521 Memory failed test/initialization CPU0_DIMM_A2 Remove the disabled DIMM. Major 8522 Memory failed test/initialization CPU0_DIMM_A3 Remove the disabled DIMM. Major 8523 Memory failed test/initialization CPU0_DIMM_B1 Remove the disabled DIMM.
- Page 212 Intel® Server D50DNP Family Integration and Service Guide POST Error Error Message Corrective Action Type Code 854D Memory disabled.CPU0_DIMM_E2 Remove the disabled DIMM. Major 854E Memory disabled.CPU0_DIMM_E3 Remove the disabled DIMM. Major 854F Memory disabled.CPU0_DIMM_F1 Remove the disabled DIMM. Major 8550 Memory disabled.CPU0_DIMM_F2...
- Page 213 Intel® Server D50DNP Family Integration and Service Guide POST Error Error Message Corrective Action Type Code Memory encountered a Serial Presence Detection(SPD) 856E Major failure.CPU0_DIMM_E3 Memory encountered a Serial Presence Detection(SPD) 856F Major failure.CPU0_DIMM_F1 Memory encountered a Serial Presence Detection(SPD)
- Page 214 Intel® Server D50DNP Family Integration and Service Guide POST Error Error Message Corrective Action Type Code 85CD Memory failed test/initialization CPU1_DIMM_H1 Remove the disabled DIMM. Major 85CE Memory failed test/initialization CPU1_DIMM_H2 Remove the disabled DIMM. Major 85CF Memory failed test/initialization CPU1_DIMM_H3 Remove the disabled DIMM.
-
Page 215: Post Error Led Codes
Intel® Server D50DNP Family Integration and Service Guide POST Error Error Message Corrective Action Type Code Memory encountered a Serial Presence Detection(SPD) 85EF Major failure.CPU1_DIMM_H3 8604 POST Reclaim of non-critical NVRAM variables Minor 8605 BIOS Settings are corrupted Major NVRAM variable space was corrupted and has been... -
Page 216: Table 22. Post Error Led Codes
Codes that are common across Intel server boards and systems that use same generation chipset are listed in the following table. Each digit in the code is represented by corresponding number of LED flashes. -
Page 217: Table 24. Mixed Processor Configurations Error Summary
Intel® Server D50DNP Family Integration and Service Guide Processor Initialization Error Summary The table below describes mixed processor conditions and actions for all Intel server boards and Intel server systems designed with the Intel® Xeon® Scalable processor family architecture. The errors fall into one of the... - Page 218 Intel® Server D50DNP Family Integration and Service Guide Appendix G. Product Safety – Multi-Language WARNING: English (US) The power supply in this product contains no user-serviceable parts. There may be more than one supply in this product. Refer servicing only to qualified personnel.
- Page 219 Intel® Server D50DNP Family Integration and Service Guide For proper cooling and airflow, always reinstall the chassis covers before turning on the system. Operating the system without the covers in place can damage system parts. To install the covers: 1. Check first to make sure you have not left loose tools or parts inside the system.
- Page 220 Intel® Server D50DNP Family Integration and Service Guide ОСТОРОЖНО: русский Блок питания данного изделия не содержит деталей, подлежащих обслуживанию пользователем. В этом изделии может быть несколько блоков питания. Обслуживание должно выполняться только квалифицированным персоналом. Не модифицируйте и не используйте прилагаемый кабель питания, если он не...
- Page 221 Intel® Server D50DNP Family Integration and Service Guide ОСТОРОЖНО: русский (продолжение) Для обеспечения надлежащего охлаждения и воздушного потока всегда устанавливайте на место крышки корпуса перед включением системы. Работа системы без установленных крышек может привести к повреждению компонентов системы. Чтобы установить крышки, выполните следующие...
- Page 222 Intel® Server D50DNP Family Integration and Service Guide УВАГА! Українська Джерело живлення в цьому виробі не містить жодних частин, які користувачі могли б обслуговувати самостійно. Цей виріб може містити більше одного джерела живлення. Обслуговувати його може виключно кваліфікований персонал. Не намагайтеся модифікувати шнур живлення змінного струму з комплекту або...
- Page 223 Intel® Server D50DNP Family Integration and Service Guide УВАГА! Українська (продовження) Для правильного охолодження та вентиляції завжди повертайте на місце кришки корпусу перед увімкненням системи. Робота системи без кришок може пошкодити деталі системи. Щоб установити кришки, виконайте такі дії: 1. Спочатку переконайтеся, що всередині системи не залишилося деталей або...
- Page 224 Intel® Server D50DNP Family Integration and Service Guide AVERTISSEMENT: Français Le bloc d'alimentation de ce produit ne contient aucune pièce pouvant être réparée par l'utilisateur. Ce produit peut contenir plus d'un bloc d'alimentation. Veuillez contacter un technicien qualifié en cas de problème.
- Page 225 Intel® Server D50DNP Family Integration and Service Guide Afin de permettre le refroidissement et l’aération du système, réinstallez toujours les panneaux du boîtier avant de mettre le système sous tension. Le fonctionnement du système en l’absence des panneaux risque d’endommager ses pièces. Pour installer les panneaux, procédez comme suit:...
- Page 226 Intel® Server D50DNP Family Integration and Service Guide WARNUNG: Deutsch Benutzer können am Netzgerät dieses Produkts keine Reparaturen vornehmen. Das Produkt enthält möglicherweise mehrere Netzgeräte. Wartungsarbeiten müssen von qualifizierten Technikern ausgeführt werden. Versuchen Sie nicht, das mitgelieferte Netzkabel zu ändern oder zu verwenden, wenn es sich nicht genau um den erforderlichen Typ handelt.
- Page 227 Intel® Server D50DNP Family Integration and Service Guide Zur ordnungsgemäßen Kühlung und Lüftung muß die Gehäuseabdeckung immer wieder vor dem Einschalten installiert werden. Ein Betrieb des Systems ohne angebrachte Abdeckung kann Ihrem System oder Teile darin beschädigen. Um die Abdeckung wieder anzubringen: 1.
- Page 228 Intel® Server D50DNP Family Integration and Service Guide AVVERTENZA: Italiano Rivolgersi ad un tecnico specializzato per la riparazione dei componenti dell'alimentazione di questo prodotto. È possibile che il prodotto disponga di più fonti di alimentazione. Non modificare o utilizzare il cavo di alimentazione in c.a. fornito dal produttore, se non corrisponde esattamente al tipo richiesto.
- Page 229 Intel® Server D50DNP Family Integration and Service Guide Per il giusto flusso dell’aria e raffreddamento del sistema, rimettere sempre le coperture del telaio prima di riaccendere il sistema. Operare il sistema senza le coperture al loro proprio posto potrebbe danneggiare i componenti del sistema. Per rimettere le coperture del telaio: 1.
- Page 230 Intel® Server D50DNP Family Integration and Service Guide ADVERTENCIAS: Español El usuario debe abstenerse de manipular los componentes de la fuente de alimentación de este producto, cuya reparación debe dejarse exclusivamente en manos de personal técnico especializado. Puede que este producto disponga de más de una fuente de alimentación.
- Page 231 Intel® Server D50DNP Family Integration and Service Guide Para obtener un enfriamiento y un flujo de aire adecuados, reinstale siempre las tapas del chasis antes de poner en marcha el sistema. Si pone en funcionamiento el sistema sin las tapas bien colocadas puede dañar los componentes del sistema. Para instalar las tapas: 1.
- Page 232 Intel® Server D50DNP Family Integration and Service Guide אזהרה: עברית מל אספקת החשמל במוצר זה לא מכילה חלקים שניתנים לשירות על ידי משתמש. ייתכן שיש יותר ממקור אספקת חש .אחד במוצר זה. לקבלת שירות יש לפנות רק אל אנשים המוסמכים לכך...
- Page 233 Intel® Server D50DNP Family Integration and Service Guide מכסי המעטפת לפני הפעלת המערכת. הפעלת המערכת ללא לקירור ולזרימת אוויר תקינים, יש תמיד להתקין מחדש את :המכסים במקומם, עלולה לגרום נזק לחלקי המערכת. להתקנת המכסים .יש לבדוק תחילה כדי לוודא שלא נשארו כלים או חלקים רופפים בתוך המערכת...
- Page 234 Intel® Server D50DNP Family Integration and Service Guide Appendix H. Glossary Term Definition One rack unit (1.75 inches) Two rack units (3.5 inches) Asynchronous DRAM BIOS Basic input output system; non-volatile firmware Baseboard management controller Coolant distribution unit Chassis Casing containing the server modules and fans/liquid-cooling plumbing...
