Intel® Data Center Blocks (Intel® DCB) for
Nutanix* Enterprise Cloud
Configuration Guide
Reference guide for ordering parts and accessories to configure a system based on
Intel® Server Board S2600WF family or Intel® Compute Module HNS2600 family.
Rev 1.2
February 2019
Intel® Server Products and Solutions
Advertisement
Table of Contents
Related Manuals for Intel DCB Series
Summary of Contents for Intel DCB Series
- Page 1 Intel® Data Center Blocks (Intel® DCB) for Nutanix* Enterprise Cloud Configuration Guide Reference guide for ordering parts and accessories to configure a system based on Intel® Server Board S2600WF family or Intel® Compute Module HNS2600 family. Rev 1.2 February 2019 Intel® Server Products and Solutions...
- Page 2 <Blank page>...
- Page 3 Initial release. December 2018 Corrected DIMM support information in Section 2.3.2, Table 1, and Table 2. Updated for the addition of Intel® DC P4610 SSD, Intel® Ethernet Network Adapter February 2019 XXV710-DA2, and ConnectX-4 Lx EN with RoCE RDMA adapter...
- Page 4 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.
-
Page 5: Table Of Contents
Glossary ..............................23 List of Figures Figure 1. System based on Intel® Server Board S2600WF family feature set identification ........8 Figure 2. Intel® Server Chassis H2224XXLR3 feature set identification ................10 Figure 3. Intel® Compute Module HNS2600BPB24NU feature set identification ............11 List of Tables Table 1. -
Page 6: Overview

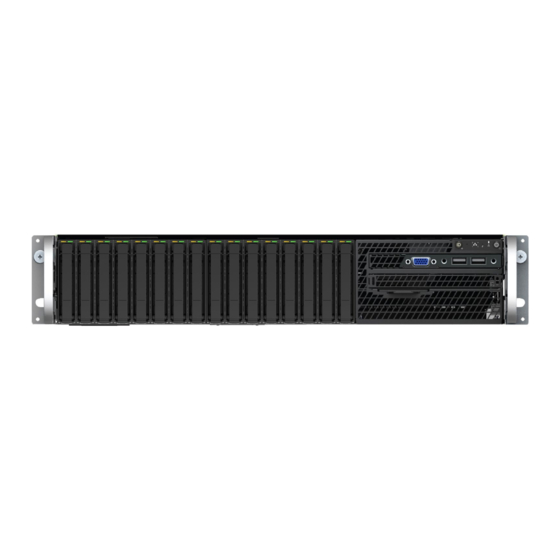

System based on Intel® Compute Module HNS2600BP family (four-node) Intel’s 2U single-node system, based on the Intel® Server Board S2600WF, is architected for up to 24 high performance flash storage devices with balanced input and output operations. Greater throughput and lower latency allow for faster access to large datasets which is desirable for enterprise class workloads. -
Page 7: System Configurations
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide System Configurations Intel® DCB for Nutanx* Enterprise Cloud are L9 Integrated systems with fixed and flexible components. These systems are custom defined using Intel’s configure-to-order (CTO) system with no fixed SKUs. The CTO tool is designed to take the risk out of component selection allowing only certified and compatible options. -
Page 8: Figure 1. System Based On Intel® Server Board S2600Wf Family Feature Set Identification
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Figure 1. System based on Intel® Server Board S2600WF family feature set identification... -
Page 9: Table 2. System Based On Intel® Server Board 2600Wf Family
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Table 2. System based on Intel® Server Board 2600WF family Intel® Server System R2216WF0NU Included (1) – 2U chassis with Quick Reference Label affixed to top cover (1) – Intel® Server Board S2600WF0 – iPC S2600WF0 (2) –... -
Page 10: System Based On Intel® Compute Module Hns2600Bpb Family
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide System Based on Intel® Compute Module HNS2600BPB Family The product table in this section provides order code information and detailed descriptions for the Intel Server Chassis H2224XXLR3 and Intel Compute Module HNS2600BPB24NU. Items identified by Intel Product Code (iPC) are orderable accessories or spares. -
Page 11: Figure 3. Intel® Compute Module Hns2600Bpb24Nu Feature Set Identification
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Figure 3. Intel® Compute Module HNS2600BPB24NU feature set identification... -
Page 12: Table 3. System Based On Intel® Compute Module Hns2600Bp Family
Included with (1) – Intel® Server Board S2600BPB – iPC S2600BPB Intel® Compute • Includes (2) integrated 10 GbE RJ-45 connectors based on Intel® Ethernet Adapter X550 Module (1) – Power docking board – iPC PHWBPNPB24 (1) – Front 1U passive heat sink – iPC FXX2678X108HS (1) –... -
Page 13: Required Options
2.3.2 Memory Options The system based on Intel Server Board 2600WF family supports up to 24 DIMMs (12 DIMMs per processor). The system based on Intel Compute Module HNS2600BP family supports up to 12 DIMMs per node. All DIMMs in a system must be identical. The following memory options are available for both systems: •... -
Page 14: Storage Options
2.3.3 Storage Options The system based on Intel Server Board 2600WF family supports up to 16 drive devices in the default configuration with an optional upgrade to support up to eight additional devices for a total of 24. The system based on Intel Compute Module HNS2600BP family supports up to 24 drive devices or six per node. - Page 15 Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide For RoCE-based RDMA storage networks, a Mellanox* MCX4121A-XCAT ConnectX-4 Lx EN adapter can be installed by a system integrator under Nutanix certification criteria. If a Mellanox adapter is used in RDMA mode, the use of a non-RDMA mode Ethernet adapter is also required to allow for standard server/virtual machine network communications.
-
Page 16: Optional Configuration Accessories And Upgrades
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Optional Configuration Accessories and Upgrades Rail Options CAUTION: Exceeding the rail kit’s specified maximum weight limit or misalignment of the server in the rack may result in failure of the rack rails and damage to the systems or personal injury. Using two people or the use of a mechanical assist tool to install and align the server into the rack is highly recommended. -
Page 17: System Based On Intel® Server Board S2600Wf Family Options
System based on Intel Server Board S2600WF family only. 735858245319 5032037039833 System Based on Intel® Server Board S2600WF Family Options Additional options are available for the system based on Intel® Server Board S2600WF family. Table 7. System based on Intel® Server Board S2600WF family options Product Image Details Description 2U Hot-Swap 8x2.5”... - Page 18 Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Product Image Details Description 4-Port PCIe Gen3 x8 Switch SB X8 4-port switch add-in card allowing four AIC AXXP3SWX08040 (4) additional PCIe* SSD drives within the system. AXXP3SWX08040 958241 Note: In the Intel® Configurator Tool, this switch is automatically populated within Intel®...
- Page 19 Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Product Image Details Description Trusted Platform Module TPM 2.0 for use in China (TPM) 2.0 AXXTPMCHNE8 AXXTPMCHNE8 960608 735858347341 5032037107068 AXX1300TCRPS 1300W AC CRPS 80 PLUS* Titanium efficiency power supply module.
-
Page 20: Spare And Replacement Parts
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Spare and Replacement Parts The following table lists the spare parts that are unique to Intel® DCB for Nutanix* Enterprise Cloud systems. For other spare and replacement parts, refer to the respective system configuration guides listed in Appendix A. -
Page 21: Extended Warranties
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Extended Warranties Table 9. Extended warranties Product Image Details Description Server System Extended Warranty Extended warranty for complete server systems. SVCEWHWSY 923113 Product type Warranty... -
Page 22: Appendix A. Additional Resources
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Appendix A. Additional Resources For additional information on Intel® DCB and Nutanix*, refer to the following resources. • Intel® Data Center Block support page Intel® Server Configurator Tool • •... -
Page 23: Appendix B. Glossary
Intel® Data Center Blocks for Nutanix* Enterprise Cloud Configuration Guide Appendix B. Glossary Term Definition Add-In Card Cable Management Arm Configure-to-Order Intel® DCB Intel® Data Center Blocks International Article Number (barcode) Field Replaceable Unit Intel Product Code Master Material order number...
