Table 3: Front panel controls and connectors (cont.)
Item
7
Data Out connectors (Ch2)
8 Data Out connectors (Ch3)
9 Data Out connectors (Ch4)

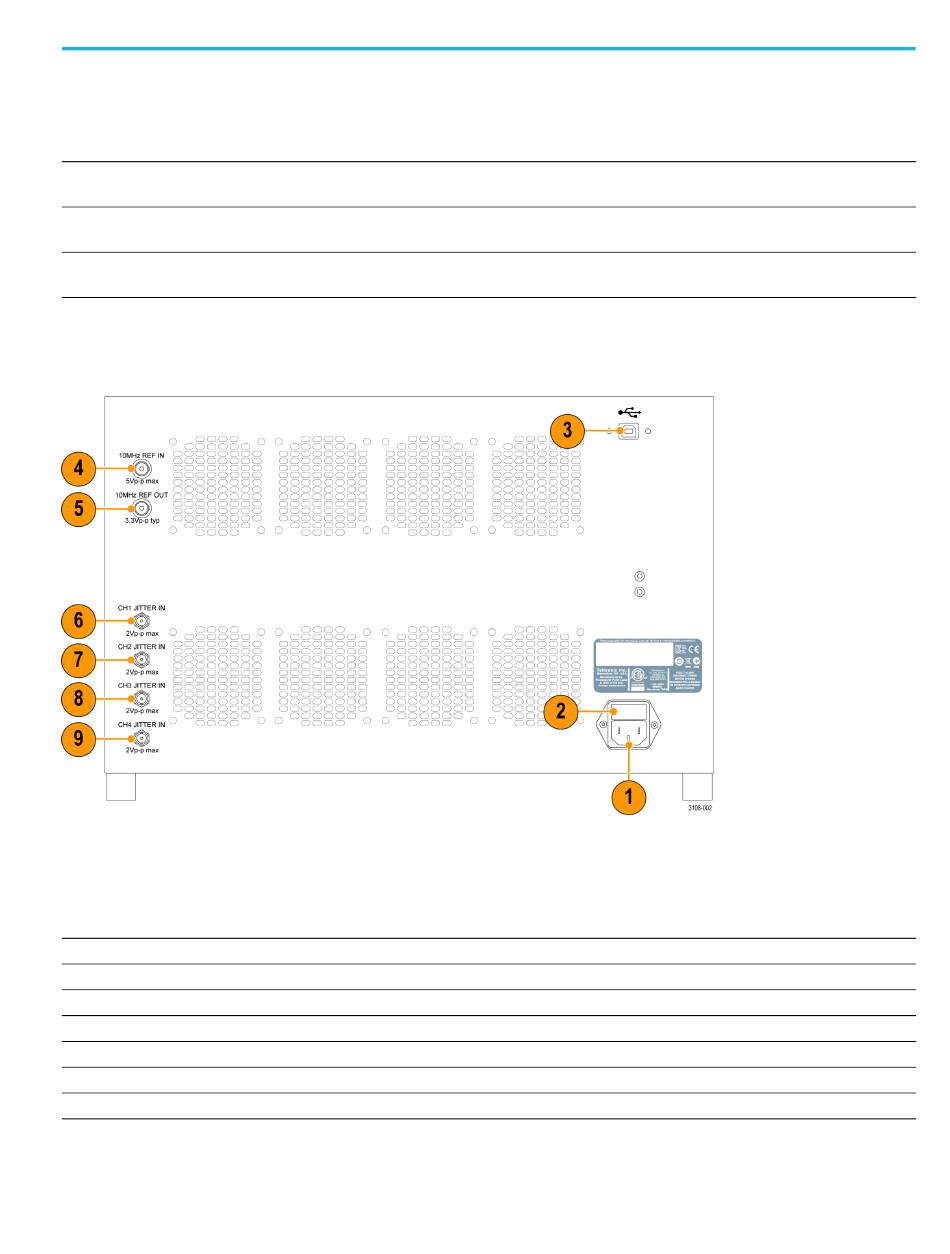

Figure 2: Rear panel connectors

Table 4: Rear panel connectors

Item
1 AC line receptacle
2 Fuse holder
3
USB connection
4 10 MHz REF IN
5 10 MHz REF OUT
6 JITTER IN (Ch1)
7 JITTER IN (Ch2)
PPG1600, PPG3000, & PPG3200 Pattern Generator User Manual
Description
Plus and minus Data outputs with 2.92 mm connectors (PPG1602, PPG1604, PPG3002 or
PPG3004) or 2.4 mm connectors (PPG3202 or PPG3204)
Plus and minus Data outputs with 2.92 mm connectors (PPG1604, PPG3004) or 2.4 mm
connectors (PPG3204)
Plus and minus Data outputs with 2.92 mm connectors (PPG1604, PPG3004) or 2.4 mm
connectors (PPG3204)
The following illustration and table describe the rear panel connectors. The
illustration shows a 4-channel instrument; 1-channel and 2-channel instruments
have fewer controls in different locations on the instrument.
Description
Connect the appropriate power cord here.
Line fuse, 5 X 20 mm
Connect the USB cable here to control the instrument from an external computer.
BNC input for external frequency reference
BNC output for buffered version of the frequency reference (internal or external)
SMA Ch1 input for external jitter insertion (Option JIT)
SMA Ch2 input for external jitter insertion (Option JIT)
Controls and connectors
5
