Functional verification

Instrument setup

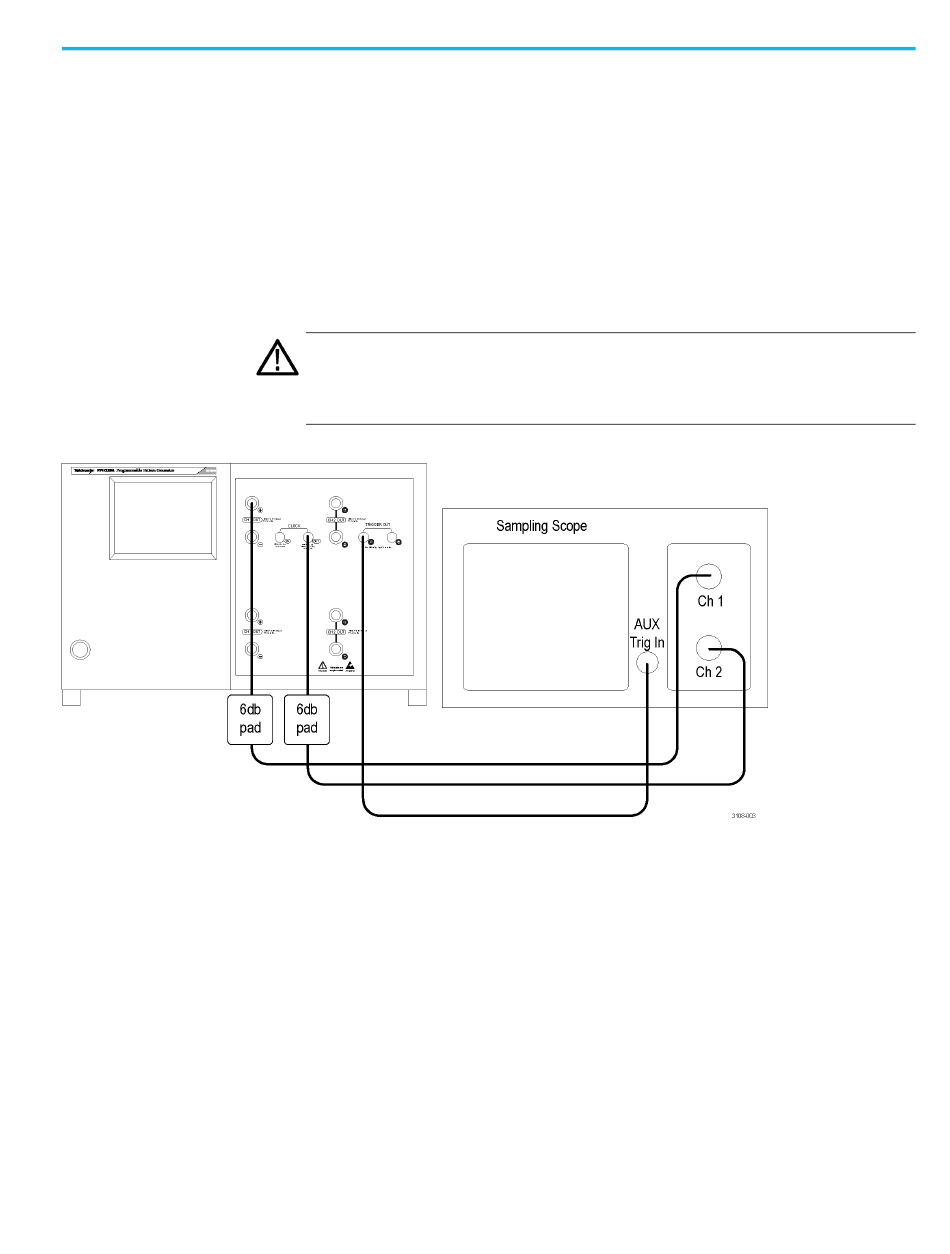

Figure 3: Verification setup
PPG1600, PPG3000, & PPG3200 Pattern Generator User Manual
A typical setup for verifying the pattern generator operation is shown in the
following figure. The diagram uses only the + side of all differential connections,
the - side can be tested in the same manner. Use a Tektronix DSA8300 Digital
Serial Analyzer Sampling Oscilloscope or similar for functional verification.
CAUTION.
Damage to the pattern generator and/or associated equipment can
occur if the input and output voltage ratings are exceeded. Check the input and
output voltage ratings for your equipment. The following illustration shows
electrical attenuators where voltage ratings are commonly exceeded.
