Graphical user interface (GUI) touch screen

PPG1600, PPG3000, & PPG3200 Pattern Generator User Manual
This unit is equipped with touch screen controls. All manual settings are accessed
through this user interface. An example of the GUI is shown in the following
figure.
The following table gives a listing of where to find various parameters within
the menu structure.

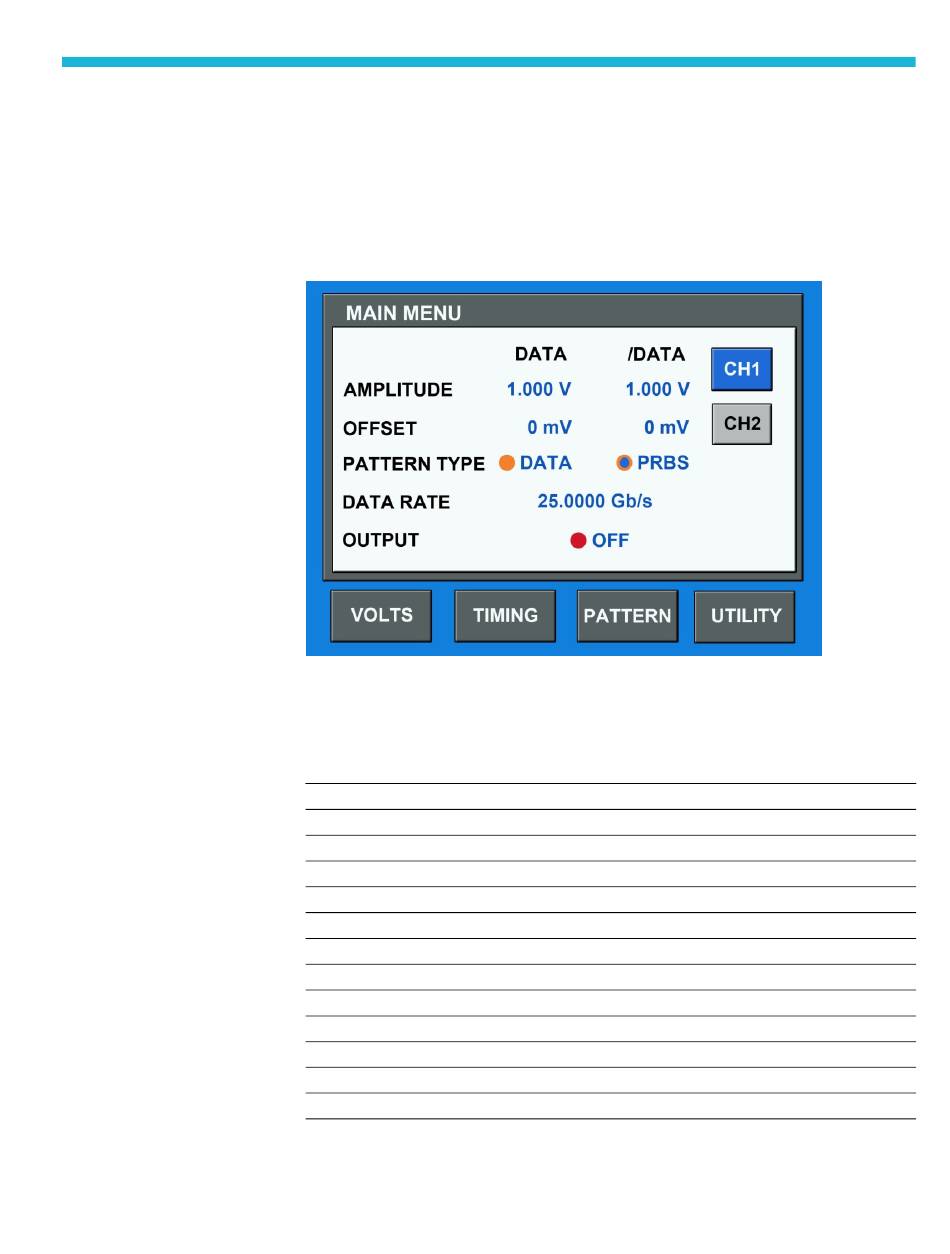

Figure 8: GUI Main menu

Table 6: GUI menu parameter locations

Parameter
10 MHz Ref (int / ext)
Amplitude
Crossing Point
Data Rate
External Clock Enable
Internal Clock Rate
Jitter Enable
Linking
Offset Voltage
Output Clock Rate
Pattern Length
Pattern Type
Pattern (user defined)
Found in menu(s)
UTILITY
MAIN, VOLTS
VOLTS
MAIN, TIMING
TIMING [EXTFREQ]
TIMING
TIMING [JITTER]
VOLTS
MAIN, VOLTS
TIMING
PATTERN
MAIN, PATTERN
PATTERN [DATA]
25
