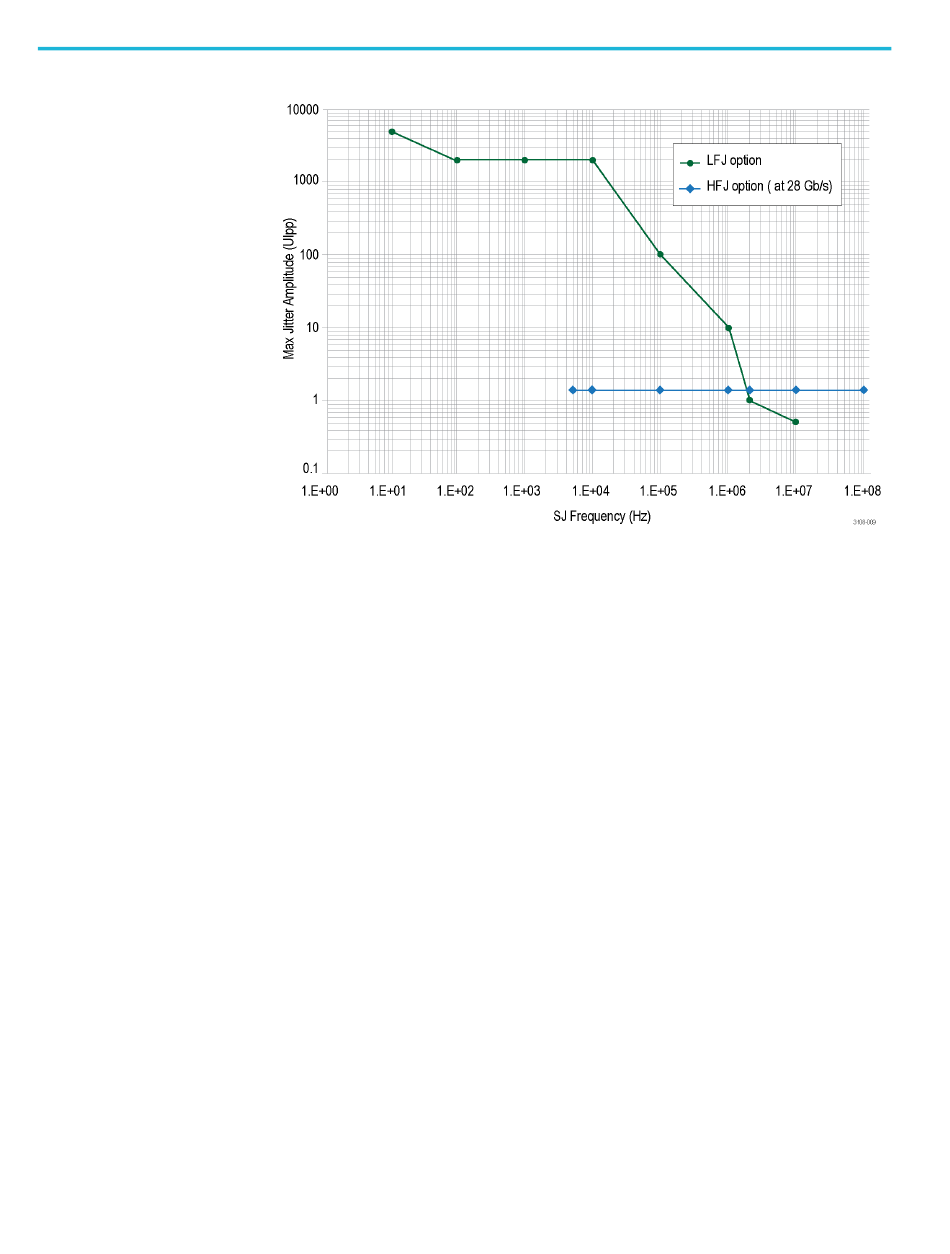

Speciﬁcations

Trigger system

Trigger waveform

High level

Low level

Output impedance

Connector type

The Trigger output provides either a pattern synchronous trigger signal or a

clock/n signal.

Pattern mode trigger is synced to channel 1 pattern.

Pattern mode. 1 pattern per trigger for pattern length = multiple of 64

64 patterns per trigger for other pattern lengths

Clock/n mode. 64 through (2

Duty cycle. 50%, for either Pattern or Clock/n

0 V, typical

-500 mV, typical

50 Ω, DC-coupled

SMA

PPG1600, PPG3000, & PPG3200 Pattern Generator User Manual

- 64), n = any multiple of 64 in that range
