Controls and connectors

Controls and connectors

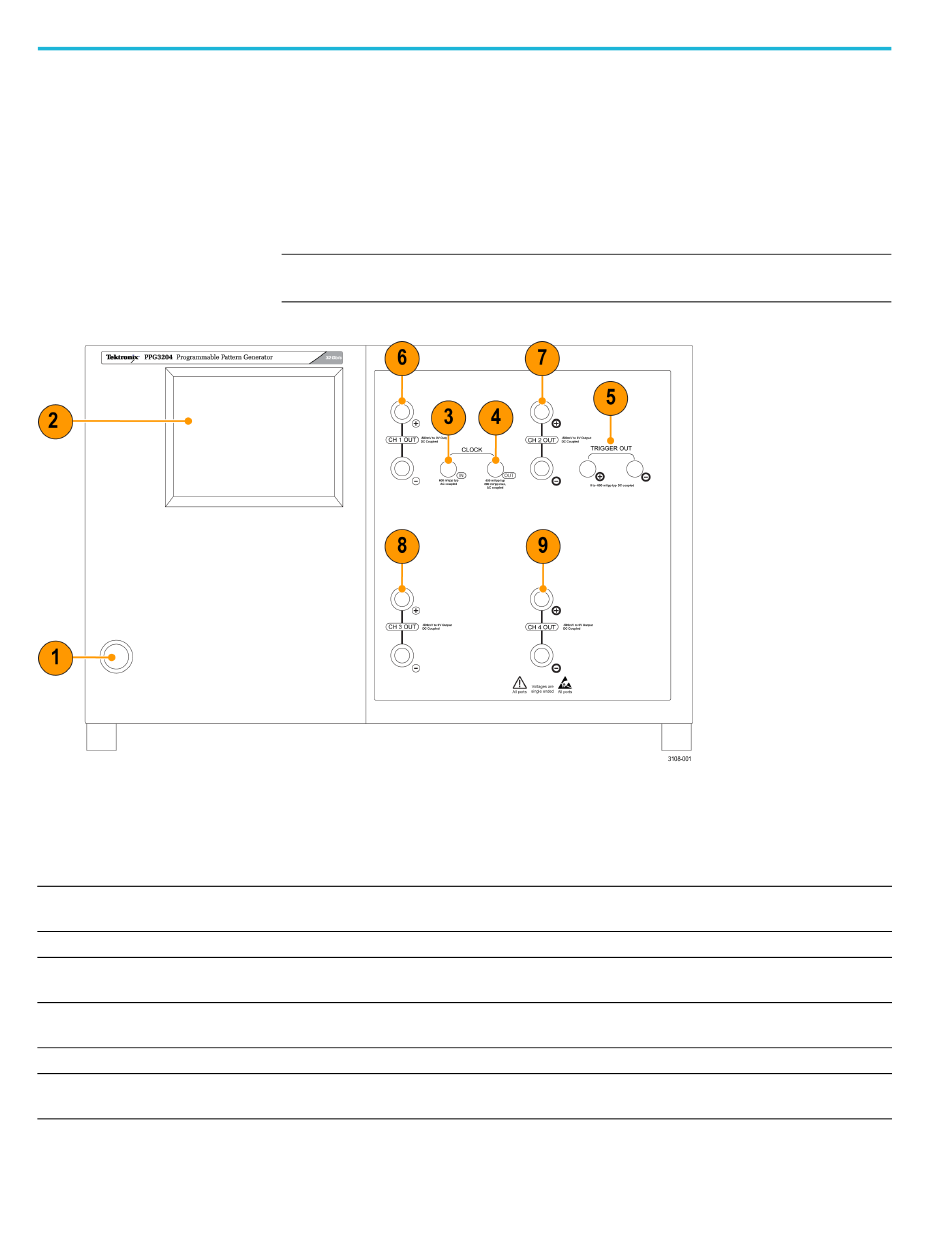

Figure 1: Front panel controls and connectors

Table 3: Front panel controls and connectors

Item
1 On/off switch
2 Display
3 Clock In
4
Clock Out
5
Trigger Out
6
Data Out connectors (Ch1)
4
The following illustration and table describe the front panel controls and
connectors. The illustration shows a 4-channel instrument; 1-channel and
2-channel instruments have fewer controls in different locations on the instrument.
NOTE.
The exact location and spacing of the Data Out connectors may be different
depending on the instrument type or output options ordered with the instrument.
Description
Push this button to turn the instrument on and off. The green indicator inside the button lights
up when the instrument is on.
The display is a touch screen graphical user interface.
Clock input with 2.92 mm connectors (PPG1600 and PPG3000 series) or 2.4 mm connectors
(PPG3200 series), AC coupled. Used to supply an external clock signal.
Clock output with 2.92 mm connectors (PPG1600 and PPG3000 series) or 2.4 mm connectors
(PPG3200 series), AC coupled
SMA Differential Trigger Output. Levels swing from –500 mV to 0 V. Can be used single ended.
Plus and minus Data outputs with 2.92 mm connectors (PPG1600 and PPG3000 series) or
2.4 mm connectors (PPG3200 series)
PPG1600, PPG3000, & PPG3200 Pattern Generator User Manual
