Raption 150 Compact Service Manual
Error code in remote
D

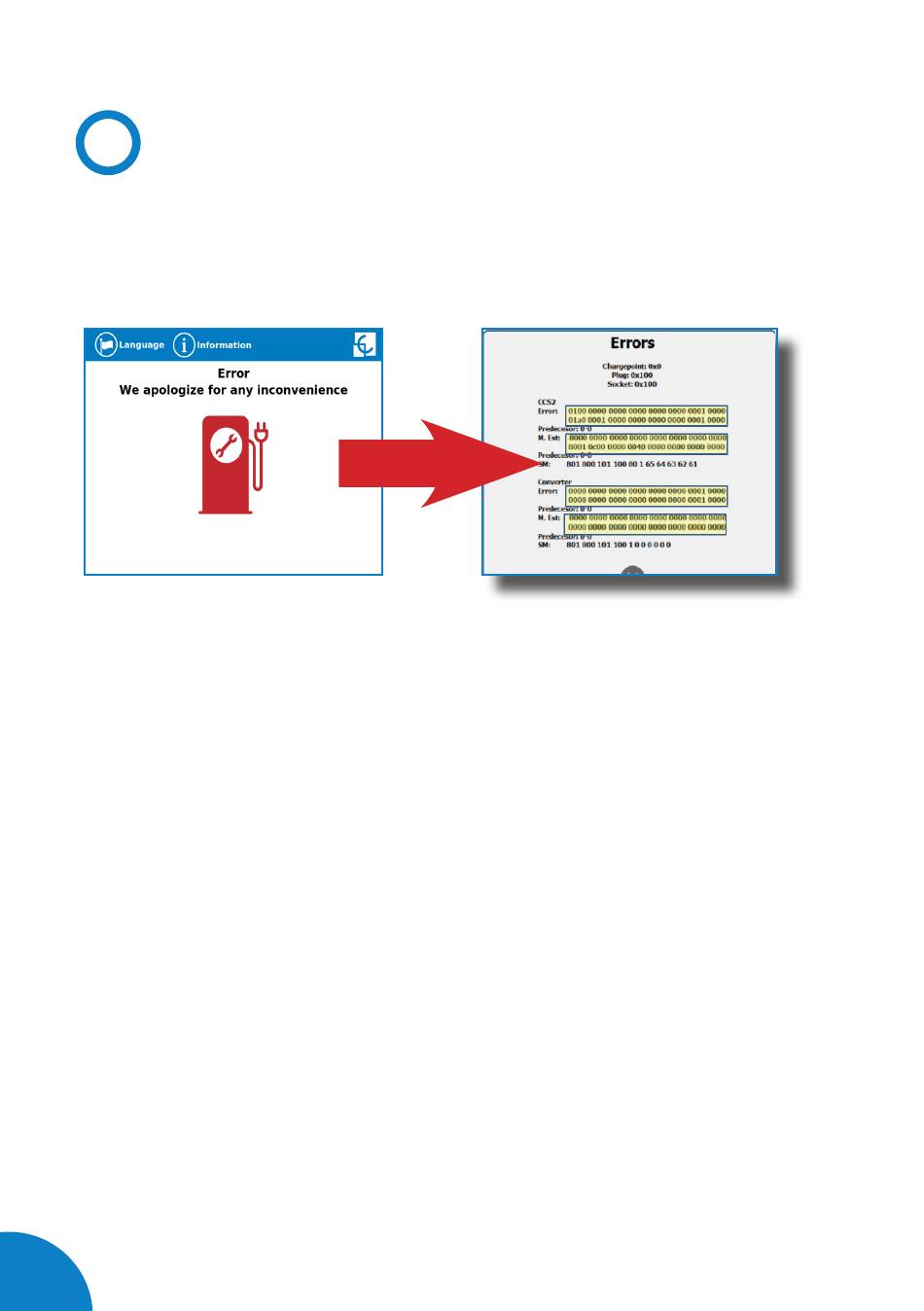

As it has been shown at the beginning of this chapter, error can be consulted
directly from the screen, by pressing the connector in fault status and the
'Information' button.
However, in most cases, service staff wants to know this code in advance in order
to prepare the on-site assistance. This error code can be consulted remotely from
the log files.
Search the Vector of Error Flags Objects section:
Nov 8 09:39:18 raption user.info pss[306]:
Error Flags Object -> Module Type: 31, Name: CCS2 Error flags: 0000 0000 0000 0000 0000 0000 0000 0020 Historical error
flags: 0000 0000 0000 0000 0000 0000 0000 0120 Predecessor errors: 0 - 0 Status message flags: 0000 0000 0000 0000 0000
0001 0000 0001 Historical status message flags: 0000 0000 0000 0000 0000 0001 0000 0001 Predecessor status messages:
0 - 0 State machines: 701 700 2080 80 1 0 701 700 1080 80 1203
Nov 8 09:39:18 raption user.info pss[311]:
Error Flags Object -> Module Type: 10, Name: Converter Error flags: 0000 0000 0000 0000 0000 0000 0000 0000 Historical
error flags: 0000 0009 0000 0000 0000 0000 0000 4000 Predecessor errors: 0 - 0 Status message flags: 0000 0000 0000
0000 0000 0000 0000 0000 Historical status message flags: 0000 0000 0000 0000 0000 0000 0000 0000 Predecessor status
messages: 0 - 0 State machines: 2 803 802 801 800 0 0 0 0 0 0
69
------------------- VECTOR OF ERROR FLAGS OBJECTS -------------------
------------------- VECTOR OF ERROR FLAGS OBJECTS -------------------
