PC Screen (HMI)

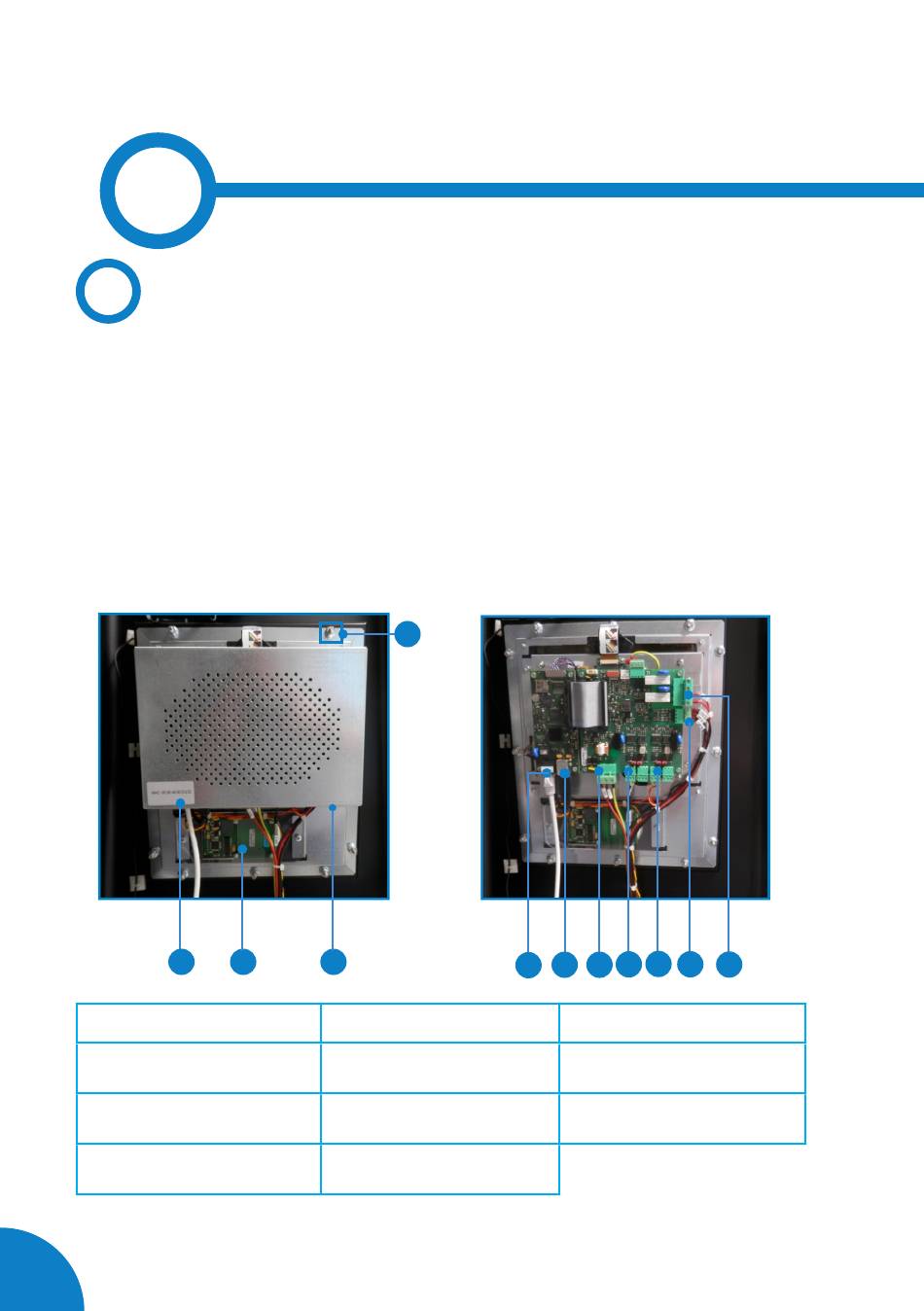

The PC screen (HMI) and the RFID reader are located at the right door. Normally,
at the RJ45 port it is connected the Ethernet cable coming from the router when
it is installed. However, it is also here where the Service PC should be connected
when Charging Station has to be configured.
Internal application and firmware of the Charging Station are located in the
Screen. This device, among other functions, is controlling the communications of
the internal components.
1
1- MAC Address sticker
4- Cover's nut x 4
7- PC Screen power supply
10- Power supply supervision
Note: Depending on the model, the components can vary.
21
4
2 3
2- RFID card reader
5- RJ45 port
8- RS485_1 communication
11- Courtesy lights connector
7 8 9 10 11
5 6
3- PC Screen cover
6- USB port
9- RS485_2 communication
