Decoding the error
There is a specific order which has to be followed to decode the error.
First step is to identify the parts of the error.

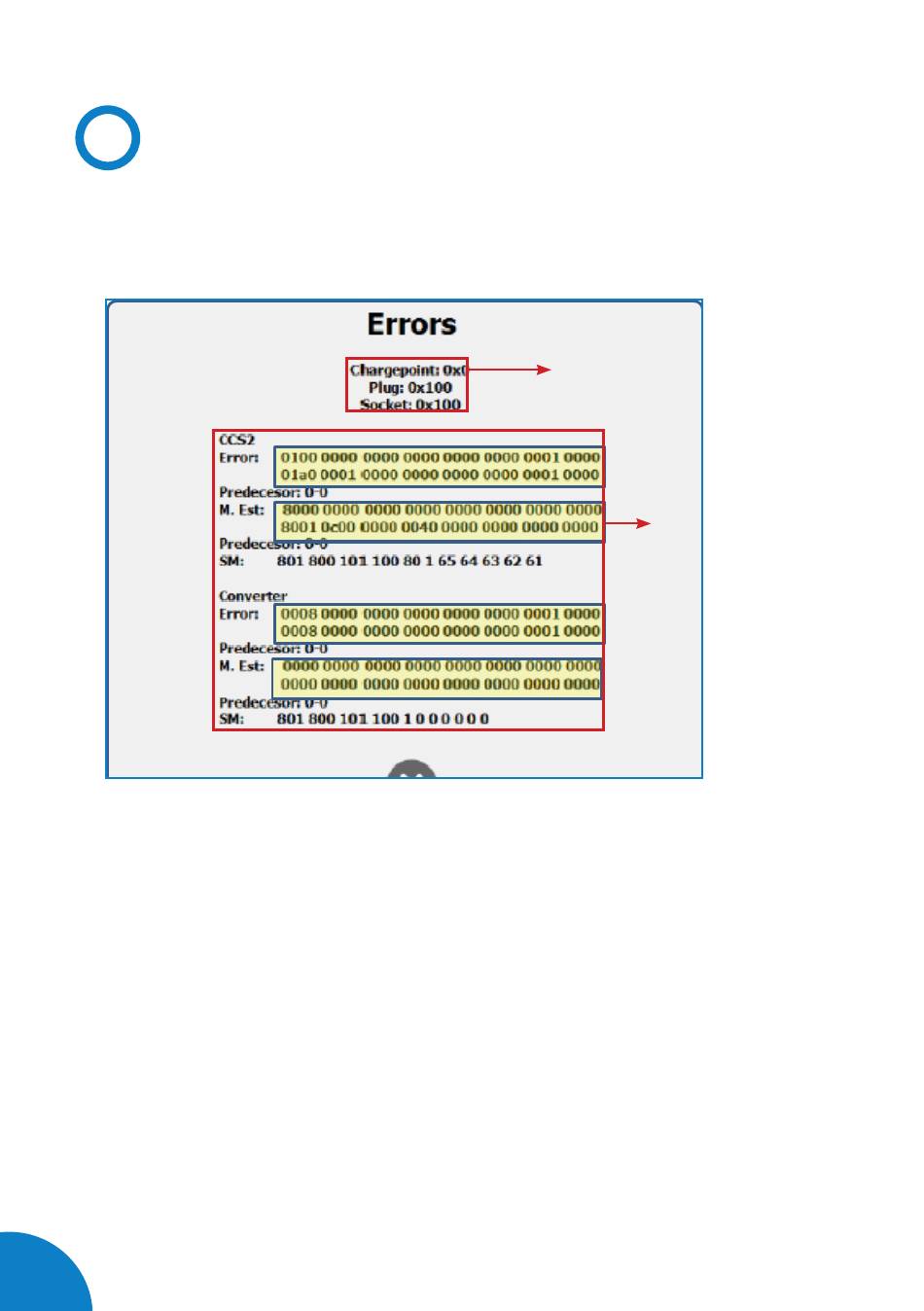

As indicated in the picture above there are 'Engine errors' and also 'DC errors'.
Errors from AC side are normally easier to identify. Most of the times they can be
fixed with the 'Engine error' section.
Procedure for DC charging is more complex than AC. For that reason, there is the
second part that provide more information about the errors that may occur.
Regardless of the error type, the check order always must be:
1. Engine errors
2. DC errors.
59
Engine errors
DC errors
