Raption 150 Compact Service Manual
G

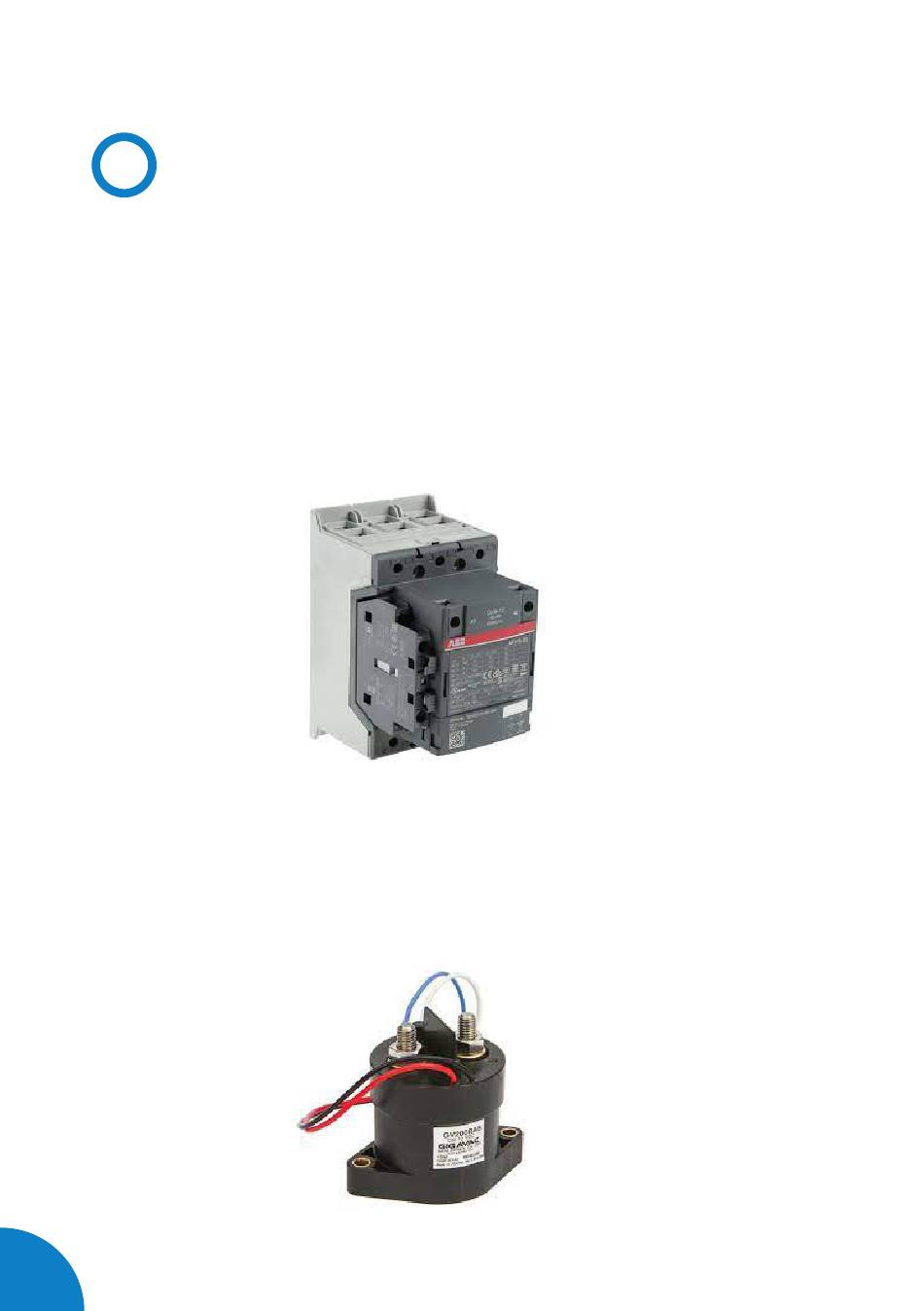

Contactors
There are included two of them before the power modules, one for operate power
modules from 1 to 3, and other for power modules from 4 to 6.
It closes when Charging Station is powered ON for power modules detection
procedure. This procedure may last around 5 minutes. If it remains closed for
a longer period of time, it means that one or more power modules haven't been
detected. Check if they are correctly supplied.
The contactor has to be opened in standby and it closes when Charging Station is
charging.
After the power modules is located another contactor able to power ON all the
power modules in order to provide only one vehicle with a power of 150kW. At the
moment that more than one vehicle would charge simultaneously, the conector
opens and provide from power modules 1 to 3 to one vehicle 75kW power, and
from power modules 4 to 6 to the second vehicle the other 75kW available.
47
