Protection devices

MCCB/Disconnector
A
Main disconnector, located in the bottom of the charger.
These devices isolates the Charging Station from the grid. The disconnector not
only is a circuit breaker, it also protects against overcurrents and short-circuits.
It is installed a rotary handle which makes easier to control the different circuit
operations by rotation.

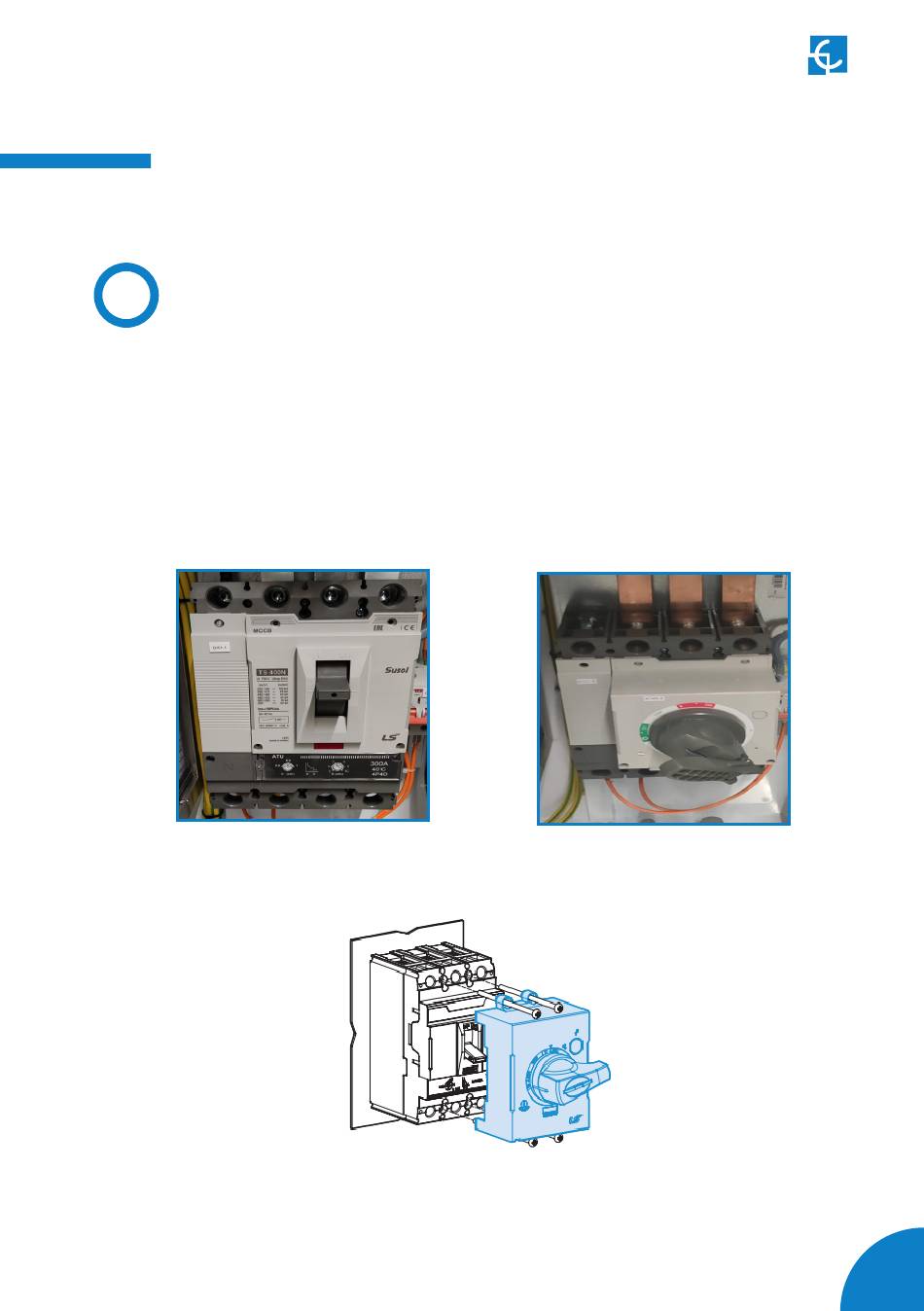

MCCB before rotary handle MCCB with rotary
installed handle installed
