Raption 150 Compact Service Manual
C
RFID reader

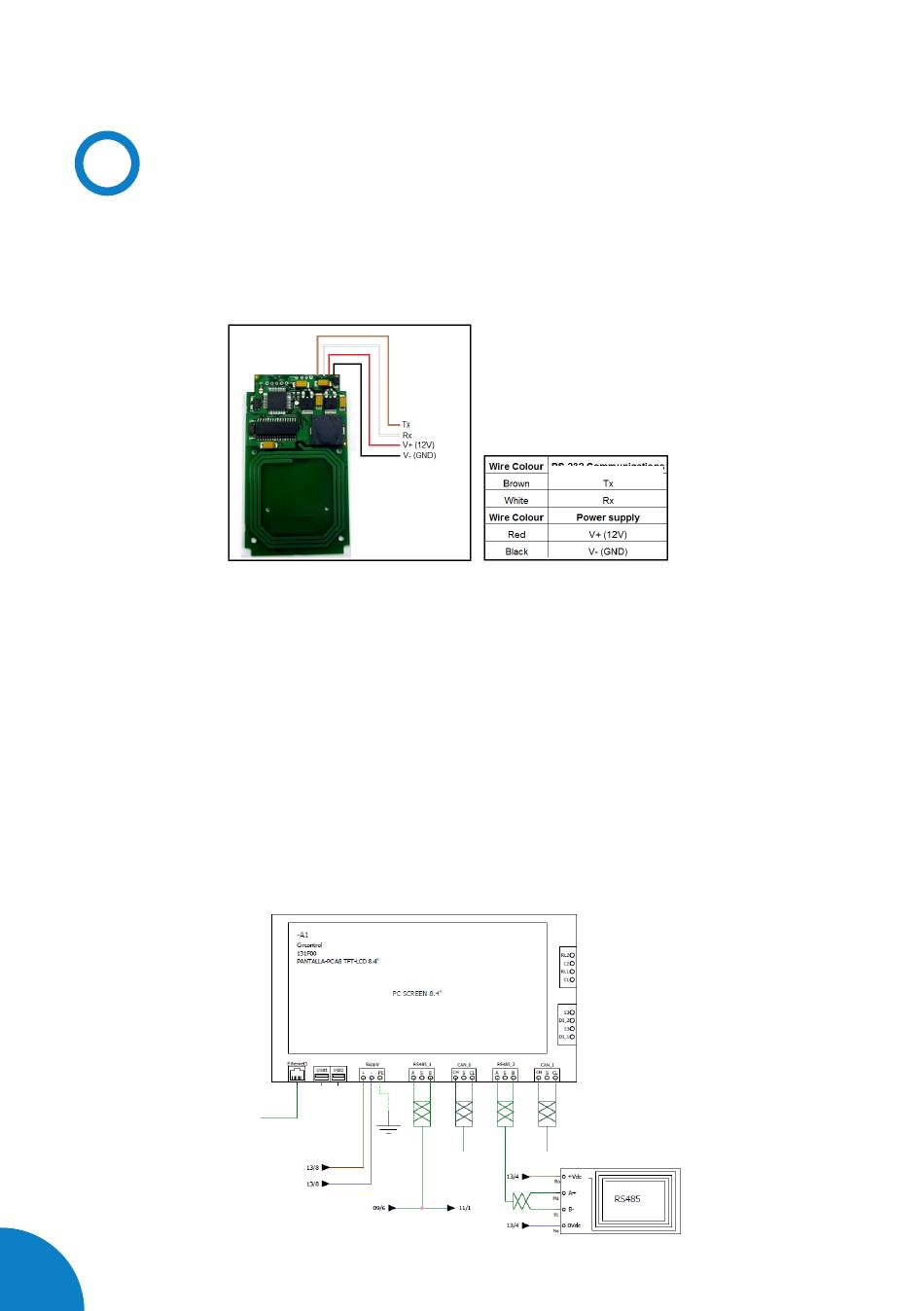

The RFID reader is a device that can send and receive radio signals with RFID
tags to identify the end-user without physical contact between the charger and
the card.
Operation LEDs
RFID reader has a LED status indicator. Looking at the LED status indicator colour:
Green LED: RFID configured and ready to be used. In this case, there is no additional
configuration required to operate with RFID reader.
Orange LED: RFID not configured. Show a RFID card and reboot the Charging
Station.
Electrical scheme
43
RS-485 Communications
