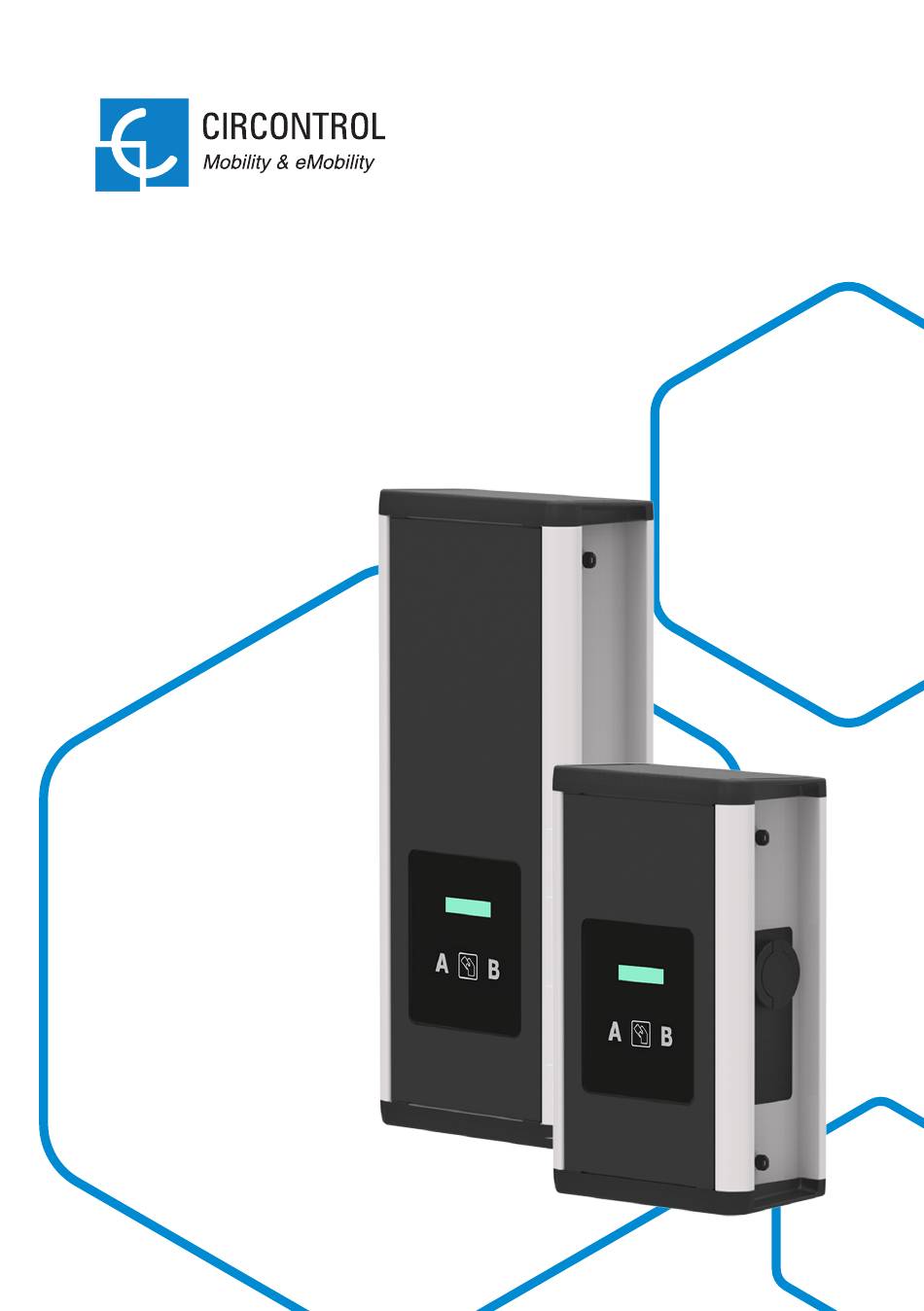

  • Page 1 Wallbox eVolve Series Instruction Manual...
  • Page 2 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2017 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 3: Table Of Contents

    Here’s your guide to use and configure eVolve. 1 — So, hello! 6 — Integrations 2 — Features 7 — OCPP 1.5 3 — How to use it? 8 — Monitoring 4 — How to configure it? 9 — Technical Data 5 — 3G Communications 10 — Need help?
  • Page 4 Wallbox eVolve Series Instruction Manual This manual provides information about the usability and configuration of the Wallbox eVolve Smart, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. It contains all the necessary information for safe use and help to get the best performance from it with step-by-step configuration instructions.

  • Page 5: So, Hello

    (broken reject all responsibility and the plugs, caps that don’t close...). warranty will be void. • Use only Circontrol supplied • Comply strictly with electrical spare parts. safety regulations according to your country. • Do not use this product if the enclosure or the EV connector is •...

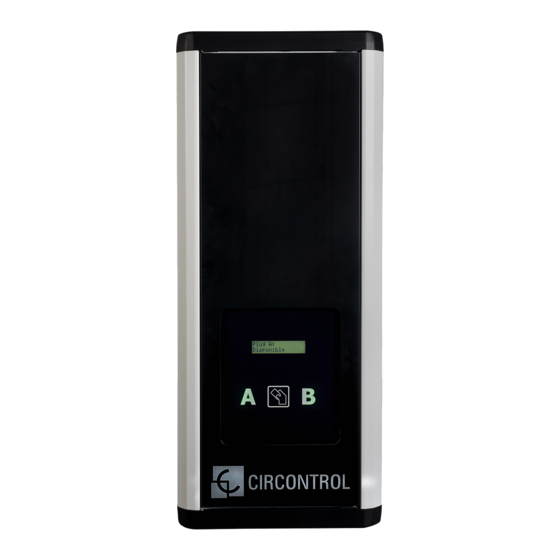

  • Page 6 Wallbox eVolve Series Instruction Manual CIRCONTROL 1 - Display 2 - Proximity Card Reader 3 - Plug A LED Beacon 4 - Plug B LED Beacon...

  • Page 7: Features

    Features M A I N F E AT U R E S O F T H E U N I T Charge Point may not include elements of electrical protection. • Display: Information about the • Energy metering: Integrated status of the connectors and meter built is measuring power detailed data as kWh and duration and energy consumed by the EV...
  • Page 8 Wallbox eVolve Series Instruction Manual Start Charging 1. The first step is to show the proximity card to the reader* Once done, the Led Beacon turns Blue and the Display shows the following sequence of messages: *If the proximity card reader is disabled, charge transaction starts automatically when a vehicle is detected.

  • Page 9: How To Use It

    How to use it? Stop Charging 1. The first step is to show the proximity card to the reader* Once done, the Led Beacon turns Green and the Display shows the summary of the charge transaction: *If the proximity card reader is disabled, charge transaction stops automatically when a cable is disconnected from the vehicle.
  • Page 10 Wallbox eVolve Series Instruction Manual Introduction The Charge Point can be configured and monitorized to establish preferences or specific setup using integrated Ethernet communication port allocated in the main controller device. What’s needed Before proceeding with the configuration, make sure all the following is...

  • Page 11: How To Configure It

    How to configure it? Connection Charge Point is delivered with default network setting of “DHCP enabled”. It means that the charge station will try to obtain an IP address from a DHCP server available on the network. Connecting a PC directly with the Charge Point needs to be done with static IP address.
  • Page 12 Wallbox eVolve Series Instruction Manual Setup web page Setup web page allows managing networking setup, modem 3G setup, upgrading the device and other options. To access the setup web page, open a web browser and enter the following address: http://”IP ADDRESS”/html/setup.html...
  • Page 13 Network setup This section provides basic configuration of the network parameters. Value Description Host name Name of the device on the network DHCP Enable or disable the IP address assignment by a DHCP server DHCP Client ID Client ID associated to the DHCP Server (If available) Address IP address assigned to the charge point...
  • Page 14 Wallbox eVolve Series Instruction Manual Modem setup (only 3G models) For enabling 3G integrated modem check this section, to set the parameters provided by the SIM Card network operator. Value Description Access point name Consult SIM Card network operator User...
  • Page 15 Public address manager This section is for integrations and allows setting the IP address to establish connection between the Charge Point and the Central System. Value Description Address type • Local address: select this option if the OCPP central system is connected to the same private network than the charge point is already connected.
  • Page 16 Wallbox eVolve Series Instruction Manual Locale setup This section allows changing the language of the Display. Value Description Language Selecting desired language to show Time setup This section allows setting the time and region unit time. Value Description Primary NTP Server...
  • Page 17 Dynamic DNS setup Dynamic DNS is a system that updates in real-time the public IP address assigned to a domain name server. Value Description Server type Select the type of Dynamic DNS Server Hostname Parameters provided by dynamic DNS server User Password Server...
  • Page 18 Wallbox eVolve Series Instruction Manual Security setup Prevent unauthorised access to the setup web page. All of the parameters are disabled by default factory settings. Value Description • ON: authentication enabled Password • OFF: authentication disabled Username Username and password authentication for setup.html web page...
  • Page 19 System information This section provides basic information about the unit. Value Description Identifier of the network card of the unit Version Upgrade Version of the firmware currently installed and link to the upgrade web page Powerstudio version Engine version of PowerStudio Devices status Link that allows viewing the status of the configured devices...
  • Page 20 Wallbox eVolve Series Instruction Manual System upgrade Upgrade web page allows to upgrade the firmware of the Charge Point remotely. This file is provided by the service centre. Direct link: http://”IP ADDRESS”/html/upgrade.html Firmware file transfer must not be interrupted. Failure of the file transfer involves irreversible damage the main controller of the Charge Point.
  • Page 21 Logs Log web page is a log that is created since charge point is powered ON. If charge point is restarted this log is erased and immediately is created a new one. http://”IP ADDRESS”/services/chargePointsInterface/log.html Direct link:...
  • Page 22 Wallbox eVolve Series Instruction Manual Parameters Access “Modem setup” section of the “Setup web page” (refer to Section 4 for more information). Once SIM card is inserted on the embedded 3G modem, enter the following parameters: - APN (Access Point Name)

  • Page 23: 3G Communications

    3G Communications SIM PIN Go to following address: http://”IP ADDRESS”/html/modem-status.html The first time that SIM card is inserted, the Charge Point asks to enter its PIN number. After entering PIN number and clicking on Confirm button, it shows the following confirmation message: *PIN number will not be required anymore after entering for the first time and the device will start 3G communications automatically.
  • Page 24 Wallbox eVolve Series Instruction Manual Connection Status When the 3G connection is successful, following message appears on the web page of modem status. http://”IP ADDRESS”/html/modem-status.html Direct link: Value Description Connection • 3G communications status • Data access protocol used •...
  • Page 26 Wallbox eVolve Series Instruction Manual Before starting Following items must be taken into account before proceeding in order to ensure proper performance: • If 3G modem is enabled, select Embedded Modem within Public Address Manager section: Direct link: http://”IP ADDRESS”/html/setup.html •...

  • Page 27: Integrations

    Integrations Setting up Once the desired integration is activated on the charge point, it starts as configuration mode and all fields are empty. The data is always saved even when the Charge Point is powered off. In order to setting up the integration open a web browser and enter the following link: http://”IP ADDRESS”:8080 Use following credentials to access:...
  • Page 28 Wallbox eVolve Series Instruction Manual Management system (CS) Allows the Charge Point to know where the central system is hosted to notify all the requests. Following fields are mandatory to complete: Value Description Host URL URL address of the central system User Authentication for central system.

  • Page 29: Ocpp 1.5

    OCPP 1.5 Charge Box (CB) Please contact to the Central System to get the configuration parameters. Value Description Charge Box Id. Charge point identifier Protocol If HTTPS is selected, make sure to have CS Server CA certificate Require CS client certificate *Provided by the Central System OCPP Listening port...
  • Page 30 Wallbox eVolve Series Instruction Manual OCPP Settings Select proper values according to OCPP Central System parameters. Value Description Use local white-list • Yes: local list of authorized users enabled • No: local list of authorized users disabled • White-list first: ID authorization has first...
  • Page 31 Value Description • Yes: If user is not present locally in the Authorize always in offline mode local white-list and charge point cannot ask to the backend, user is allowed to start a new charge transaction. • No: If user is not present locally in the local white-list and charge point cannot ask to the backend, the user is not allowed to start a new charge transaction.
  • Page 32 Wallbox eVolve Series Instruction Manual Value Description • Partial: Consumed value of energy by the Energy for Start/Stop transaction vehicle sent between start and stop • Total: Existing value total accumulated energy of the meter, is sent between start and stop Energy for •...
  • Page 33 Value Description • Yes: Charge Point sends an authorization Require auth. At remote Start request before starting a new remote charge transaction request. • No: Charge Point starts a new remote charge transaction without authorization request. Active Power in • Yes: Send power (Power.Active.Import) MeterValues energy...
  • Page 34 Wallbox eVolve Series Instruction Manual Finalizing Final actions to complete the OCCP configuration. Value Description Save Setup Save settings and apply changes. Refresh Restore data entered. Configuration: Upload Export configuration into a single file from file Configuration: View file Import configuration from a file...
  • Page 36 Wallbox eVolve Series Instruction Manual...

  • Page 37: Monitoring

    Monitoring Client Charge Point status can be monitored using a software provided by Circontrol:...
  • Page 38 Wallbox eVolve Series Instruction Manual Plug section This section describes the plug status and other useful information.
  • Page 40 Wallbox eVolve Series Instruction Manual GENERAL DATA Display LCD Multi-language Light beacon RGB Colour indicator RFID reader ISO / IEC 14443A/B MIFARE Classic/Desfire EV1 ISO 18092 / ECMA-340 NFC 13.56MHz Meter MID Class 1 - EN50470-3 MECHANICAL DATA Enclosure rating...

  • Page 41: Technical Data

    Technical Data CONNECTIVITY Ethernet 10/100BaseTX (TCP-IP) Cellular* Modem 3G / GPRS / GSM Interface protocol OCPP ELECTRICAL DATA Power supply 1P+N+PE / 3P+N+PE Input voltage 230VAC+/- 10% / 400VAC+/-10% Frequency 50Hz / 60Hz Overcurrent protection* MCB (curve C) Safety protection* RCD Type A (30mA) / Type B Surge protection* Transient surge protector...
  • Page 42 Wallbox eVolve Series Instruction Manual...

  • Page 43: Need Help

    Need help? In case of any query or need further information, please contact our Post-Sales Department ps-support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941...
  • Page 44 Wallbox eVolve Series Instruction Manual CIRCONTROL WALLBOX EVOLVE SERIES INSTRUCTION MANUAL A comprehensive guide on how to use and configure your Wallbox eVolve. V1.0, April edition 2018 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
