- Page 1 Post eVolve Rapid Series Installation & User Manual...
- Page 2 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2021 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 3: Table Of Contents
Here’s your guide to install Post eVolve Rapid 1 — So, Hello! 2 — Before the installation A - Important safety instructions B - Electrical wiring considerations C - Important Electrical Safety Instructions D - EVSE Classification 3 — Overview 4 —... - Page 4 Post eVolve Rapid Manual...
-
Page 5: So, Hello
So, hello! This manual provides commissioning and use instructions information about Post eVolve Rapid, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK... -
Page 6: A Important Safety Instructions
• Do not use this unit for anything other close...). than electric vehicle charging modes are expected in IEC 61851. • Use only Circontrol supplied spare parts. • Do not modify this unit. If modified, CIRCONTROL will reject all • Do not use this unit if the enclosure... -
Page 7: B - Electrical Wiring Considerations
Before installation Electrical wiring considerations Take into consideration this section before start wiring connections of the Charge Point. 1 — E L E C T R I C A L P R O T E C T I O N S Charge point may not include elements of electrical protection. -
Page 8: C Important Electrical Safety Instructions
Post eVolve Rapid Manual Important Electrical Safety Instructions Read carefully all the instructions before starting in order to ensure properly handling of electrical parts. A safe work environment is not enough to control all potential electrical hazards. It is recommended to be very cautious and work safely. So, the safety rules shown below could help to control risks of injury or death from workplace hazards. -
Page 9: Devse Classification
EVSE Classification Classification of the unit according to the IEC 61851-1:2017: 1 — Power supply Input • EV supply equipment connected to AC supply network • Permanently connected 2 — Power supply Output • DC EV supply equipment 3 — Environmental conditions •... - Page 10 Post eVolve Rapid Manual What’s included: Installation & Charge Point User Manual Electric cabinet key + Foundation security key...
-
Page 11: Overview

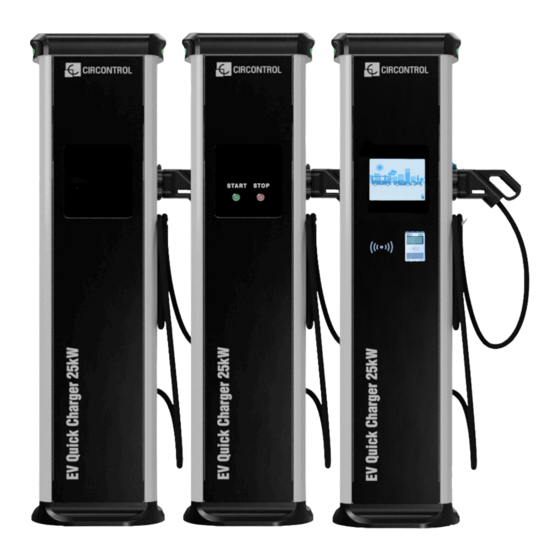

Overview Satellite Serie Basic Serie Master Serie 1 — Hat 6 — Ventilation 11 — Cable gland 2 — LED beacon light 7 — Base 12 — Screen 3 — Holder 8 — Start button 13 — RFID reader 4 — Cable 9 —... - Page 12 Post eVolve Rapid Manual...
-
Page 13: Dimensions
Dimensions Measures in mm... - Page 14 Post eVolve Rapid Manual What is needed: Nuts DIN 934 M16 Washers DIN 9021 M16 Templates Foundation bolts...
-
Page 15: Installation
Installation Space requirements When installing the unit, respect the minimum distances for maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. •... -
Page 16: B Foundation
Post eVolve Rapid Manual Foundation • Place the foundation bolts into the template using the provided nuts with the help of a 24mm open-end wrench. • Once the kit is assembled, it must be placed in the ground taking into consideration the following measures. -
Page 17: C Opening
Opening 1. Introduce provided eVolve Rapid security key in the lock located at the mid part of the unit and the electric cabinet key at the top and bottom locks of the unit. Then, the unit is unlocked and ready to be opened. 2. -
Page 18: D Positioning
Post eVolve Rapid Manual Positioning Remove the template nuts before proceeding. Place the Charge Point through the four foundation bolts. Make sure that the Charge Point pre-holes of the metal plate match with the cable glands. Post eVolve Rapid can be placed at outdoor or indoor areas to charge electric vehicles. This product series is designed to be placed on the ground. -
Page 19: E Unit Fixation
Unit fixation Firmly tighten the 4 nuts using a 24mm open-end wrench. • Metal plate • It is recommended to install cable glands (not supplied) in pre-holes position. • Assembly metal plate using the 4 supplied screws. -
Page 20: G Wiring
Post eVolve Rapid Manual Wiring THREE-PHASE CHARGE POINT Connect to the 400VAC. Terminal block maximum cross-section: 16mm Type of cable allowed by the terminal block: Aluminium & copper Al/Cu Do not forget to connect the ground cable to the ground terminal Make sure all screws are securely tightened at 4...5 Nm... -
Page 21: H Verification
Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. Pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point. - Page 22 Post eVolve Rapid Manual Go to Master-satellite User Manual in order to know how to use Post eVolve Rapid Master and Satellite version. As detailed in previous chapters, the unit has a LED beacon light and two illuminated buttons, the start and stop ones. The LED beacon light is located in the top of side view where the cable is.
-
Page 23: How To Use Basic Post
How to use Basic Post Charged When the EV is fully charged, it turns to Standby step, in which both LED beacon and start button are green. Stop charging While the unit is in charge status or is completely charged, the user is available to finish the charge pressing the stop button. - Page 24 Post eVolve Rapid Manual General Specifications AC Power Supply 3P + N + PE Master AC Input Voltage 400V +/- 10% Network 10/100TX (TCP-IP) three-phase connection Power Factor > 0.98 Interface protocol OCPP 1.5 / 1.6J / 2.0 HW Ready Efficiency 94% at nominal output power...
-
Page 25: Technical Data
Technical Data Optional devices Wireless communication LATAM/APAC - 4G LTE/GPRS/GSM (only available in Master) Switch TCP ethernet 16 ports Network hub RFID Extension (only available in Master) RFID Extension Legic Advant / Legic Prime ISO 15693 / ISO 18092, Sony FeliCa Contactless payment* Integrated credit card payment terminal *Ask for availability... - Page 26 Post eVolve Rapid Manual...
-
Page 27: Need Help
Need help? In case of any query or further information, please contact our Post-Sales Department support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941... - Page 28 CIRCONTROL Post eVolve Rapid Series Manual A comprehensive guide on how to install and use your eVolve Rapid. V2.3, December edition 2021 R474 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
