Control devices

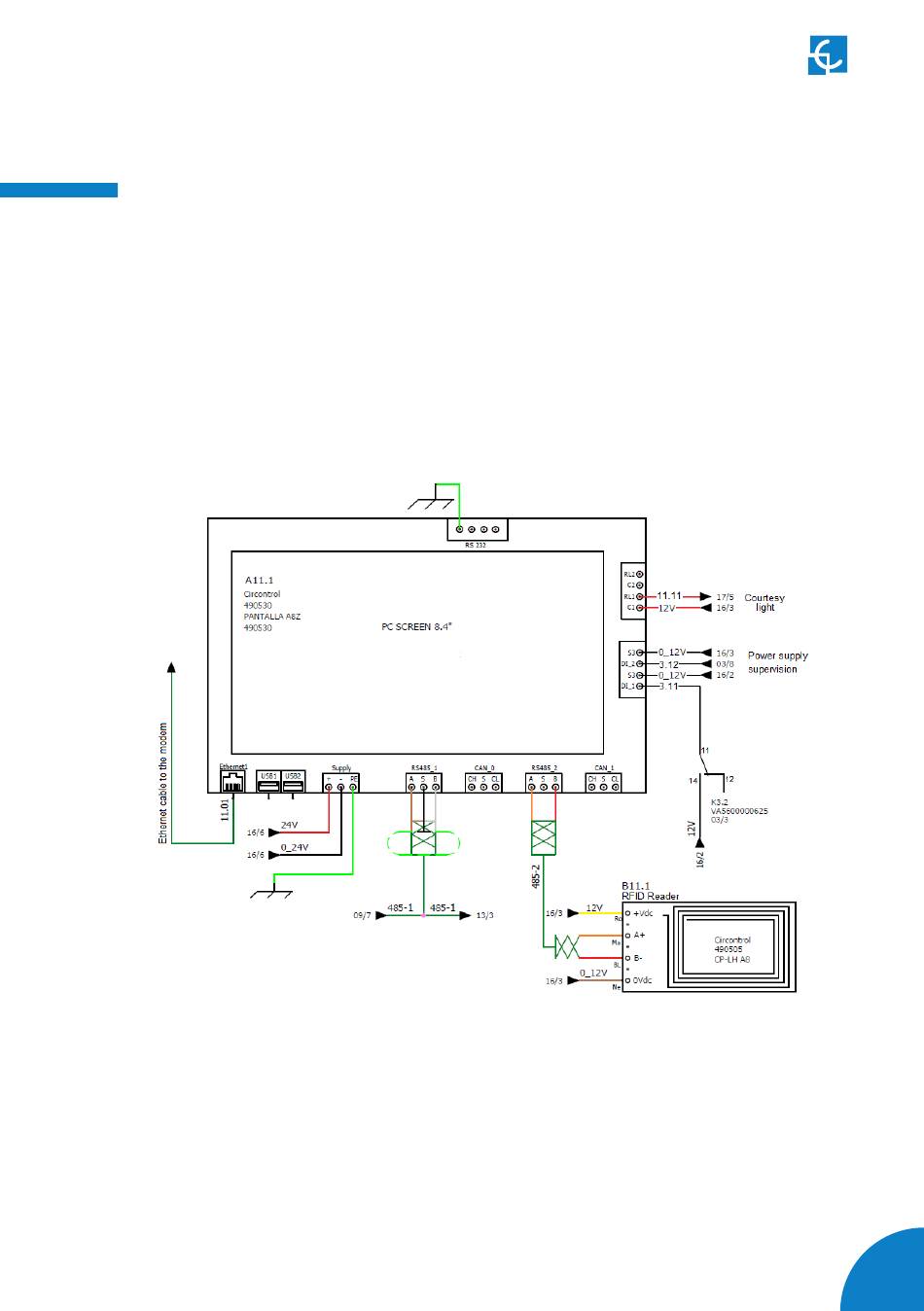

Electrical scheme
Screen has two RS485 connectors. In one of them there is the RFID reader and the
other there is a bus of communicactions with many devices.
RS485 Connector 1:
• Mode 4
• Meter AC
• Contactless payment
RS485 Connector 2:
• RFID Reader
