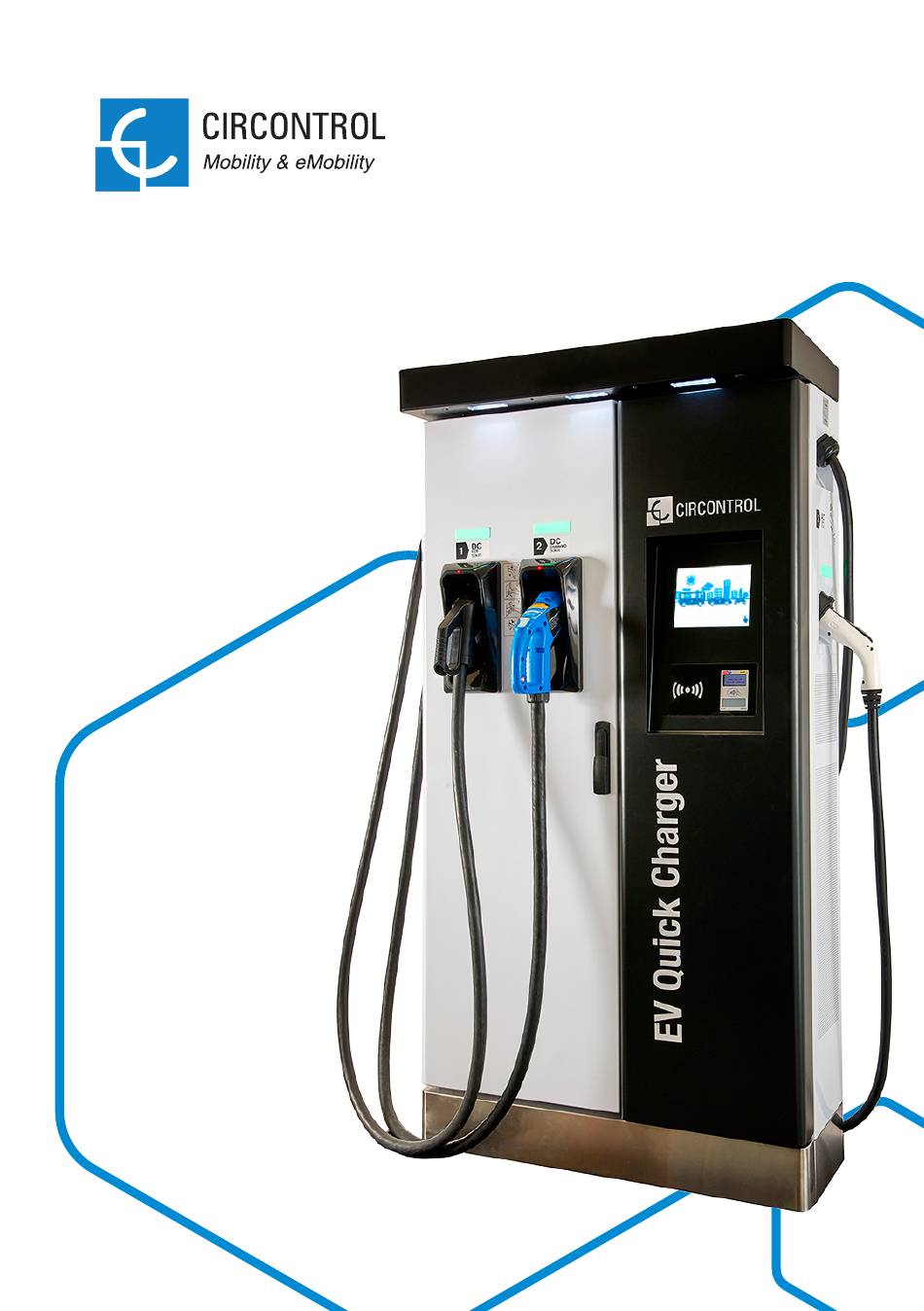

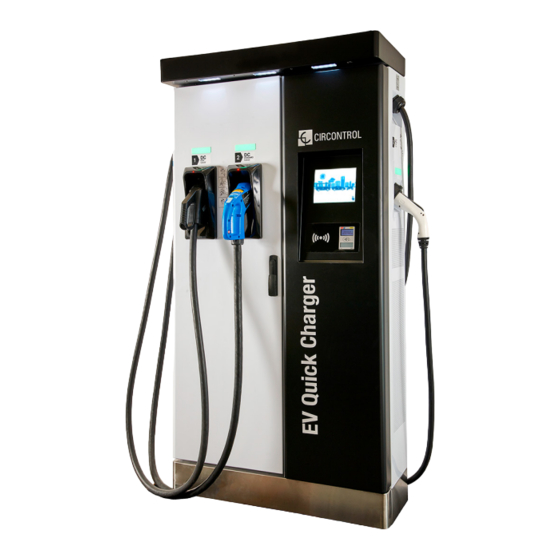

  • Page 1 Raption 50 Raption 51 Raption 52 Raption 100 Quick Start Installation Manual...
  • Page 2 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2021 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
  • Page 3: Table Of Contents

    Here’s your guide to install a Raption 1 — So, Hello! 2 — Before the installation A - Important safety instructions B - What's included 3 — Dimensions and overview A -Dimensions B - Overview 4 — Installation A - Minimum distances B - Foundation C- Placing D - Wiring...
  • Page 4: So, Hello

    It is mandatory to follow the basic security information supplied in this manual to ensure safe and proper installation. Failure to follow safety instructions may involve personal injury, equipment damage and danger of death. CIRCONTROL is not responsible for events arising from such breach.
  • Page 5: Before The Installation

    • Do not use this unit for anything other close...). than electric vehicle charging modes are expected in IEC 61851. • Use only Circontrol supplied spare parts. • Do not modify this unit. If modified, CIRCONTROL will reject all • Do not use this unit if the enclosure...
  • Page 6: B What's Included

    Raption Series Quick Start Installation Manual What’s included CirCarLife RFID Installation Mifare Card Manual Charge Point Access door Key 4x Allen Isolation top screw hat seal (spare) Foundation Kit...
  • Page 7: Dimensions And Overview

    Dimensions and Overview Dimensions • Units specified in milimeters:...
  • Page 8: B - Overview

    Raption Series Quick Start Installation Manual Overview 1- Cover 2- Exit AC cable 3- AC light beacon 4- CHAdeMO connector 5- Air inlet unit 6- Power M. air outlet 7- Decorative front panel 8- Decorative rear panel 9- Handle 10- CHAdeMO holder...
  • Page 9: Installation

    Installation Minimum distances When installing the Charge Point, respect the minimum distances for maintenance and safety reasons. • Do not install near areas where water or fluids can penetrate into the unit. • Do not install the Charge Point on unstable terrain. (*) Respect the minimum lateral distance to allow proper circulation of air flow.
  • Page 10: B Foundation

    Raption Series Quick Start Installation Manual Foundation The purpose of this chapter is the technical definition and basic requirements for implementing the base and fixing the Charge Point. • A foundation kit with a mounting template is provided to ensure the distances between the foundation bolts.
  • Page 11 FOUNDATION MEASUREMENTS ORIENTATIONAL FOUNDATIONS FOR RAPTION TYPE OF TERRAIN FOUNDATION SIZE COMMENTS (kg/cm (Az x Bz x Hz) cm SOFT 110 x 60 x 65 For example vegetal not compact terrain COMPACT 110 x 55 x 55 For example mix vegetable land with engraved compactors VERY COMPACT 110 x 55 x 50...
  • Page 12: C Placing

    Raption Series Quick Start Installation Manual Placing In order to place the Charge Point in its final location, please follow the next steps: 1 — R E M O V I N G T H E C H A R G E P O I N T F R O M PA L L E T The Charge Point is mounted on a pallet so as to do a safe transport.
  • Page 13: D Wiring

    b) Move the Charge Point with manual forklift or forklift truck . Steps: 1- Remove the decorative rear panel. Pull outward the metal flange (on both sides). 2- Move out the metal flange (on both sides) and remove the decorative rear panel. Wiring Regardless of the electrical characteristics of the power line, be sure to supply to the Charge Point with the necessary electrical features indicated at the unit characteristics...
  • Page 14 In the case of not using this metal plate and any damage to internal components arises due to the entry of dirt, animals or any other external element, Circontrol will reject any warranty claim against the unit: Steps: 1- Locate the power input entrance in the bottom of the Charge Point.
  • Page 15 In the case of not using this metal plate and any damage to internal components arises due to the entry of dirt, animals or any other external element, Circontrol will reject any warranty claim against the unit: Steps: 1 - In this case, the metal plate is...
  • Page 16 Raption Series Quick Start Installation Manual Power input connection - Connecting cable - Raption 50: 1- Use the M8 screw and washer provided in order to connect the electric terminals. The maximum tightening torque has to be 13 Nm. 2- Use a M8 metallic electric terminal aligned with the required cable cross section according to the power of the Charge Point (Max.
  • Page 17 Power input connection - Connecting cable - Raption 50 480Vac: 480 V 208-240 V Power Circuit Control Circuit 1- Use the M8 screw and washer provided in order to connect the electric terminals. The maximum tightening torque is 13Nm 2- Use a M8 metallic electric terminal aligned with the required cable cross section according to the power of the Charge Point (Max.
  • Page 18 Raption Series Quick Start Installation Manual MODEL SPECIFICATIONS CCS1 CHA CCS1 T1C32 CCS1 CHA T1C32 480/277 V 208/240 V 480/277 V 208/240 V 480/277 V 208/240 (III) (II) (III) (II) (III) V (II) Minimum recommended 25 mm2 10 mm2 25 mm2...
  • Page 19 Power input connection - Connecting cable -Raption 100*: (*) Use also this connection and sectional area when Raption 52 upgraded up to 100kW.
  • Page 20 Raption Series Quick Start Installation Manual Notes: 1- It is highly recomened to move the power supply wiring insertion to the right, in order to aling the cables with its connection to the terminal block. 2- Use the M10 screw and washer provided in order to connect the electric terminals. The maximum tightening torque is 20Nm.
  • Page 21 Install according to Raption 100 model specifications table (see below Power input connection - Connecting cable - Rap tion 100 section ). When using Raption 51/Raption 52 power input wiring con nection with 100kW power, Circontrol will reject any warranty claim against the unit.
  • Page 22 Raption Series Quick Start Installation Manual Charge Point ethernet connection - Raption 50 / Raption 51 / Raption 52 / Raption 100: In case of the Charge Point is decided to be connected via ethernet, it is necessary to install a switch device (recommended a 5-port 10/100 Mbps ethernet switch, code 490514).
  • Page 23: E - How To Use And Configure It

    In order to use and configure the Charge Point there is an User Manual. It is necessary to be registered with the Circontrol Expert Area: http://expertarea.circontrol.com Note: ask to the Circontrol PS-Support department in order to register with the Circontrol Expert Area: support@circontrol.com...
  • Page 24 CIRCONTROL Raption series QUICK START INSTALLATION MANUAL A comprehensive guide on how to install and verify your Raption Charging Station. V1.3, January edition 2022 R483 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
