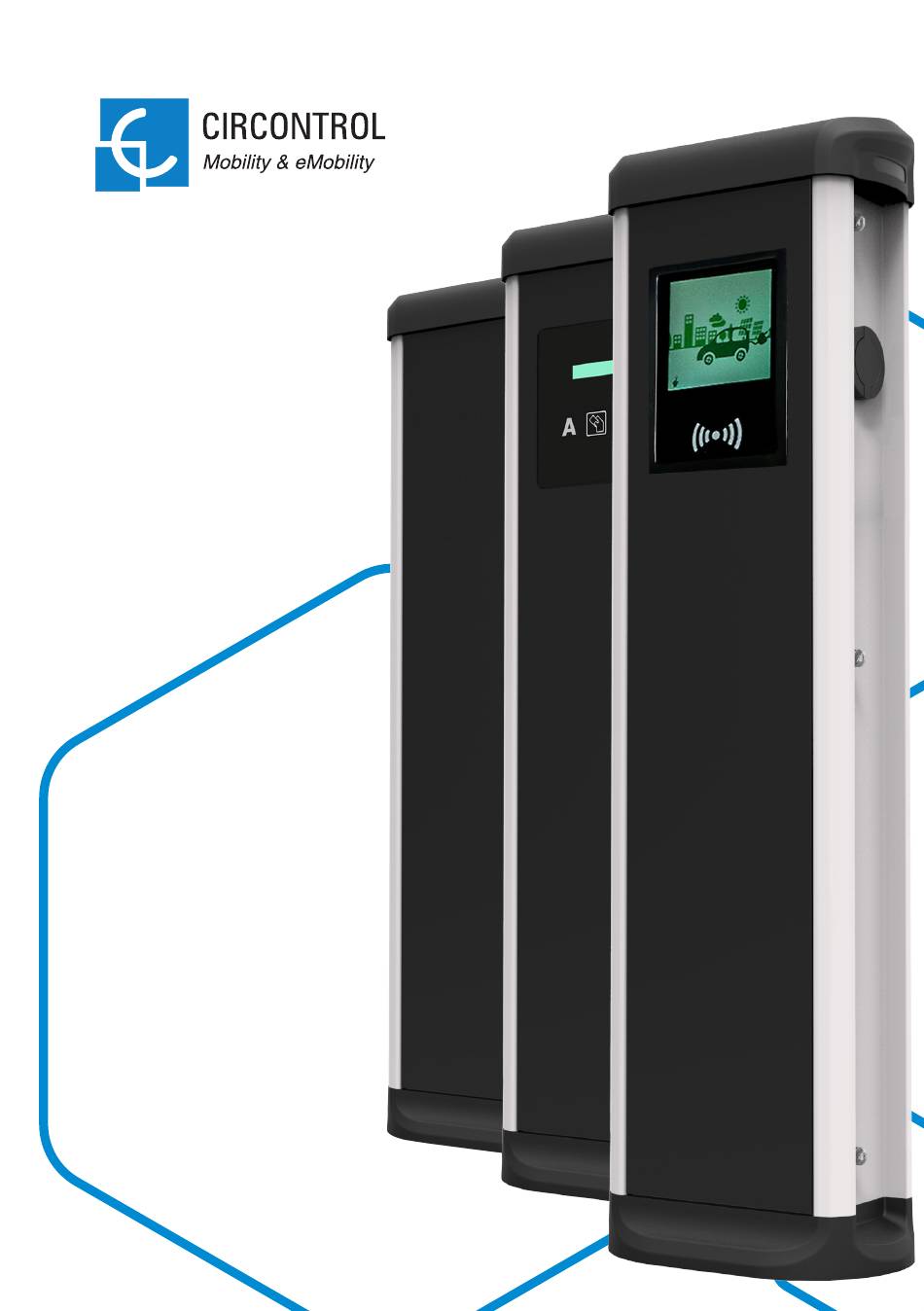

Page 1 Post eVolve Series Installation Manual...
Page 2 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2018 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
Page 3: Table Of Contents
Here’s your guide to install eVolve. 1 — So, hello! 2 — Before the 5 — Installation installation 6 — Technical 3 — Overview Data 4 — Dimensions 7 — Need Help?
Page 4 Post eVolve Series Installation Manual...
Page 5: So, Hello
So, hello! This manual provides commissioning information about CIRCONTROL Charge Points, which have been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT...
Page 6 Post eVolve Series Installation Manual I M P O R TA N T S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before starting in or- der to ensure properly installation of the charge point.
Page 7: Before The Installation
Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the charge point.
Page 8 Post eVolve Series Installation Manual What’ s included: Charge Master Point Installation CirCarLife RFID Manual eVolve Post Key Foundation Kit...
Page 9: Overview

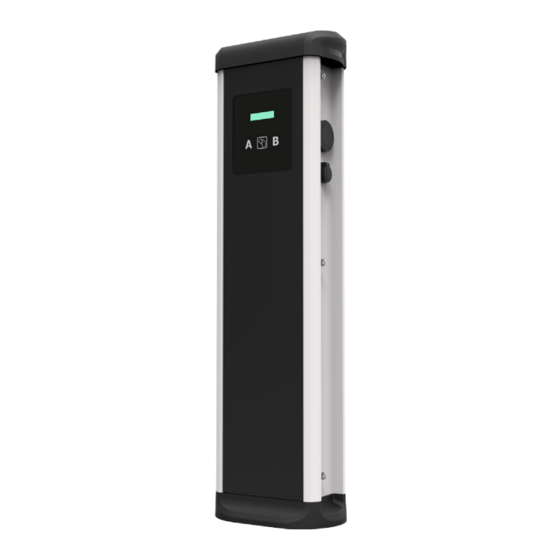

Overview Master Serie Smart Serie Slave & Basic Serie 1 — Hat 4 — RFID Reader 7 — Key lock access 2 — LED Beacons 5 — Touch screen TFT 8” 8 — Base 3 — Display LCD 6 — Plugs* (*) Plugs may vary depending on the model...
Page 10 Post eVolve Series Installation Manual 1544 1351 Measures in mm...
Page 11: Dimensions
Dimensions Minimum Distances When installing the unit, respect the minimum distances space for maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. •...
Page 12 Post eVolve Series Installation Manual Foundation Kit: Nuts DIN 934 M16 Washers DIN 9021 M16 Templates Foundation bolts...
Page 13 Foundation • Place the foundation bolts into the template using provided nuts with the help of a 24mm open-end wrench. • Once the kit is assembled, it must be placed in the ground taking into consideration the following measures. Side view Front view Measures in mm Note: In the event of any doubt about the terrain regarding the installation of this...
Page 14 Post eVolve Series Installation Manual Opening 1. Use provided key in order to open the unit. 2. Pull outward the Tamper switch* to operate the charge point. (*) Tamper Switch: The Charge Point has a security switch (antitamper protection) installed that will avoid any charging session if the doors are opened.
Page 15: Installation
Installation Positioning Remove the template nuts before proceeding. Place the charge point through the four foundation bolts. Consider that charge point pre-holes of the metal plate matches with cable glands. Post eVolve charge point series can be placed at outdoor or indoor areas to charge electric vehicles.
Page 16 Post eVolve Series Installation Manual Fixation Firmly tighten the 4 nuts using a 24mm open-end wrench. •...
Page 17 Metal plate • It is recommended to install a cable glands (not supplied) in pre-holes position. • Assembly metal plate using the 4 supplied screws.
Page 18 Post eVolve Series Installation Manual Wiring SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT Connect to the 230VAC. • • Connect to the 400VAC. • If the Power Supply is Single- Phase, connect L1 and N. • Use provided cable glands in order •...
Page 19 Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point.
Page 20 Post eVolve Series Installation Manual DATA GENERAL SPECIFICATIONS Light beacon RGB Colour indicator Enclosure rating IP54 / IK10 Enclosure material Aluminium & ABS Enclosure door Frontal key locked door Net weight 55Kg Dimensions (W x H x D) 450 x 1550 x 290 mm...
Page 21: Technical Data
Technical Data GENERAL DATA MODELS Touch screen 8" Display LCD Multi-language RFID reader ISO / IEC 14443A/B MIFARE Classic/Desfire EV1 ISO 18092 / ECMA-340 NFC 13.56MHz Meter MID Class 1 - EN50470-3 Ethernet 10/100BaseTX (TCP-IP) Modem 3G / GPRS / GSM Cellular Modem 4G LTE/WiFi Hotspot/GRPS/GSM Interface protocol...
Page 22 Post eVolve Series Installation Manual...
Page 23: Need Help
Need help? In case of any query or need further information, please contact our Post-Sales Department ps-support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941...
