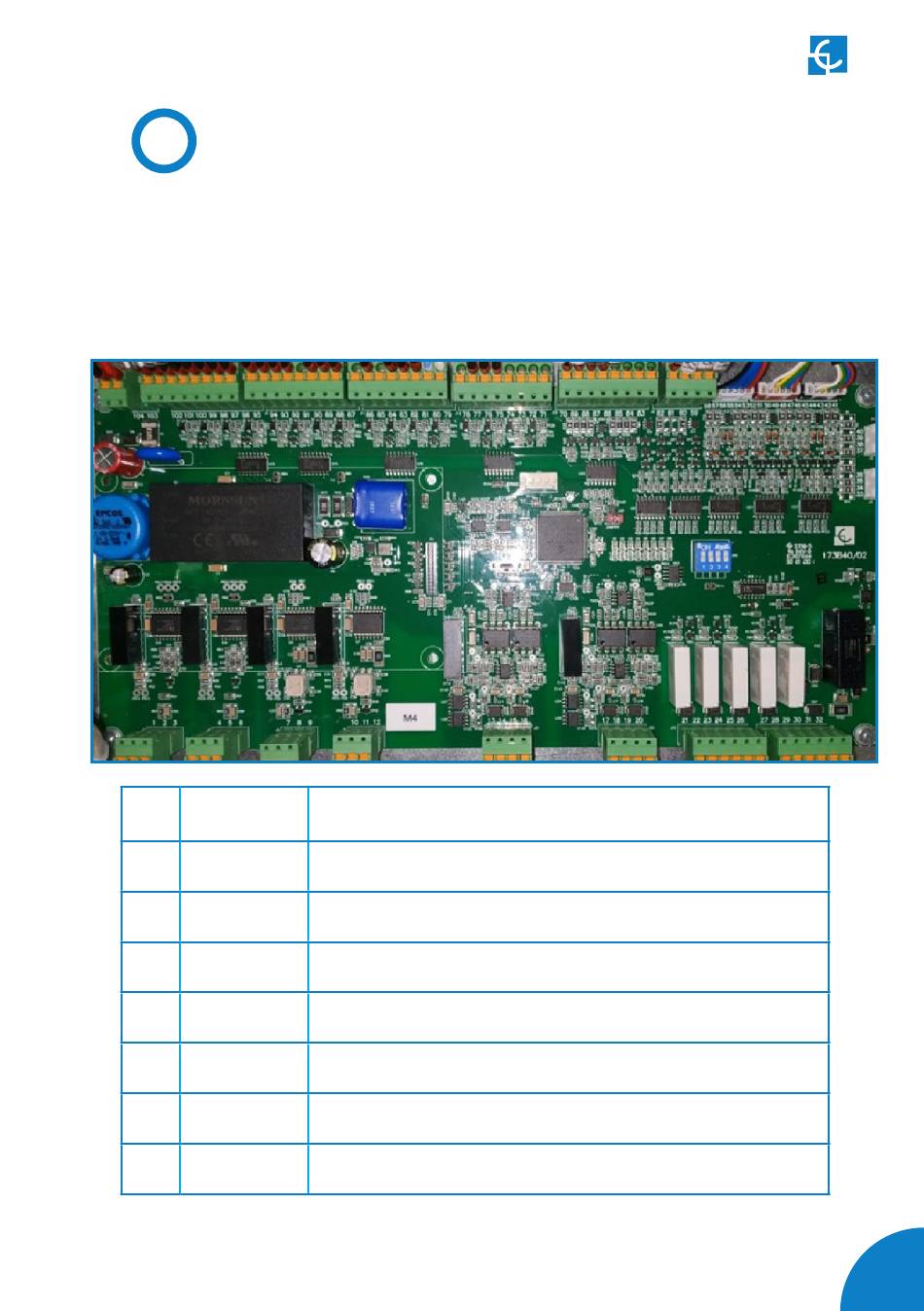

B Mode 4 Board
Mode 4 board is controlling the communications of the Charging Station with the
Electric vehicle.
Also, most of the alarms like the emergency button, isolation protectors or clixon
are managed by this board.
Item Name
1 J1
2 J13
3 J11
4 J9
5 J10
6 J23
7 J4
Power supply connector, 12Vdc
Inputs for Emergency, VCC; Lock CCS and Lock CHA
Inputs for Clixon, tamper and Isolation Detection
Inputs for Tacometer, relay state CHA, Precharge state CCS
Inputs for Opto (J) and relays state of CCS
Outputs PWM turbines control
Leds lock system
Function
