Ventilation system
Raption is equipped with some fans in order to keep a safe temperature thorugh
different sections of it.

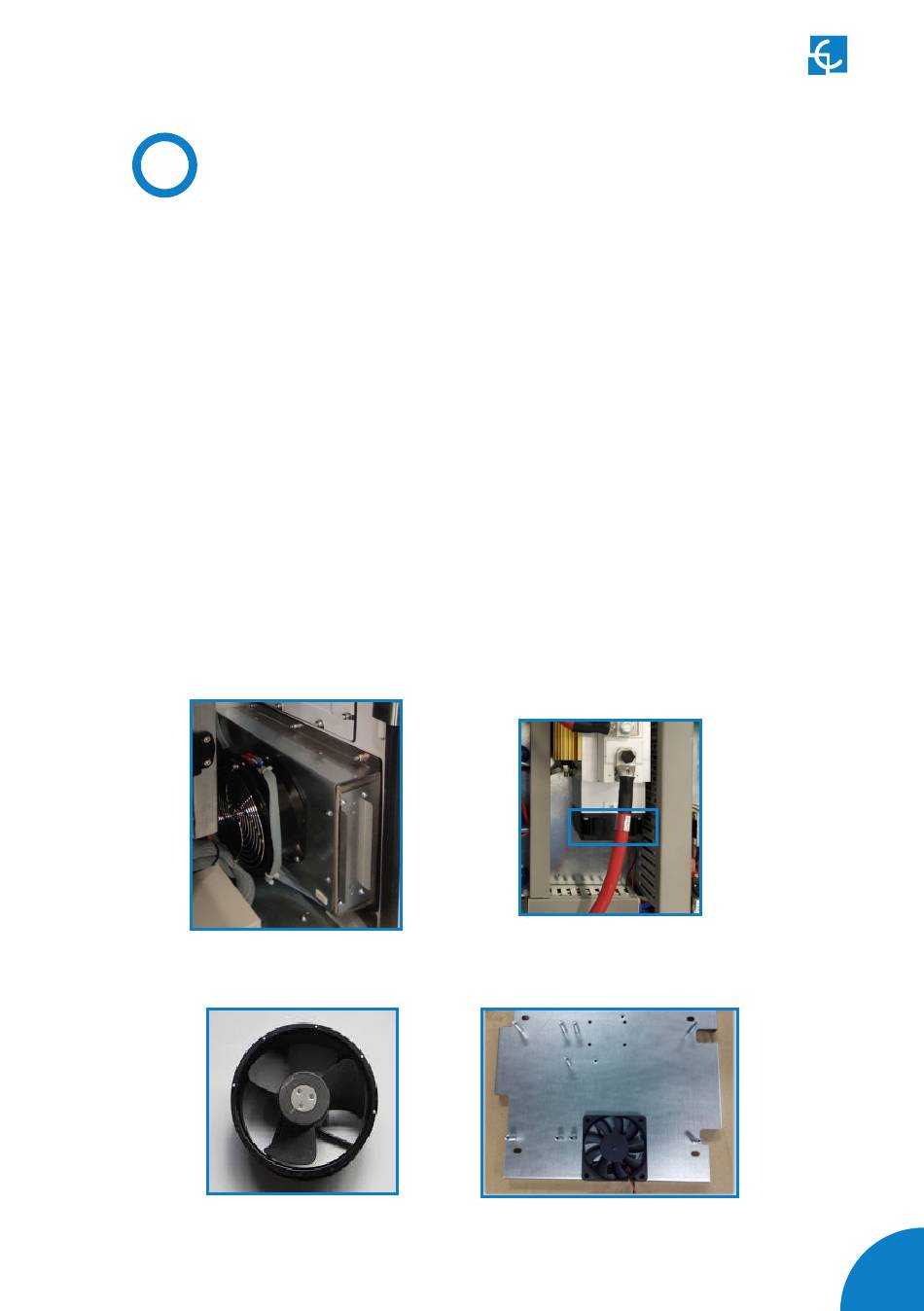

There are 9 fans in the Charge Station:
A
On the housing (M111.1 / M112.1 / M112.2 / M113.1)
B
On the Backflow diode (M145.1 / M145.2)
C
In the Power modules number 1, 2 and 3 (M114.1)
D
In the Power modules number 1, 2 and 3 (M114.2)
E
In the A8 screen (M241.1)
Screen/s's fan is working always. The other 3 fas will work while Charge Point has
an active charge transaction in DC side or temperature is higher than 50ºC.
A
C & D
B
E
